Removal Procedure

  1. GM5071211Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Stowage Trim Compartment (2) - Remove - Rear Compartment Floor Stowage Trim Compartment Replacement

  2. GM6219172Courtesy of GENERAL MOTORS COMPANY

    Electronic Suspension Control Module (2) - Remove - Suspension Control Module Replacement

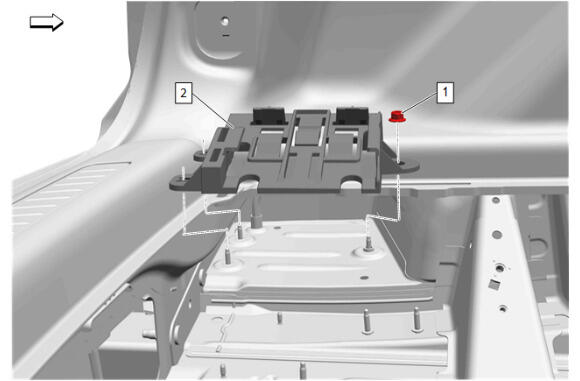

  3. GM6219173Courtesy of GENERAL MOTORS COMPANY

    Electronic Suspension Control Module Bracket Nut (1) - Remove

  4. Electronic Suspension Control Module Bracket (2) - Remove
