Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Front Wheelhouse Liner (1) - Remove - Front Wheelhouse Liner Replacement
Courtesy of GENERAL MOTORS COMPANY

Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod.
Steering Linkage Inner Tie Rod Nut (1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

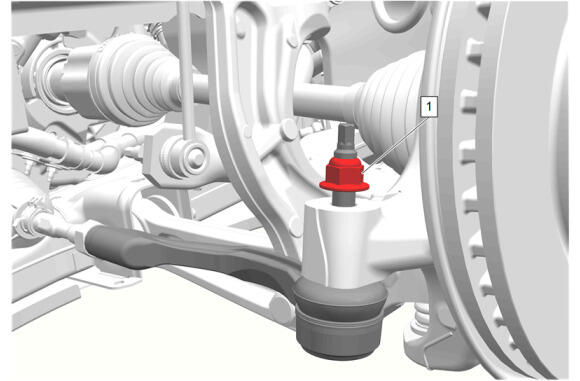

Steering Linkage Outer Tie Rod Nut (1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.

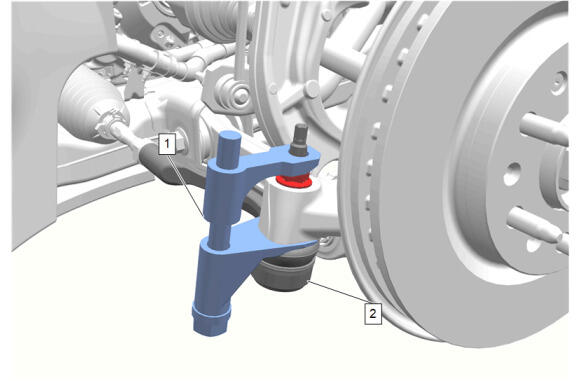

Using CH-42188-B Ball Joint Separator (1), separate the steering linkage outer tie rod (2) from the steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

Steering Linkage Outer Tie Rod Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Linkage Outer Tie Rod (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Linkage Inner Tie Rod Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Gear Boot Clamp - Outer (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

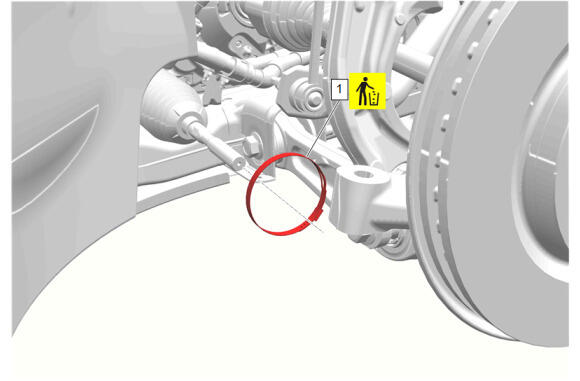

Steering Gear Boot Clamp - Inner (1) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Steering Gear Boot (1) - Remove
