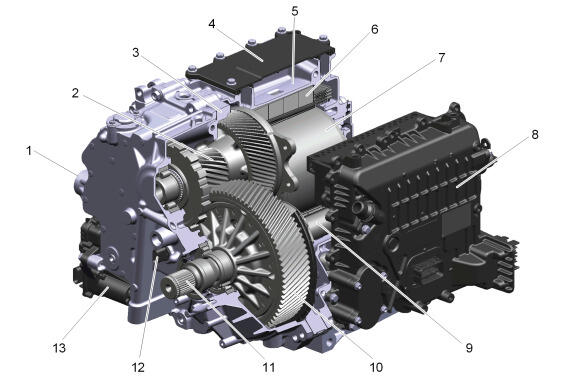

Component Location
| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Case |
| 2 | Automatic Transmission Differential Final Drive Pinion Gear |
| 3 | Center Support |
| 4 | Drive Motor Housing Cover |
| 5 | Drive Motor Housing |
| 6 | Drive Motor Stator |
| 7 | Drive Motor Rotor |
| 8 | Drive Motor Power Inverter Module |
| 9 | Output Shaft- Left Side |
| 10 | Automatic Transmission Differential Carrier |
| 11 | Output Shaft- Right Side |
| 12 | Automatic Transmission Wiring Harness |
| 13 | Manual Shift Shaft Motor |
