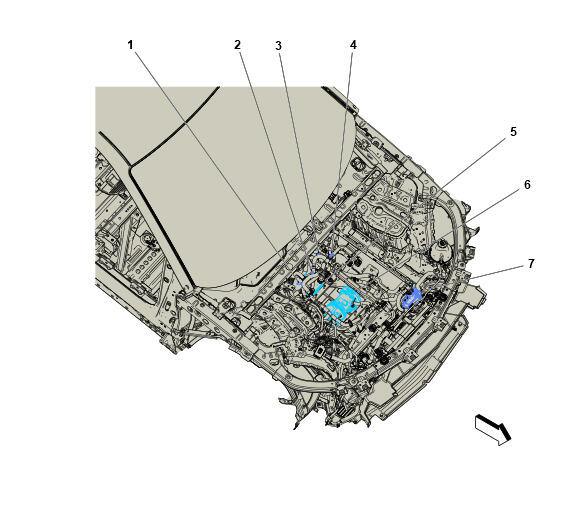

Top right side of Front Powertrain Components (X0D)

Courtesy of GENERAL MOTORS COMPANY

Items
1. B222D Air Conditioning Refrigerant Temperature Sensor 4 B222D Air Conditioning Refrigerant Temperature Sensor 4
2. B388B Hybrid/Propulsion System Coolant Temperature Sensor 2 B388B Hybrid/Propulsion System Coolant Temperature Sensor 2
3. B388C Hybrid/Propulsion System Coolant Temperature Sensor 3 B388C Hybrid/Propulsion System Coolant Temperature Sensor 3
4. B388D Hybrid/Propulsion System Coolant Temperature Sensor 4 B388D Hybrid/Propulsion System Coolant Temperature Sensor 4
5. Q112 Air Conditioning Cooler Electronic Expansion Valve Q112 Air Conditioning Cooler Electronic Expansion Valve
6. G1HV Air Conditioning With Motor Compressor G1HV Air Conditioning With Motor Compressor X1 (LHD) , or G1HV Air Conditioning With Motor Compressor X1 (RHD) , or G1HV Air Conditioning With Motor Compressor X2 , or G1HV Air Conditioning With Motor Compressor X3
7. Q117 Hybrid/Electric Vehicle Propulsion System Main Coolant Control Valve Q117 Hybrid/Electric Vehicle Propulsion System Main Coolant Control Valve
