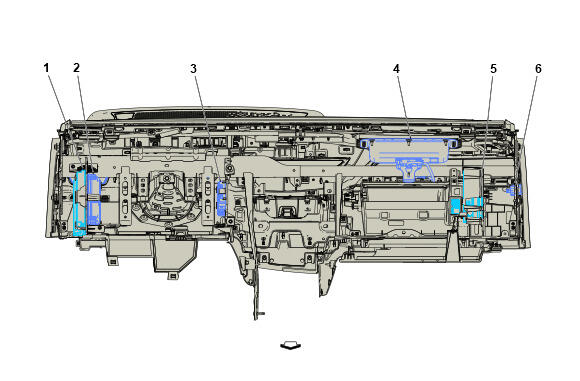

Behind the Instrument Panel Components (RHD)

Courtesy of GENERAL MOTORS COMPANY

Items
1. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 , or K9 Body Control Module X8
2. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2 , or K56 Serial Data Gateway Module X3
3. K180 Driver Monitoring System Module (ULM) K180 Driver Monitoring System Module X1 (ULM) , or K180 Driver Monitoring System Module X2 (ULM)
4. F101 Instrument Panel Airbag F101 Instrument Panel Airbag (AYC) , or F101 Instrument Panel Airbag (AYG)
5. A11 Radio A11 Radio X1 , or A11 Radio X10 (UKR) , or A11 Radio X2 , or A11 Radio X3 , or A11 Radio X4 , or A11 Radio X5 (- (UAS - UKR)) , or A11 Radio X5 (UAS - UKR) , or A11 Radio X6 (UKR) , or A11 Radio X7 (- UKR) , or A11 Radio X7 (UKR) , or A11 Radio X8 (- UKR) , or A11 Radio X9
6. S40 Instrument Panel Airbag Disable Switch (C99) S40 Instrument Panel Airbag Disable Switch (C99)
