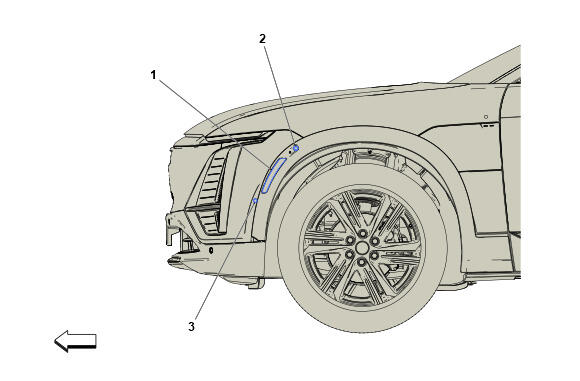

Left Side, Front of Vehicle Components (LHD)

GM6410403Courtesy of GENERAL MOTORS COMPANY
Items
1. E2LF Front Side Marker Lamp - Left (UGD) E2LF Front Side Marker Lamp - Left (UGD)
2. B403L Side View Long Range Object Detection Camera - Left (UKR) B403L Side View Long Range Object Detection Camera - Left (UKR)
3. B166LF Advanced Parking Assist Alarm Sensor - Left Front (UKZ) B166LF Advanced Parking Assist Alarm Sensor - Left Front (UKZ)
