Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Drive Motor Battery Charger Bracket (3) - Install

CAUTION:

Drive Motor Battery Charger Ground Bolt (2) - Install and tighten [2x] - Fastener Specifications
Drive Motor Battery Charger Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Trim Finish Compartment Support (2) - Install
Front Trim Finish Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
Connect the wiring harness retainers.
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Front Sight Shield (2) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Front Compartment Side Sight Shield - Left Side and Right Side (2) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

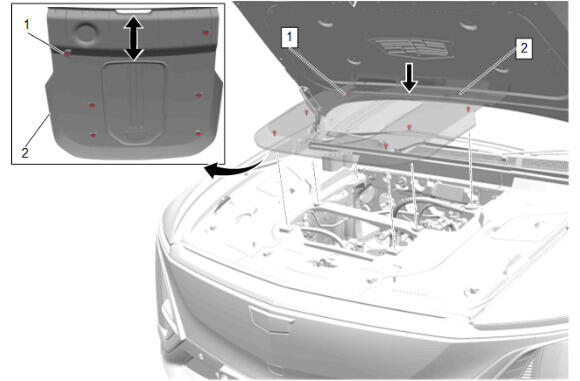

Front Compartment Rear Access Cover (2) - Install
