Installation Procedure
Connect the electrical connector. (1)

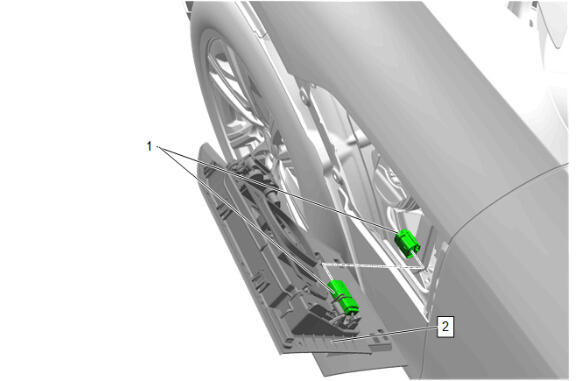

- Charge Port Housing (2) - Install

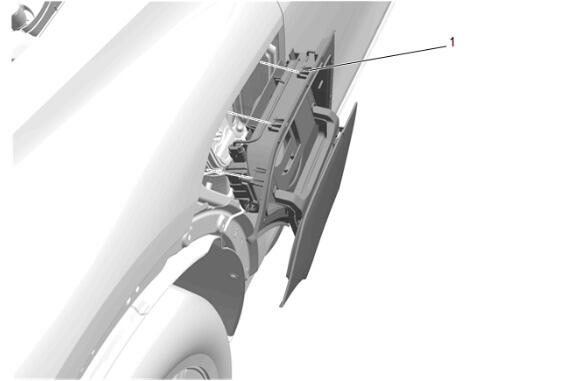

Install the retainers on the lower side of the charge port housing (1) to the fender.
Install the retainers on the top of the charge port housing (1) to the fender.
Charge Port Door (1) - Install
Connect the electrical connector.

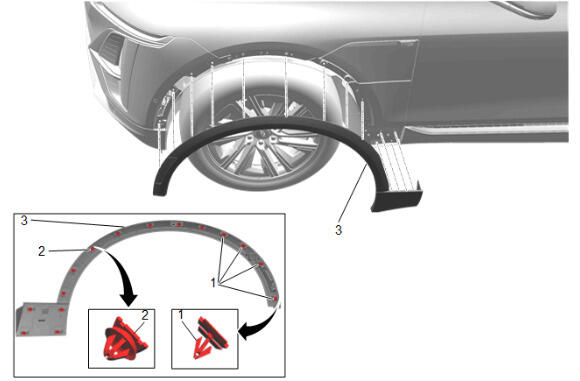

- Front Wheel Opening Molding (3) - Install
- Front Wheel Opening Molding Retainer (2) - Engage [11x]
- Front Wheel Opening Molding Retainer (1) - Engage [4x]
- Remove the double layer of masking tape around the perimeter of the painted surfaces.
- Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
- Connect the battery negative cable. - Battery Negative Cable Disconnection and Connection
