Installation Procedure
Rear Wheel Speed Sensor (3) - Install
- Wheel Speed Sensor Bracket Nut (2) - Install and tighten - Fastener Specifications
- Connect the electrical connector. (1)

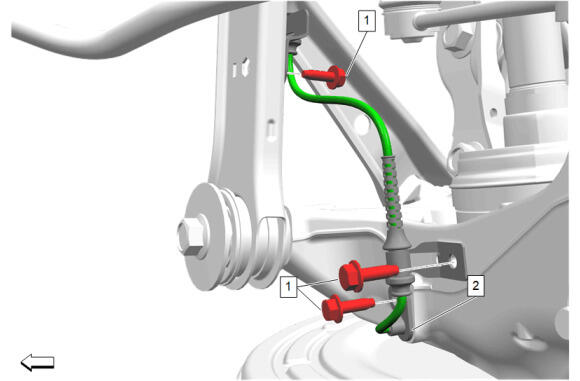

Apply a light coat of wheel speed anti-corrosion grease to the rear wheel speed sensor (2) and mounting pad on the rear suspension knuckle. Adhesives, Fluids, Lubricants, and Sealers
- Rear Wheel Speed Sensor (2) @ Rear Suspension Knuckle - Install
- Rear Wheel Speed Sensor Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
CAUTION:
Refer to Fastener Caution .
