Installation Procedure

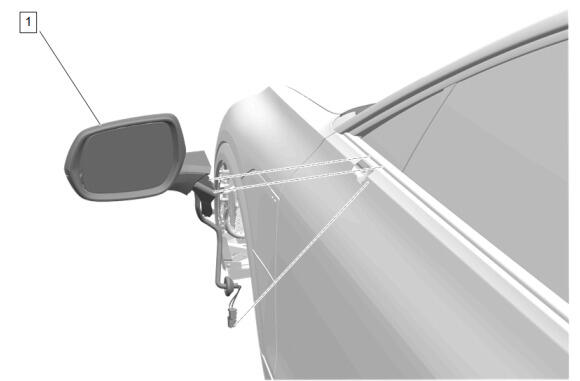

Outside Rearview Mirror (1) - Install
- CAUTION:
Refer to Fastener Caution .
Outside Rearview Mirror Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Connect all electrical connectors.
- WARNING:
When installing the water deflector, ensure that the water deflector is securely fastened to the door inner before installing the door trim. An improper seal of the water deflector against the door inner may affect the ability of the front door pressure sensor to detect a side collision. This may result in improper airbag deployment and could cause bodily injury.
NOTE:When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.
Route the front side door inside handle cable through the hole in front side door water deflector (1) while installing it to the door.
- Front Side Door Water Deflector (1) - Install
- Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
- Enable the SIR System. SIR Disabling and Enabling .
