Fastener Specifications

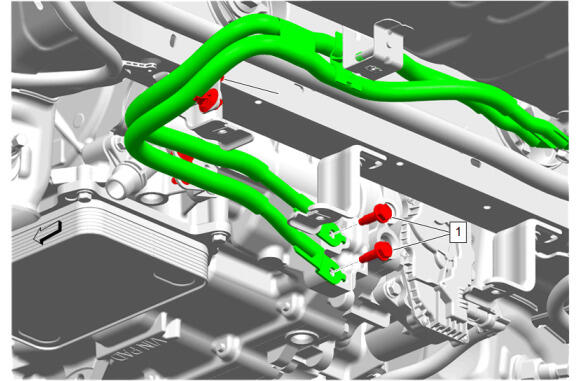

GM6160223Courtesy of GENERAL MOTORS COMPANY
Body Ground Strap Bolt

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Body Ground Strap Bolt [2x] - - 22 N.m (16 lb ft) Rear Suspension Cradle Removal and Installation

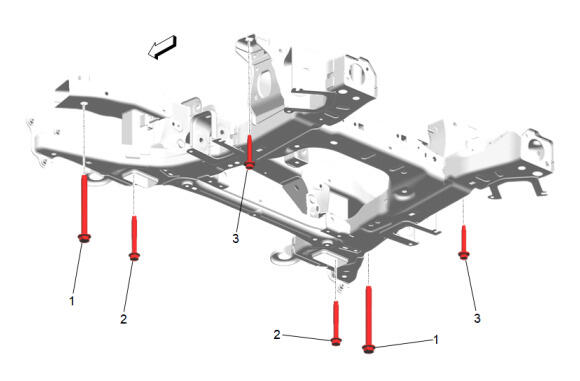

GM5990979Courtesy of GENERAL MOTORS COMPANY
Drivetrain and Front Suspension Cradle (RWL)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drivetrain and Front Suspension Cradle Front Bolt [2x] - - First Pass: 200 N.m (148 lb ft)
Final Pass: 45 - 60 degrees		 Drivetrain and Front Suspension Cradle Removal and Installation (RWL)
2 Drivetrain and Front Suspension Cradle Front Bolt [2x] - - First Pass: 160 N.m (118 lb ft)
Final Pass: 45 - 60 degrees		 Drivetrain and Front Suspension Cradle Removal and Installation (RWL)
3 Drivetrain and Front Suspension Cradle Interior Bolt [2x] - - First Pass: 80 N.m (59 lb ft)
Final Pass: 35 - 45 degrees		 Drivetrain and Front Suspension Cradle Removal and Installation (RWL)
GM5990928Courtesy of GENERAL MOTORS COMPANY

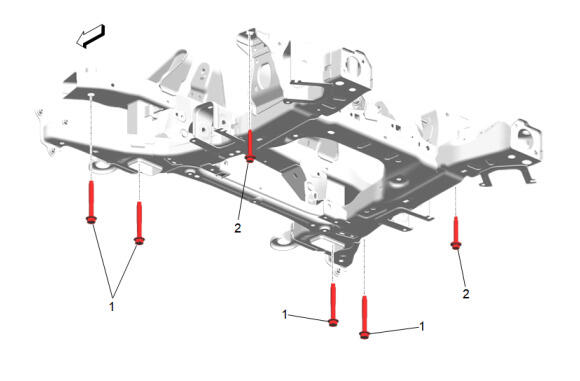

Drivetrain and Front Suspension Cradle (XFD)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drivetrain and Front Suspension Cradle Front Bolt [4x] - - First Pass: 160 N.m (118 lb ft)
Final Pass: 45 - 60 degrees		 Drivetrain and Front Suspension Cradle Removal and Installation (XFD)
2 Drivetrain and Front Suspension Cradle Interior Bolt [2x] - - First Pass: 80 N.m (59 lb ft)
Final Pass: 35 - 45 degrees		 Drivetrain and Front Suspension Cradle Removal and Installation (XFD)

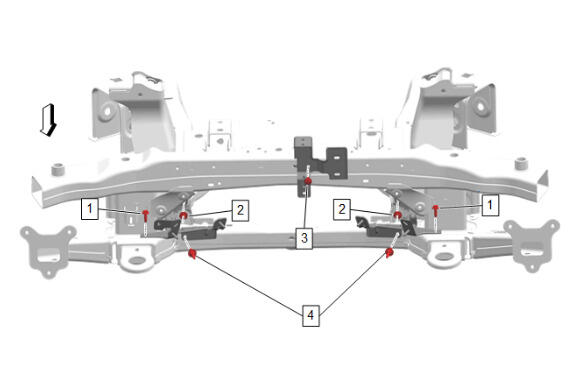

GM6001783Courtesy of GENERAL MOTORS COMPANY
Drivetrain and Front Suspension Cradle (RWL) (Front Coolant Plumbing Bracket Nuts and Bolts)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater Coolant Pump Bracket Bolt [2x] - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (RWL)
2 Heater Water Auxiliary Pump Bracket Nut [2x] - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (RWL)
3 Radiator Outlet Hose Bracket Bolt - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (RWL)
4 Drive Motor Battery Coolant Cooler Stud [2x] - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (RWL)
Fig 1: Identifying Drivetrain And Front Suspension Cradle Front Coolant Plumbing Bracket Component Fasteners (XFD)
GM5990828Courtesy of GENERAL MOTORS COMPANY

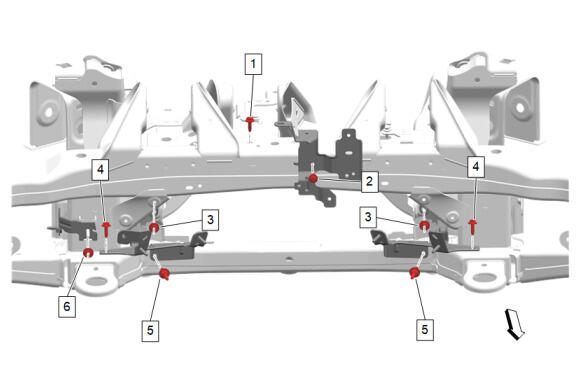

Drivetrain and Front Suspension Cradle (XFD) (Front Coolant Plumbing Bracket Nuts and Bolts)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Charger Inlet Hose Bracket Bolt - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (XFD)
2 Radiator Outlet Hose Bracket Bolt - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (XFD)
3 Heater Water Auxiliary Pump Bracket Nut [2x] - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (XFD)
4 Heater Coolant Pump Bracket Bolt [2x] - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (XFD)
5 Drive Motor Battery Coolant Cooler Stud [2x] - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (XFD)
6 Heater Outlet Hose Bracket Nut - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (XFD)

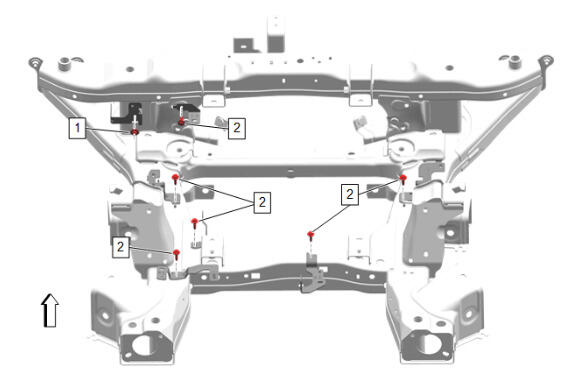

GM6001758Courtesy of GENERAL MOTORS COMPANY
Drivetrain and Front Suspension Cradle (RWL) (Rear Coolant Plumbing Bracket Nut and Bolts)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater Outlet Hose Bracket Nut - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (RWL)
2 Drive Motor Control Module Radiator Outlet Hose Bracket Bolt [6x] - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (RWL)
Fig 2: Identifying Drivetrain And Front Suspension Cradle Rear Coolant Plumbing Bracket Component Fasteners (XFD)

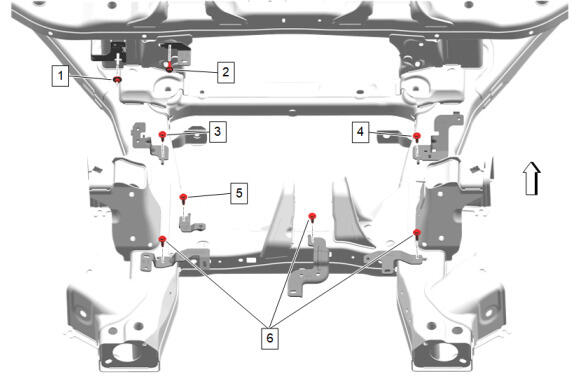

GM5990871Courtesy of GENERAL MOTORS COMPANY
Drivetrain and Front Suspension Cradle (XFD) (Rear Coolant Plumbing Bracket Nut and Bolts)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater Outlet Hose Bracket Nut - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (XFD)
2 Heater Hose Clip Bracket Bolt - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (XFD)
3 Heater Inlet Pipe Bracket Bolt - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (XFD)
4 Drive Motor Battery Charger Inlet Hose Bracket Bolt - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (XFD)
5 Radiator Outlet Hose Bracket Bolt - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (XFD)
6 Drive Motor Control Module Radiator Outlet Hose Bracket Bolt [3x] - - 9 N.m (80 lb in) Drivetrain and Front Suspension Cradle Replacement (XFD)

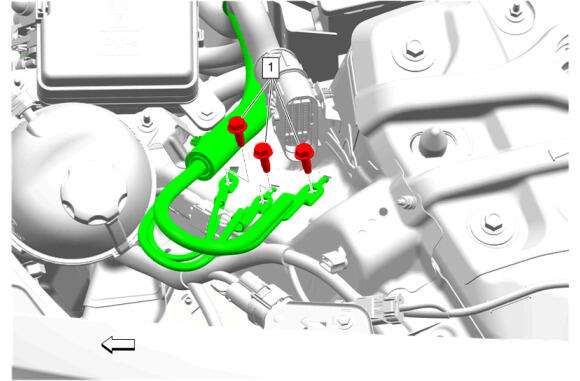

GM5991767Courtesy of GENERAL MOTORS COMPANY
Engine Wiring Harness Ground Bolt

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Wiring Harness Ground Bolt [3x] - - 22 N.m (16 lb ft) Drivetrain and Front Suspension Cradle Removal and Installation (RWL) , or Drivetrain and Front Suspension Cradle Removal and Installation (XFD)

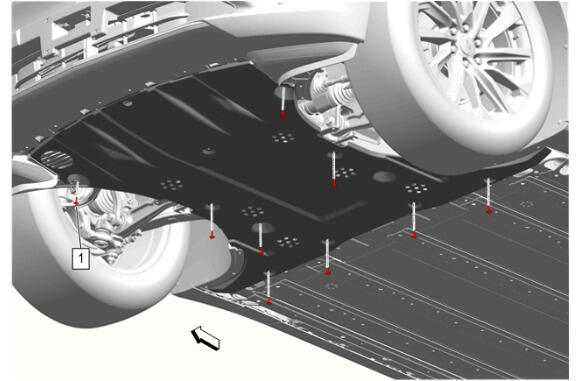

GM5992646Courtesy of GENERAL MOTORS COMPANY
Front Compartment Insulator

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Front Air Deflector Bolt [9x] - - 2.5 N.m (22 lb in) Front Compartment Insulator Replacement
GM5950733Courtesy of GENERAL MOTORS COMPANY
Front Cradle Mount Bolt Bracket

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drivetrain and Front Suspension Cradle Rear Bolt - - First Pass: 200 N.m (148 lb ft)
Final Pass: 45 - 60 degrees		 Front Cradle Mount Bolt Bracket Replacement
2 Front Cradle Mount Bolt Bracket Bolt [2x] - - First Pass: 160 N.m (118 lb ft)
Final Pass: 45 - 60 degrees		 Front Cradle Mount Bolt Bracket Replacement

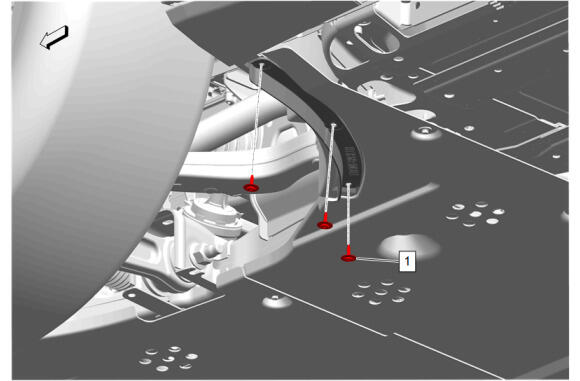

GM5931967Courtesy of GENERAL MOTORS COMPANY
Front Tire Front Air Deflector

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheelhouse Liner Bolt [3x] - - 2.5 N.m (22 lb in) Front Tire Front Air Deflector Replacement - Rear

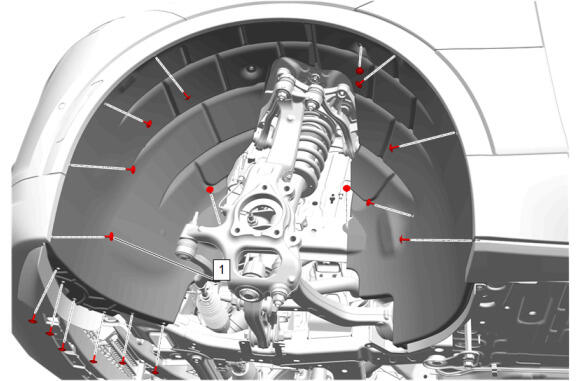

GM5980077Courtesy of GENERAL MOTORS COMPANY
Front Wheelhouse Liner

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Wheelhouse Liner Bolt [17x] - - 2.5 N.m (22 lb in) Front Wheelhouse Liner Replacement

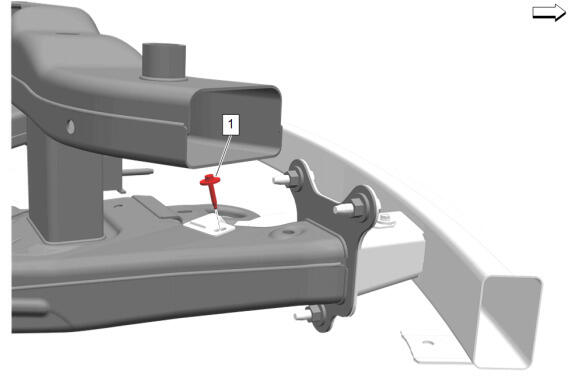

GM6187062Courtesy of GENERAL MOTORS COMPANY
Pedestrian Sound Alert Speaker Bracket Bolt at Drivetrain and Front Suspension Cradle

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Pedestrian Sound Alert Speaker Bracket Bolt - - 2.5 N.m (22 lb in) Drivetrain and Front Suspension Cradle Replacement (RWL) , or Drivetrain and Front Suspension Cradle Replacement (XFD)

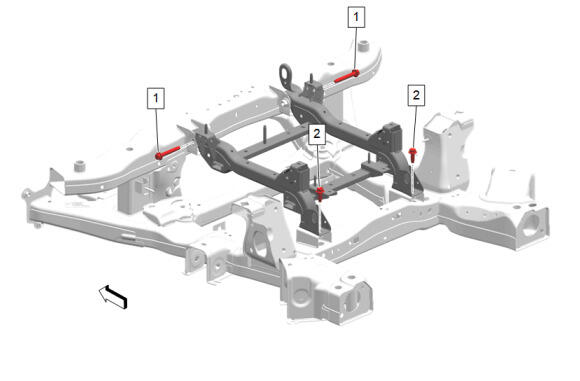

GM5991880Courtesy of GENERAL MOTORS COMPANY
Power Electric Carrier Frame

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Power Electric Carrier Frame Bolt [2x] - - 58 N.m (43 lb ft) Power Electric Carrier Frame Replacement
2 Power Electric Carrier Frame Bolt [2x] - - 58 N.m (43 lb ft) Power Electric Carrier Frame Replacement

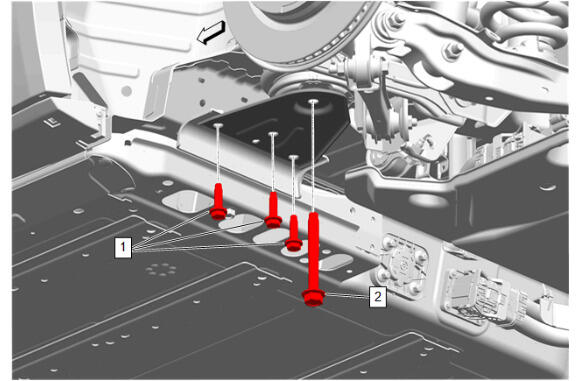

GM5950741Courtesy of GENERAL MOTORS COMPANY

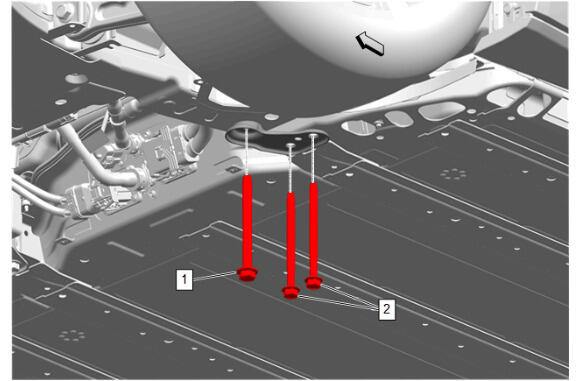

Rear Cradle Mount Bolt Bracket

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Cradle Mount Bolt Bracket Bolt [3x] - - 58 N.m (43 lb ft) Rear Cradle Mount Bolt Bracket Replacement
2 Rear Suspension Cradle Rear Bolt - - First Pass: 200 N.m (148 lb ft)
Final Pass: 45 - 60 degrees		 Rear Cradle Mount Bolt Bracket Replacement
GM5990986Courtesy of GENERAL MOTORS COMPANY

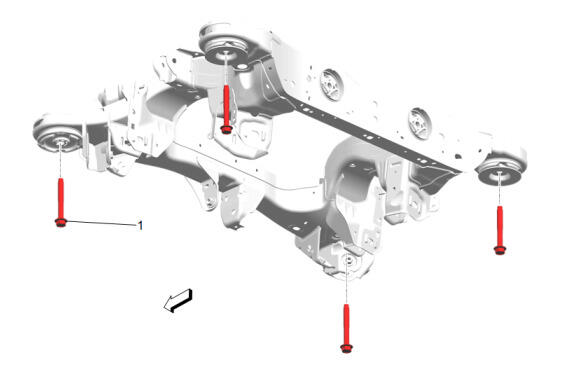

Rear Suspension Cradle

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Suspension Cradle Rear Bolt [4x] - - First Pass: 200 N.m (148 lb ft)
Final Pass: 45 - 60 degrees		 Rear Suspension Cradle Removal and Installation

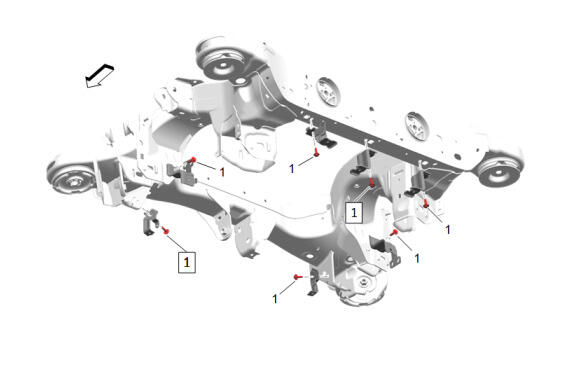

GM6193349Courtesy of GENERAL MOTORS COMPANY
Rear Suspension Cradle (Underbody Rear Air Deflector Bracket Bolt)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Rear Air Deflector Bracket Bolt [7x] - - 9 N.m (80 lb in) Rear Suspension Cradle Removal and Installation
GM5925816Courtesy of GENERAL MOTORS COMPANY

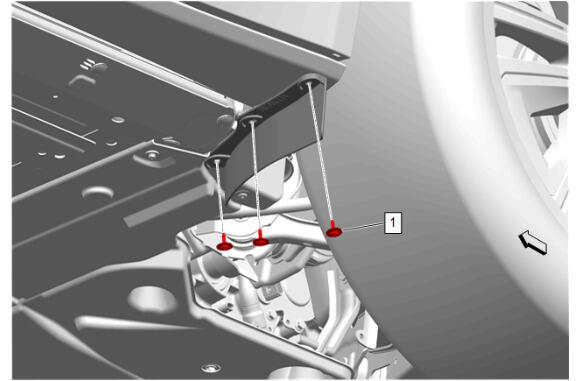

Rear Tire Front Air Deflector

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Tire Front Air Deflector Bolt [3x] - - 2.5 N.m (22 lb in) Rear Tire Front Air Deflector Replacement
GM5947877Courtesy of GENERAL MOTORS COMPANY

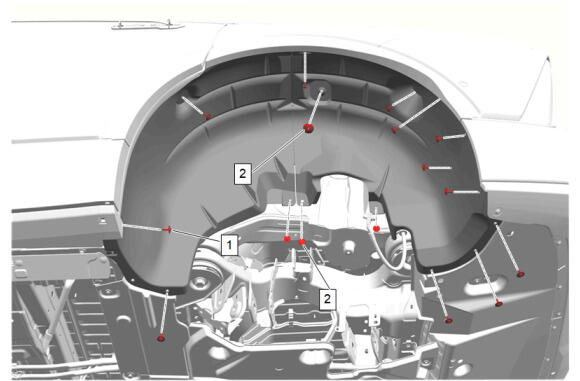

Rear Wheelhouse Liner

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Wheelhouse Liner Bolt [14x] - - 2.5 N.m (22 lb in) Rear Wheelhouse Liner Replacement
GM6013891Courtesy of GENERAL MOTORS COMPANY

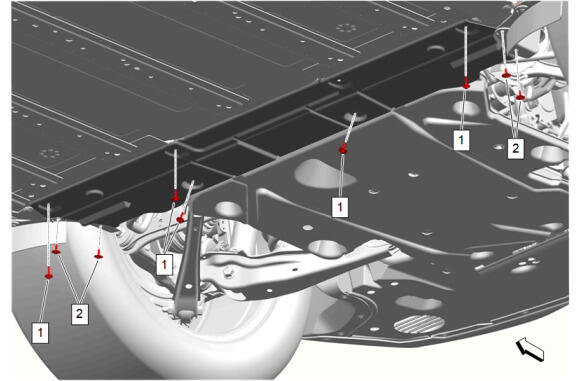

Underbody Rear Air Rear Deflector - Front

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Rear Air Deflector Bolt [5x] - - 2.5 N.m (22 lb in) Underbody Rear Air Rear Deflector Replacement - Front
2 Underbody Rear Air Rear Deflector Bolt [4x] - - 2.5 N.m (22 lb in) Underbody Rear Air Rear Deflector Replacement - Front

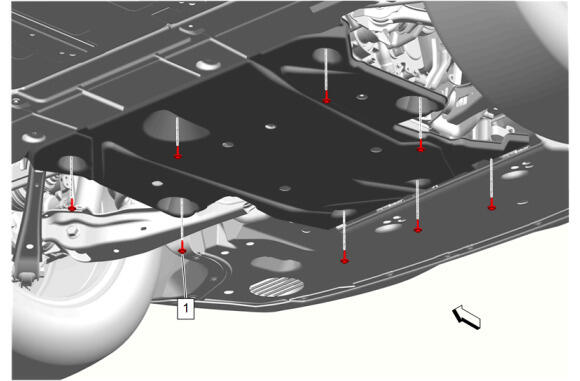

GM6014015Courtesy of GENERAL MOTORS COMPANY
Underbody Rear Air Rear Deflector - Middle

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Rear Air Deflector Bolt [8x] - - 2.5 N.m (22 lb in) Underbody Rear Air Rear Deflector Replacement - Middle

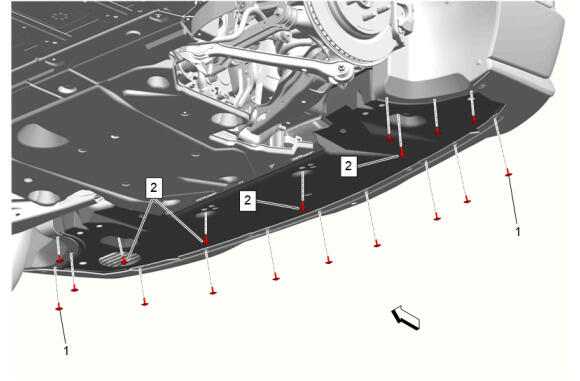

GM6014323Courtesy of GENERAL MOTORS COMPANY
Underbody Rear Air Rear Deflector - Rear

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Underbody Rear Air Rear Deflector Bolt [14x] - - 2.5 N.m (22 lb in) Underbody Rear Air Rear Deflector Replacement - Rear
2 Underbody Rear Air Deflector Bolt [4x] - - 2.5 N.m (22 lb in) Underbody Rear Air Rear Deflector Replacement - Rear
