Home >> Cadillac >> 2024 >> LYRIQ Tech, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry And Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Passive and Keyless Start

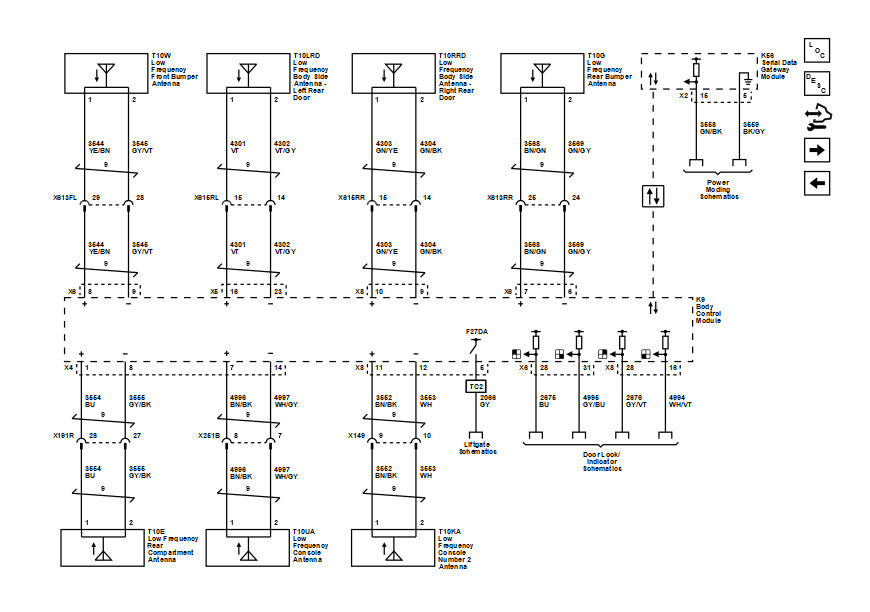

Keyless Entry - Passive and Keyless Start

GM6153460Courtesy of GENERAL MOTORS COMPANY
