Installation Procedure

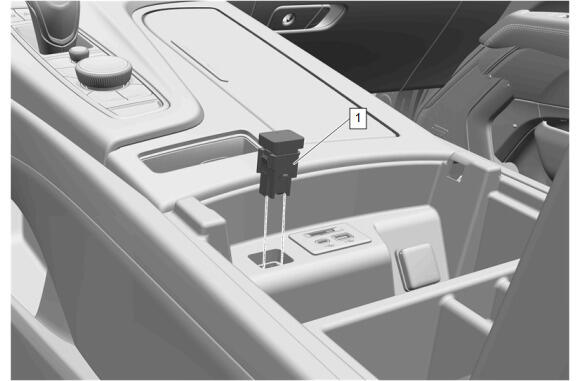

  1. GM5608386Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Accessory Power Receptacle Switch (1) - Install

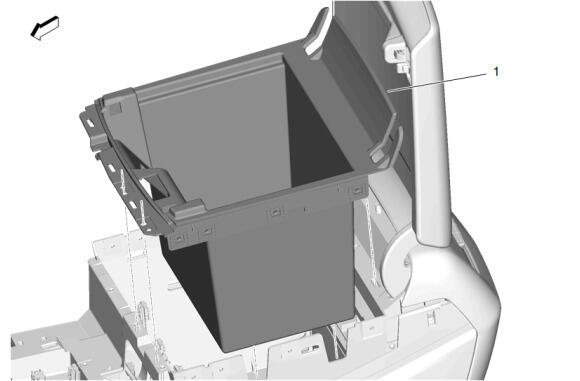

  3. GM5620306Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Install

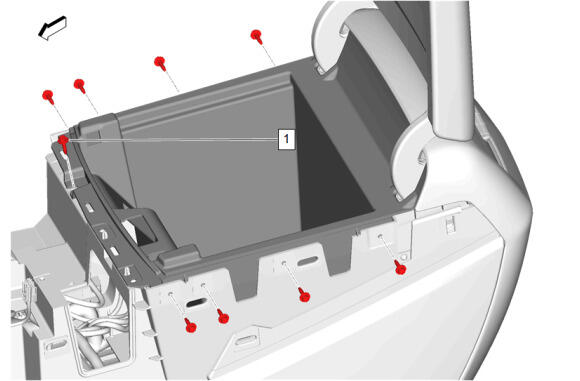

  4. GM5620305Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Compartment Bolt (1) - Install and tighten [9x] - Fastener Specifications

  5. GM5615597Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  6. Wireless Charging System Module Bracket (1) - Install
  7. GM5615595Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications

  8. GM5617374Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Trim Plate (1) - Install

  9. GM5617373Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (1) - Install and tighten [2x] - Fastener Specifications

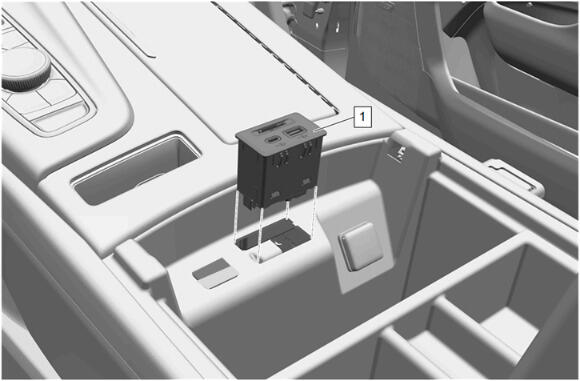

  10. GM5620321Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  11. Multimedia Receptacle (1) - Install

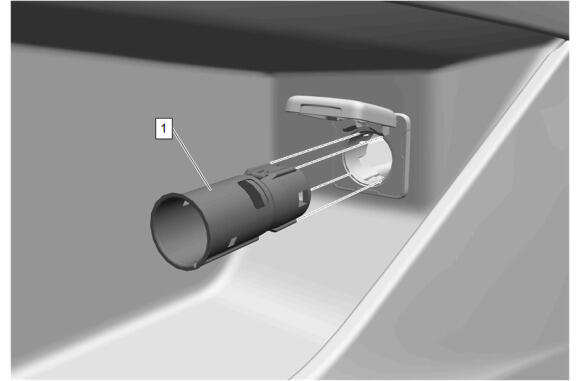

  12. GM5608654Courtesy of GENERAL MOTORS COMPANY

    Route the connector through the accessory power receptacle retainer. Align the retainer to the slot in the opening. Connect the electrical connector to the accessory power receptacle (1).

  13. Install the retainer by pressing into place until fully seated.
  14. Close the front floor console armrest.
  15. Front Floor Console - Install - Front Floor Console Removal and Installation

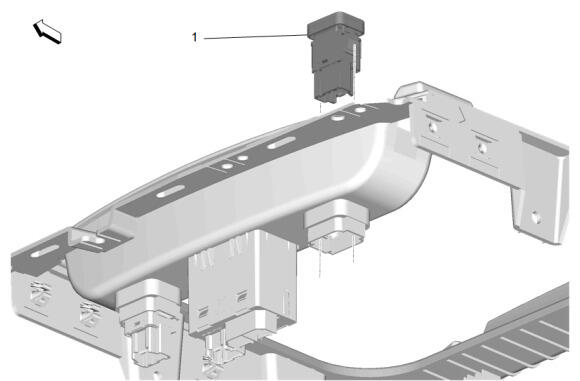

  1. GM5620310Courtesy of GENERAL MOTORS COMPANY

    Accessory Power Receptacle Switch (1) - Install

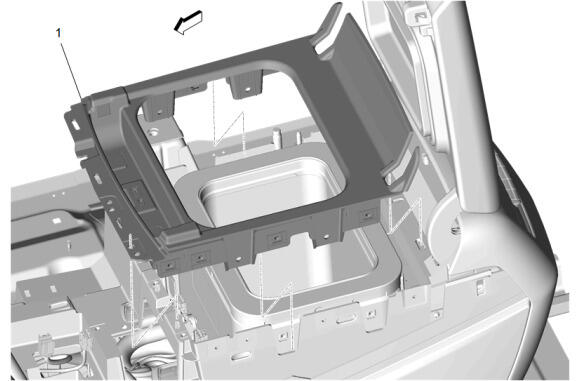

  2. GM5620309Courtesy of GENERAL MOTORS COMPANY

    Connect all electrical connectors.

  3. Front Floor Console Compartment (1) - Install

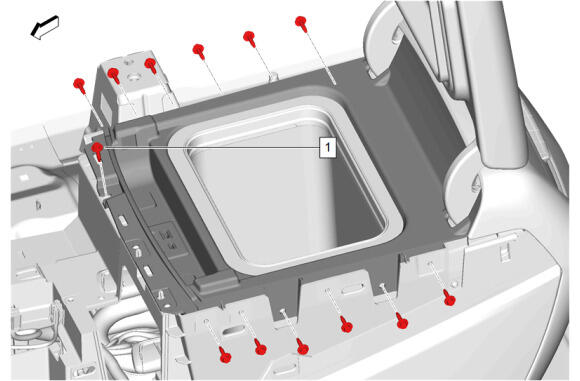

  4. GM5620308Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Compartment Bolt (1) - Install and tighten [13x] - Fastener Specifications

  5. GM5615597Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bracket (1) - Install

  6. GM5615595Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications

  7. Connect the electrical connectors.
  8. GM5617374Courtesy of GENERAL MOTORS COMPANY

    Connect all electrical connectors.

  9. Front Floor Console Cup Holder Trim Plate (1) - Install
  10. GM5617373Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (1) - Install and tighten [2x] - Fastener Specifications

  11. GM5617170Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

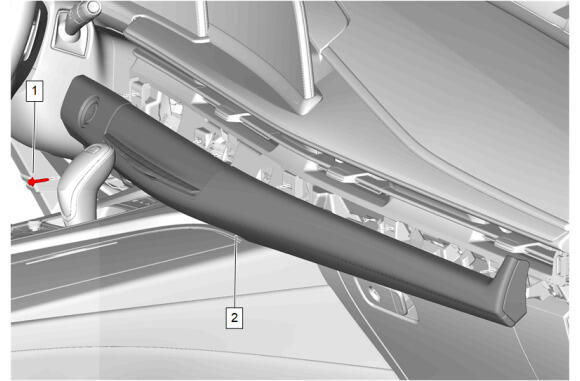

  12. GM5612005Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  13. Instrument Panel Trim Pad (2) - Install
  14. Instrument Panel Trim Pad Bolt (1) - Install and tighten - Fastener Specifications
  15. GM5617169Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  16. GM5612773Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install

  17. GM5612772Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Bolt (2) - Install and tighten [4x] - Fastener Specifications

  18. Hood Primary Latch Release Cable Handle (1) - Install
  19. GM5611996Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  20. Replace the front side door weather-strip to cover the edge of the instrument panel fuse block access hole cover (1).
  21. Perform the necessary programming and setup procedure: Control Module References
