Fastener Specifications
NOTE:
Callout items in the following chart represent components shown in graphic above.

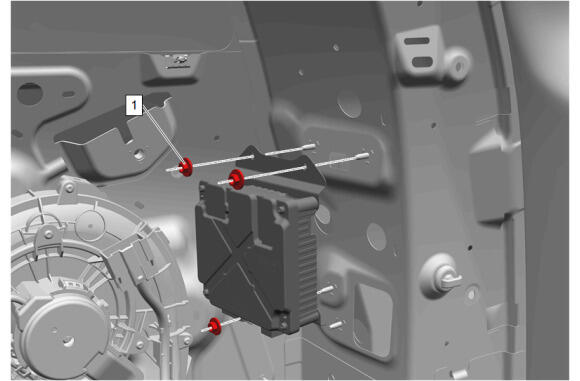

Accessory AC and DC Power Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Accessory AC and DC Power Control Module Nut [3x] | - | - | 9 N.m (80 lb in) | Accessory AC and DC Power Control Module Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

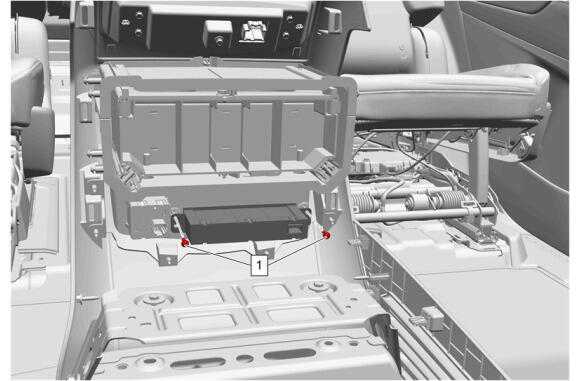

Dual Charge Only Receptacle
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Console Armrest Bolt [2x] | - | - | 1.6 N.m (14 lb in) | Dual Charge Only Receptacle Replacement - Rear |
NOTE:
Callout items in the following chart represent components shown in graphic above.

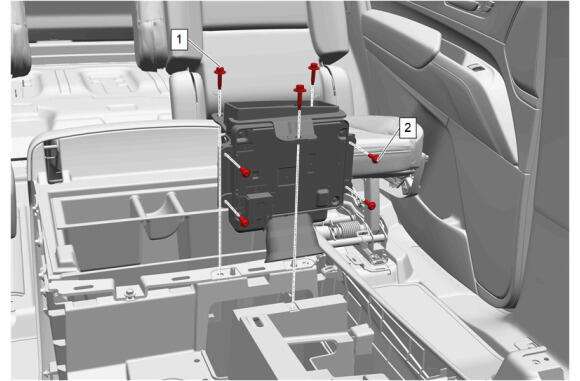

Wireless Charging Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Wireless Charging System Module Bracket Bolt [3x] | - | - | 1.3 N.m (12 lb in) | Wireless Charging System Module Replacement |
| 2 | Wireless Charging System Module Bracket Bolt [4x] | - | - | 0.8 N.m (7 lb in) | Wireless Charging System Module Replacement |
