Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

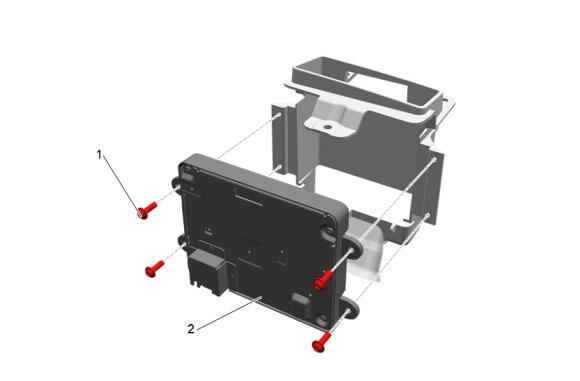

Wireless Charging System Module (2) - Install
CAUTION:
Refer to Fastener Caution .

Wireless Charging System Module Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

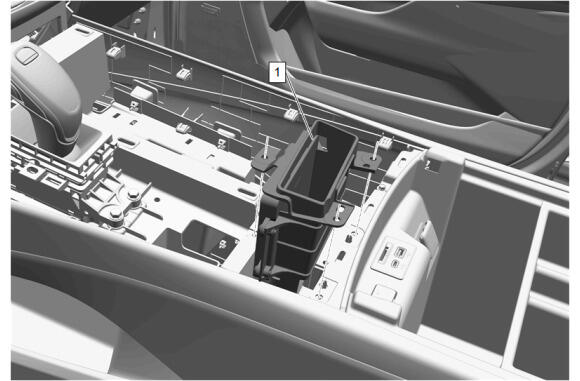

Wireless Charging System Module Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

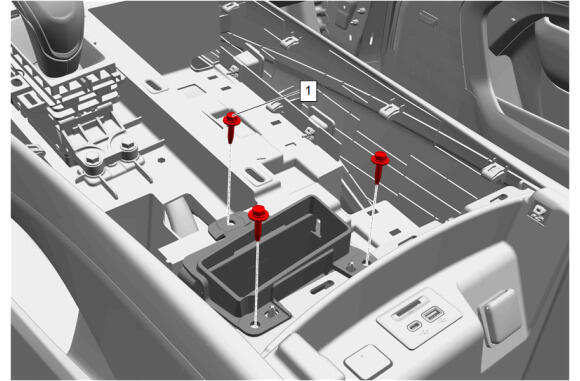

Wireless Charging System Module Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect all electrical connectors.
Front Floor Console Cup Holder Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

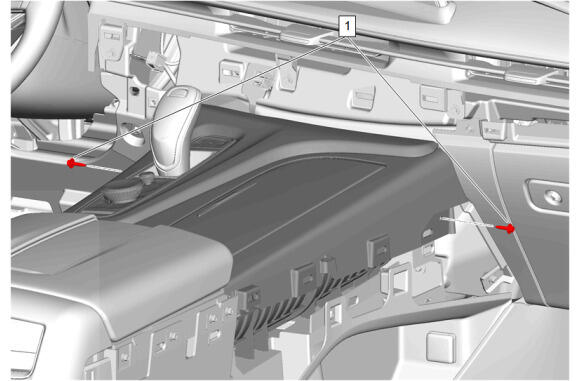

Front Floor Console Cup Holder Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console (1) - Install - Front Floor Console Removal and Installation
Perform the necessary programming and setup procedure: Control Module References
