Installation Procedure

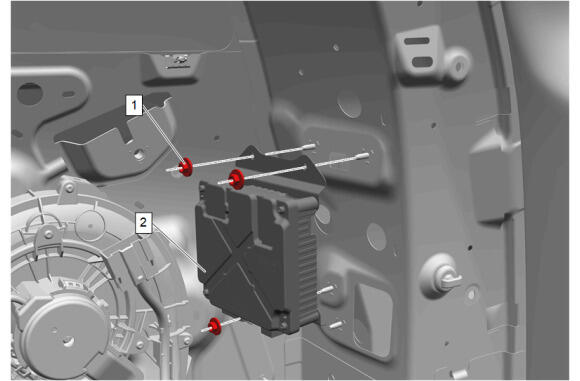

  1. GM5615630Courtesy of GENERAL MOTORS COMPANY
  2. Accessory AC and DC Power Control Module (2) - Install
  3. CAUTION:

    Refer to Fastener Caution .

    Accessory AC and DC Power Control Module Nut (1) - Install and tighten [3x] - Fastener Specifications

  4. Connect the electrical connectors.

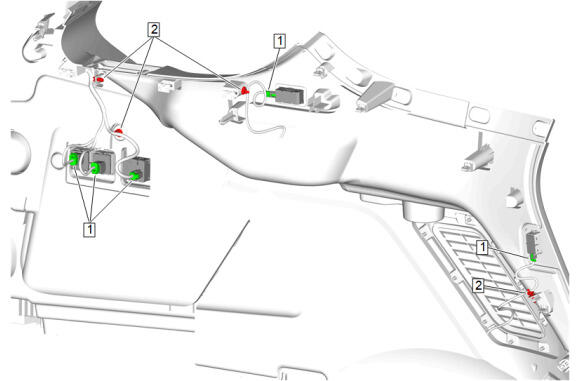

  5. GM5601130Courtesy of GENERAL MOTORS COMPANY

    Install the wiring harness retainers (2).

  6. Connect the electrical connectors (1).

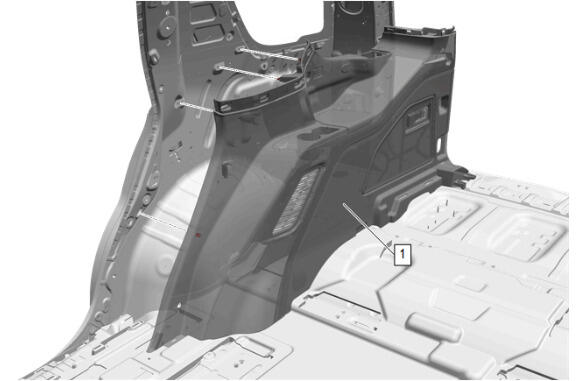

  7. GM5613886Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Feed the rear seat belt opening bezel and 3rd row seat belt through the quarter lower rear trim panel.

    Quarter Lower Rear Trim Panel (1) - Install

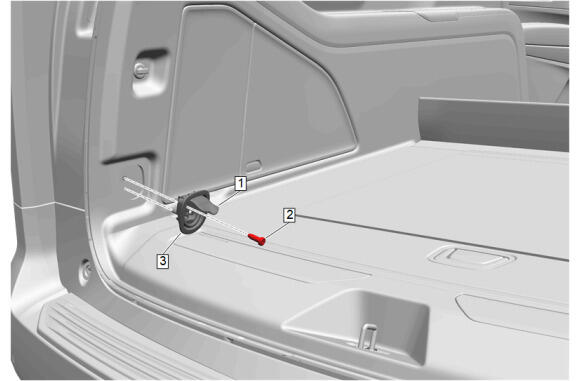

  8. GM5609934Courtesy of GENERAL MOTORS COMPANY

    Cargo Tie Down Loop - Right Side (3) - Install

  9. Cargo Tie Down Loop Bolt - Right Side (2) - Install and tighten - Fastener Specifications
  10. Cargo Tie Down Loop Bolt Cap - Right Side (1) - Close

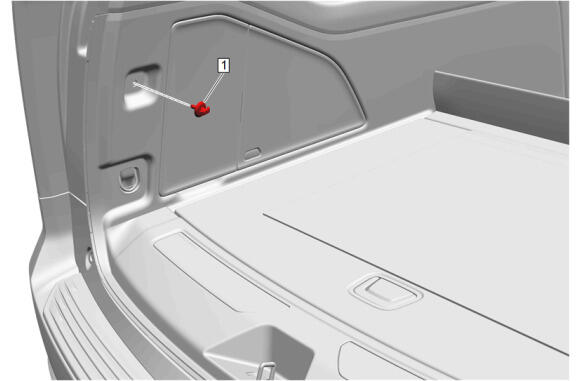

  11. GM5609897Courtesy of GENERAL MOTORS COMPANY

    Convenience Net Retainer - Right Side (1) - Install and tighten - Fastener Specifications

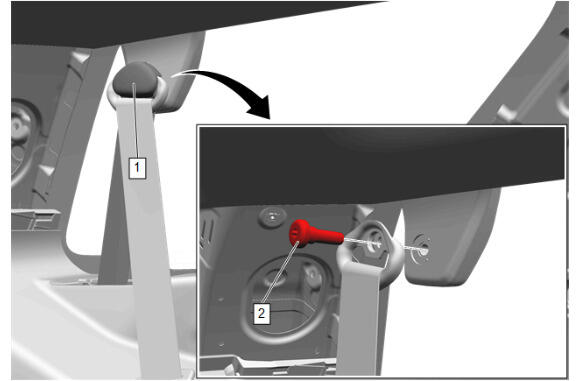

  12. GM5613262Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the right side upper 3rd row seat belt retractor bolt (2). Fastener Specifications

  13. 3rd Row Seat Belt Retractor Anchor Cover - Right Side (1) - Close

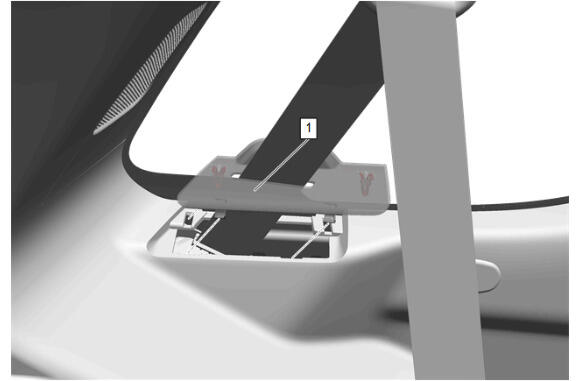

  14. GM5612595Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Belt Opening Bezel - Right Side (1) - Install

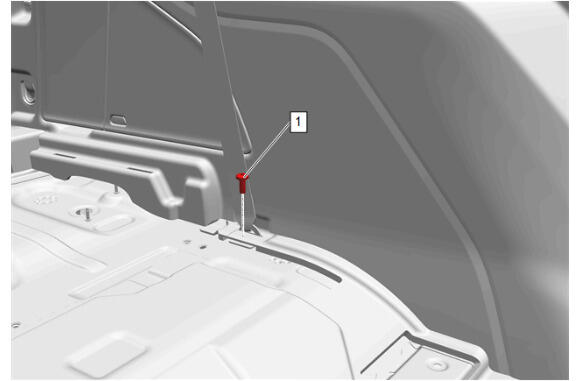

  15. GM5612585Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the right side lower 3rd row seat belt retractor bolt (1). Fastener Specifications

  16. GM5573197Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer - Right Side (2) - Install

  17. Electrical Connector - Right Side (1) - Connect

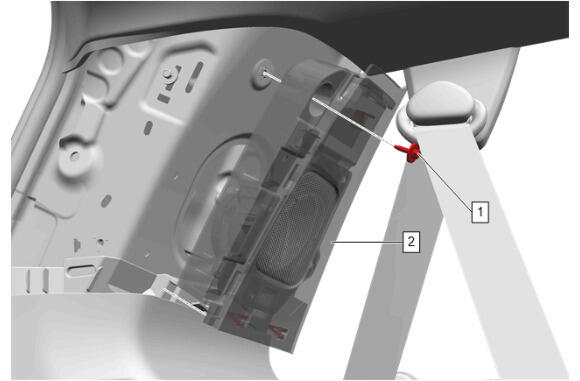

  18. GM5609616Courtesy of GENERAL MOTORS COMPANY

    Body Rear Corner Upper Garnish Molding - Right Side (2) - Install

  19. Body Rear Corner Upper Garnish Molding Bolt - Right Side (1) - Install and tighten - Fastener Specifications

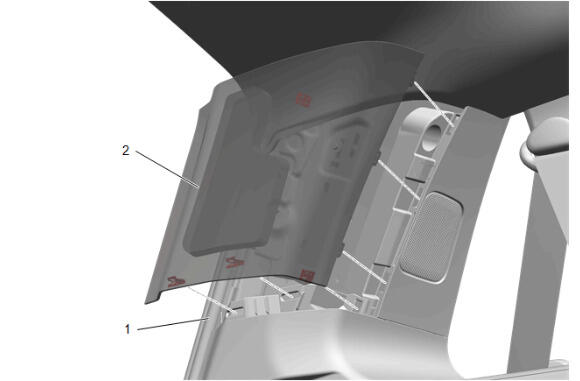

  20. GM5609519Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Position the body side rear window garnish molding tether in the same position as before molding removal.

    Body Side Rear Window Garnish Molding - Right Side (2) - Reposition

  21. Liftgate Weatherstrip - Right Side (1) - Reposition
  22. GM5609084Courtesy of GENERAL MOTORS COMPANY

    Body Lock Pillar Upper Trim Panel - Right Side (1) - Install

  23. GM5609077Courtesy of GENERAL MOTORS COMPANY

    Quarter Window Trim Finish Panel Bolt - Right Side (3) - Install and tighten - Fastener Specifications

  24. Quarter Window Trim Finish Panel Bolt Cap - Right Side (2) - Install

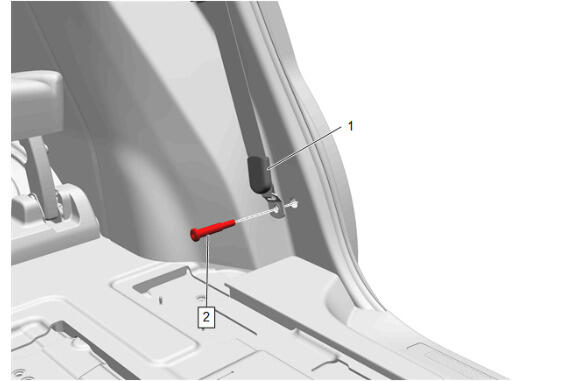

  25. GM5609067Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Belt Retractor Anchor Plate Bolt - Right Side (2) - Install and tighten - Fastener Specifications

  26. Rear Seat Belt Retractor Sleeve - Right Side (1) - Reposition

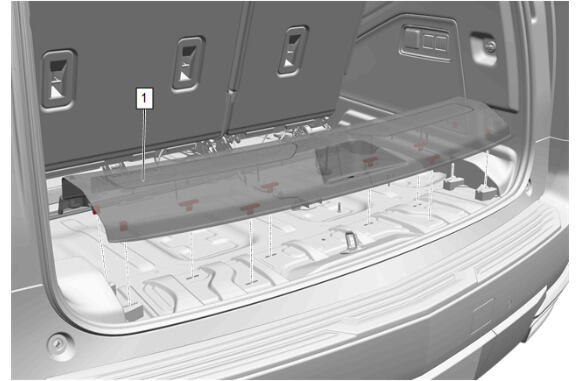

  27. GM5611871Courtesy of GENERAL MOTORS COMPANY

    Rear End Trim Finish Panel (1) - Install

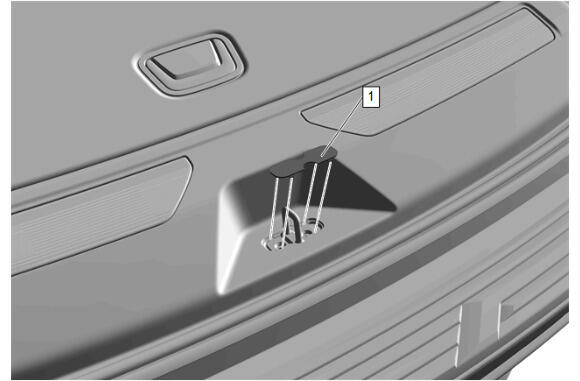

  28. GM5609668Courtesy of GENERAL MOTORS COMPANY

    Liftgate Lock Striker Cover (1) - Install

  29. GM5607362Courtesy of GENERAL MOTORS COMPANY

    Return the right side rear seat (1) to the original position.

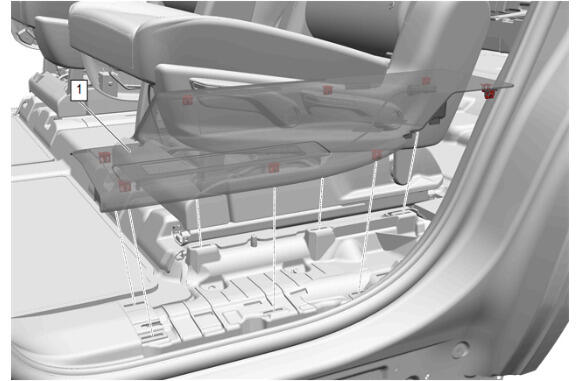

  30. GM5608437Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Connect the electrical connector.

  31. Rear Side Door Sill Garnish Molding - Right Side (1) - Install
  32. Enable the SIR System. SIR Disabling and Enabling
  33. Install the 3rd row seat. 3rd Row Seat Removal and Installation
