Installation Procedure
Ignition Lock Key Transmitter Antenna Bracket (1) - Install
Install the low frequency body side antenna (1) and secure the 2 retainer tabs.
- Connect the electrical connector.
Position the rocker panel molding (2) to the vehicle and seat the upper rocker panel molding retainers (1) into the body side outer panel.
- Seat the lower rocker panel molding retainers (1) into the body side outer panel.
- Remove the double layer of masking tape around the perimeter of the painted surfaces.
Position the rear wheelhouse liner (3) to its original location.
- Rear Wheelhouse Liner Retainer (2) Install
- Rear Tire Front Air Deflector Bolt (1) - Install and tighten - Fastener Specifications

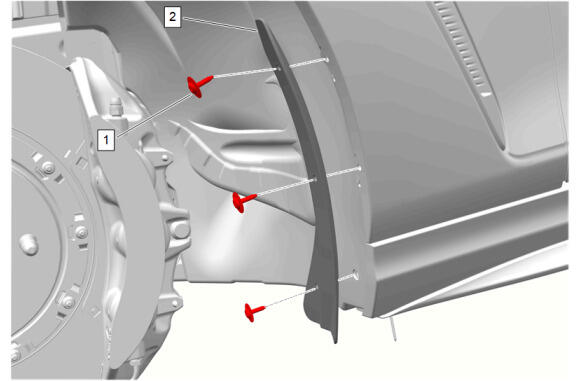

Position the front wheelhouse liner (2) to its original location.
- Front Wheelhouse Liner Retainer (1) - Install
Front Wheelhouse Liner Bolt - Left Side (1) - Install and tighten - Fastener Specifications

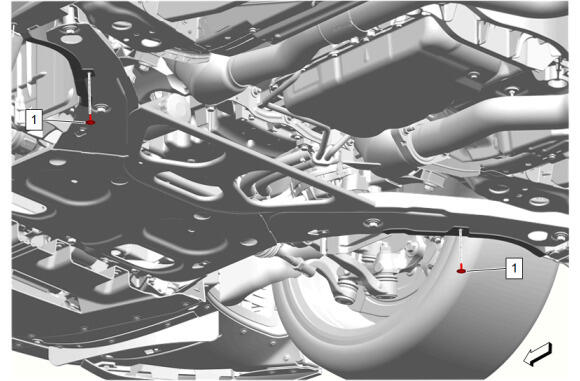

Rocker Panel Protector (2) - Install
- Front Wheelhouse Liner Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Close both front and rear side doors.
CAUTION:
Refer to Fastener Caution .
