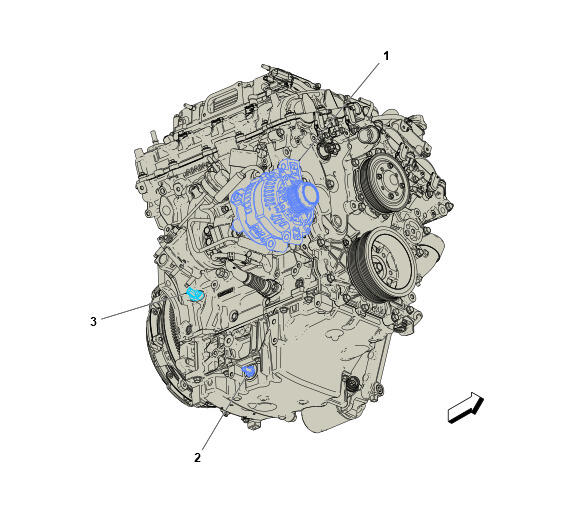

Right Front of Engine Components (LF4)

GM5843548Courtesy of GENERAL MOTORS COMPANY
Items
1. G13 Generator G13 Generator X1 (LF4) , or G13 Generator X2 (LF4)
2. B35 Engine Oil Level Indicator Switch (LF4) B35 Engine Oil Level Indicator Switch (LF4)
3. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LF4)
