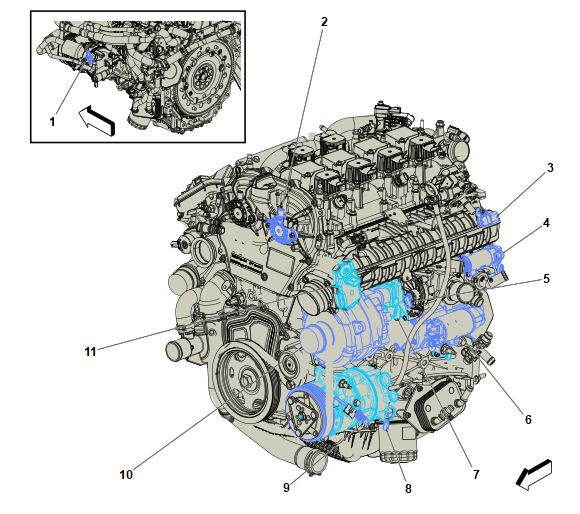

Left Front of Engine Components (LSY)

GM6039022Courtesy of GENERAL MOTORS COMPANY
Items
1. B1 Air Conditioning Refrigerant Pressure Sensor B1 Air Conditioning Refrigerant Pressure Sensor
2. Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY/L3B) Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY)
3. B65 Manifold Absolute Pressure and Intake Air Temperature Sensor (-LF4) B65 Manifold Absolute Pressure and Intake Air Temperature Sensor (- LF4)
4. Q74 Engine Coolant Bypass Valve (-LF4) Q74 Engine Coolant Bypass Valve (- LF4)
5. B34A Engine Coolant Temperature Sensor 1 (-LF4) B34A Engine Coolant Temperature Sensor 1 (- LF4)
6. M64 Starter M64 Starter X1 (L3B / LSY) , or M64 Starter X2 (L3B / LSY)
7. Q97B Engine Coolant Flow Control Valve - Block (-LF4) Q97B Engine Coolant Flow Control Valve - Block (- LF4)
8. Q46 Air Conditioning Compressor Solenoid Valve Q46 Air Conditioning Compressor Solenoid Valve
9. Q2 Air Conditioning Clutch Q2 Air Conditioning Clutch
10. G13 Generator G13 Generator X1 (L3B / LSY) , or G13 Generator X2 (L3B / LSY)
11. Q38 Throttle Body Q38 Throttle Body
