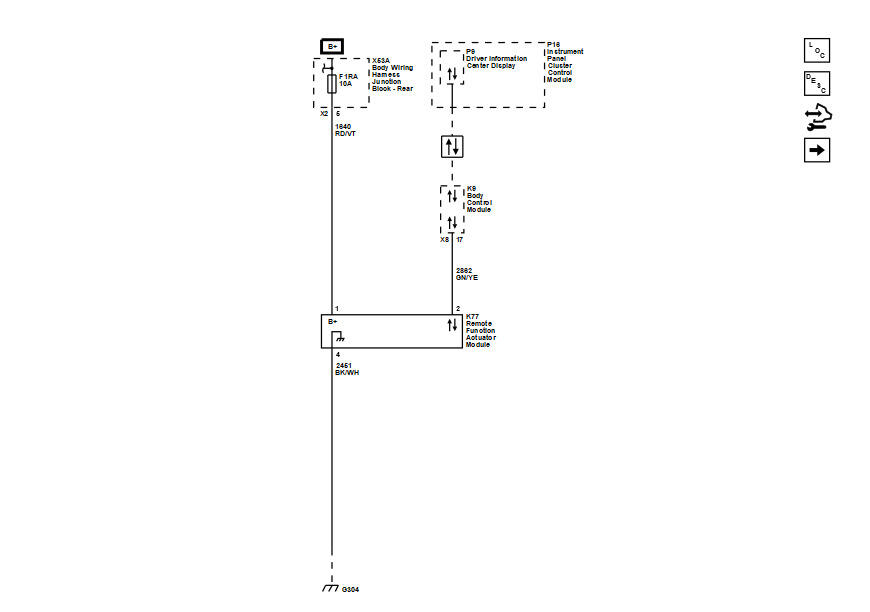

Home >> Cadillac >> 2024 >> CT4 V Blackwing, Standard Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Active
