Removal Procedure
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Steering Linkage Outer Tie Rod - Remove - Steering Linkage Outer Tie Rod Replacement
- Steering Gear Heat Shield - Remove - Steering Gear Heat Shield Replacement (LGX) , or Steering Gear Heat Shield Replacement (LSY)

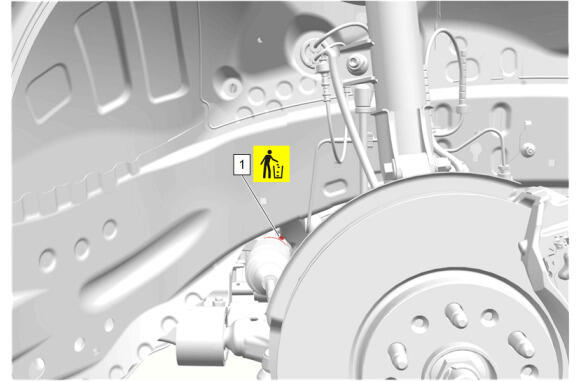

Steering Gear Boot Clamp- Inner (1) - Remove and DISCARD
Mark the location of the steering linkage inner tie rod nut (1) with the steering linkage inner tie rod to aid in installation.

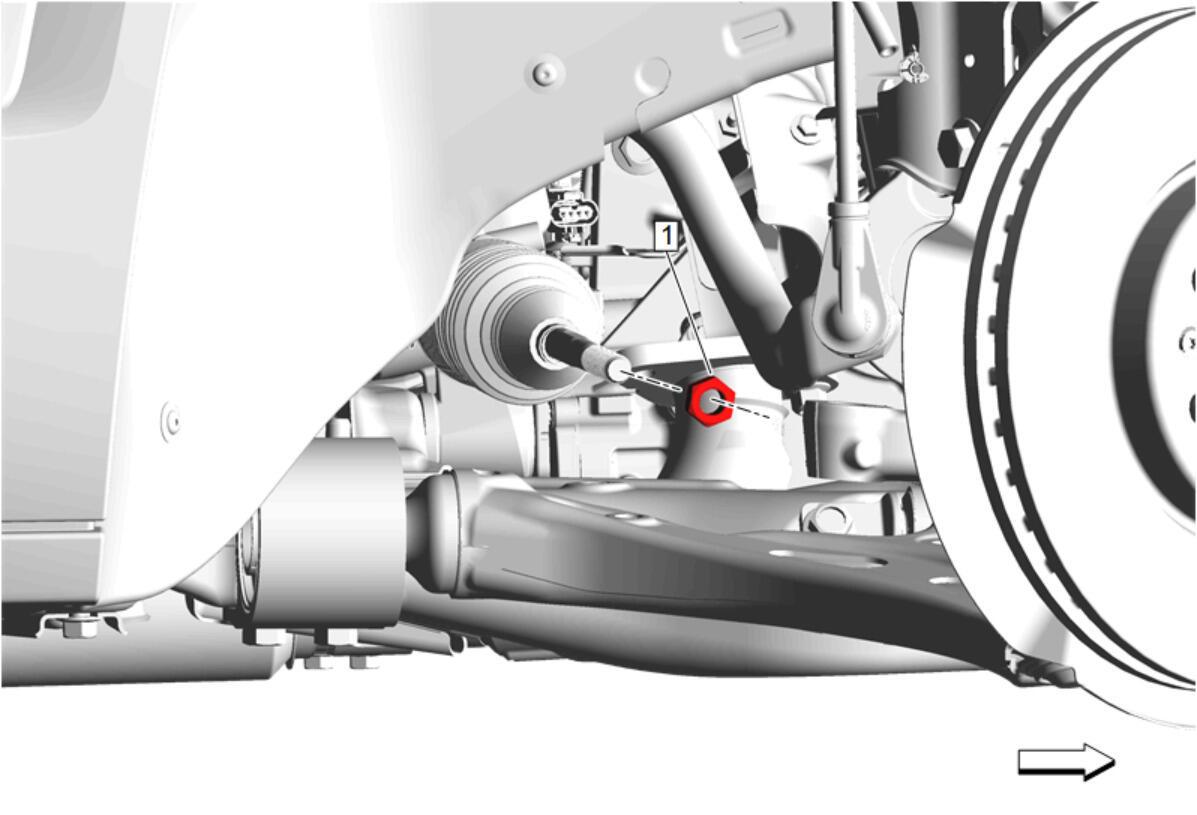

- Steering Linkage Inner Tie Rod Nut (1) - Remove

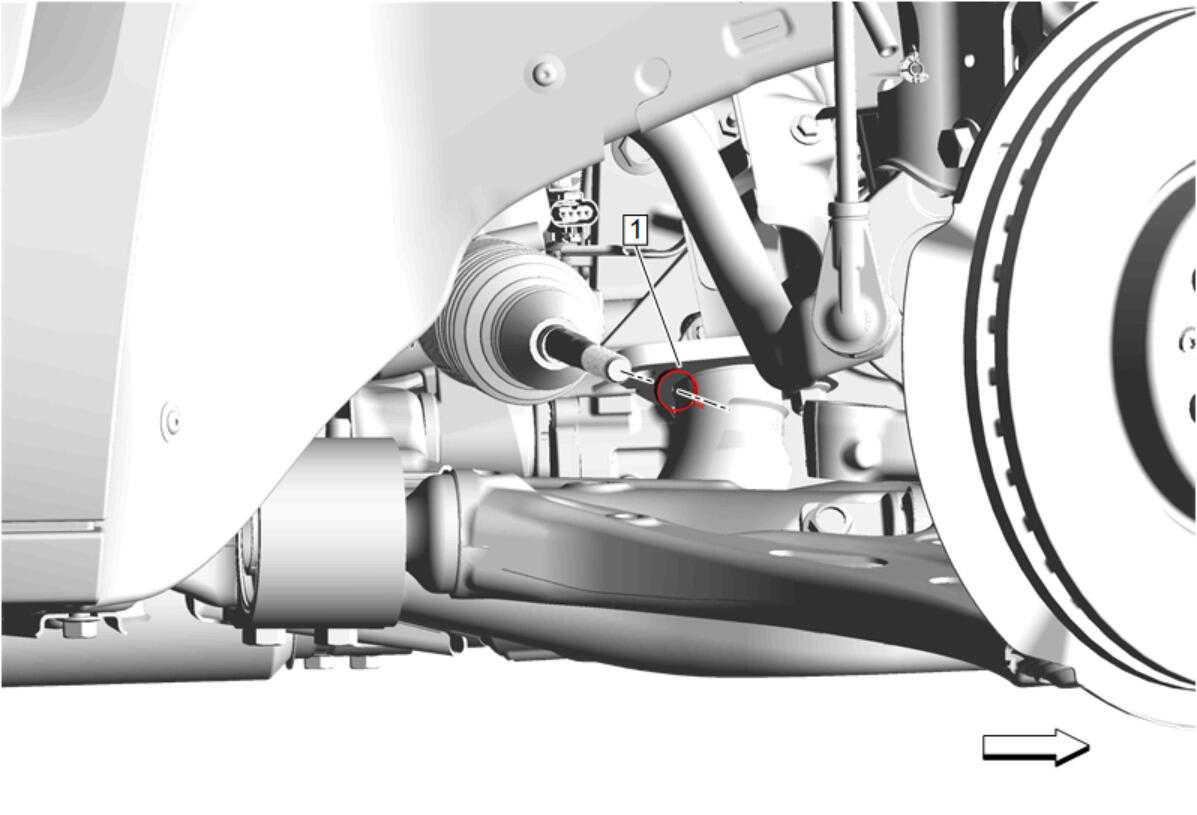

Steering Gear Boot Clamp- Outer (1) - Remove

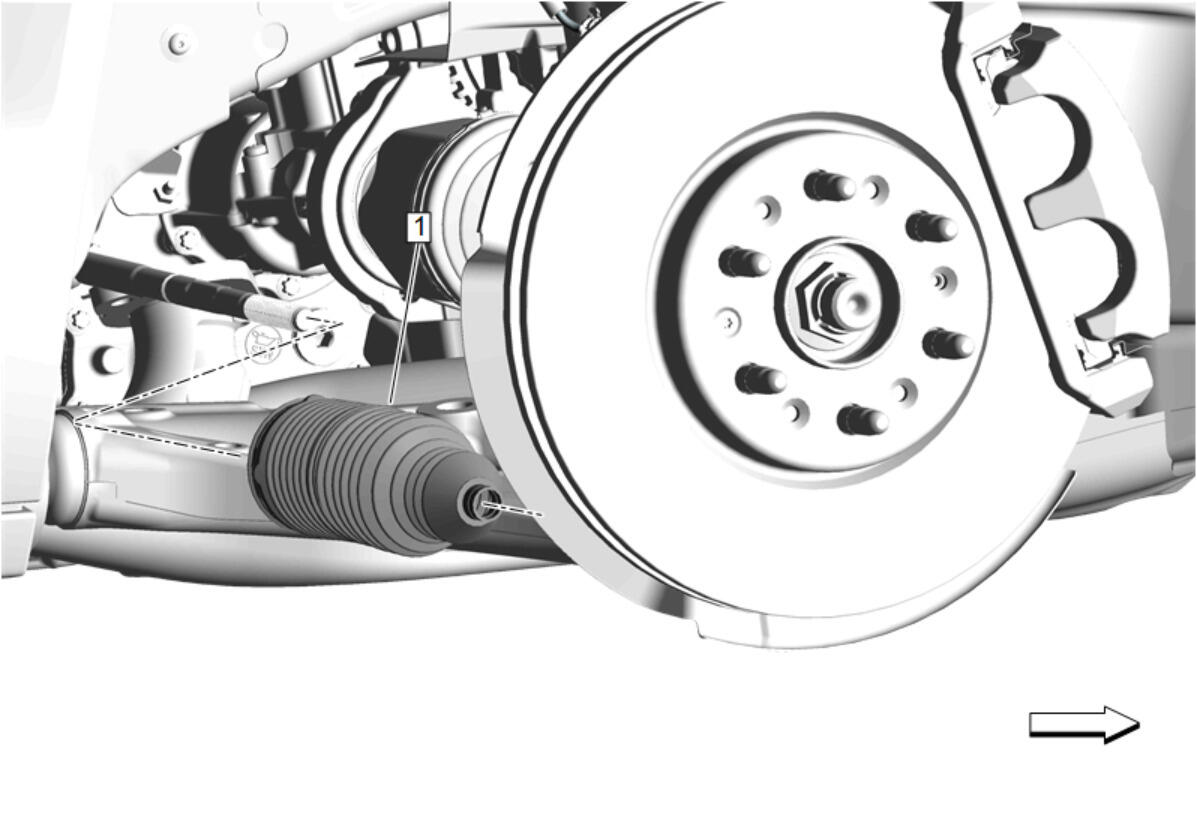

Steering Gear Boot (1) - Remove
