Intake Air Duct Replacement

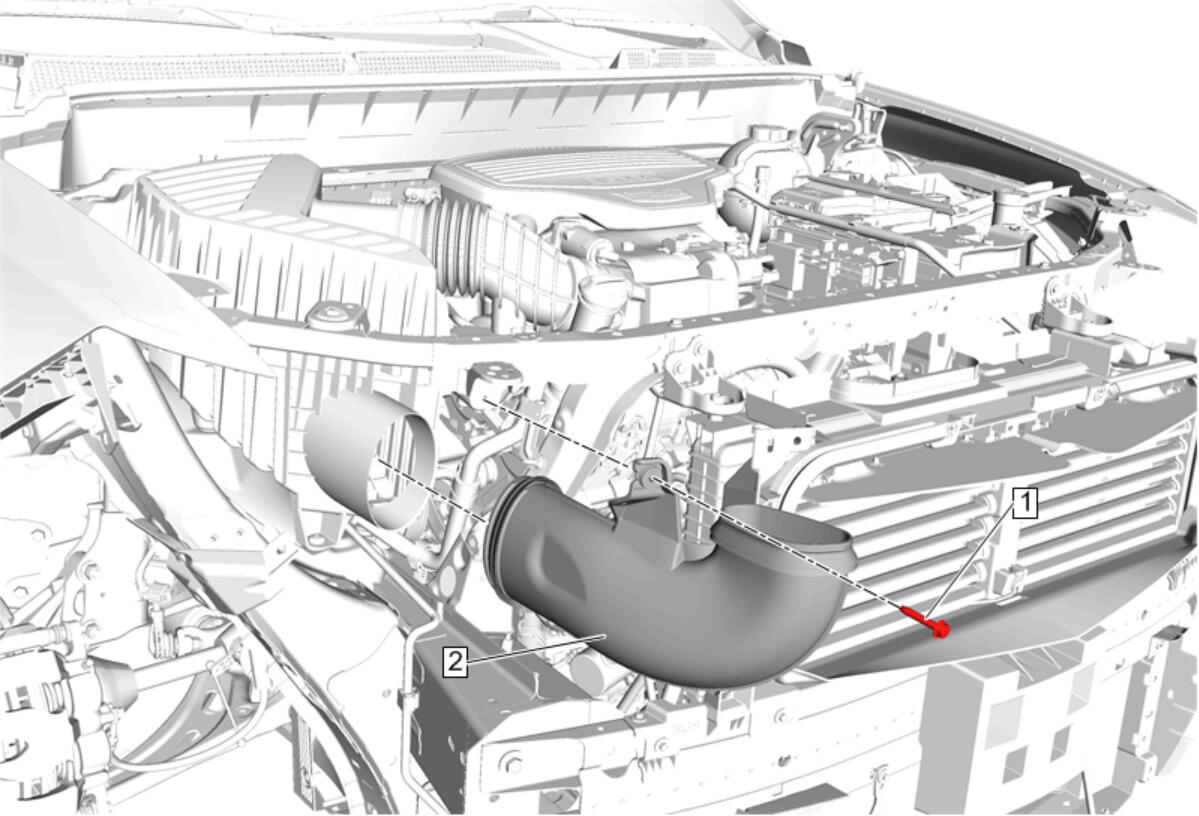

| Callout | Component Name |
|---|---|
| Preliminary Procedure Intake Air Splash Shield Replacement |
|
| 1 | Intake Air Duct Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Intake Air Duct Procedure Pull intake air duct froward to release from air cleaner assembly. |
