Fuel Feed Front Pipe Replacement

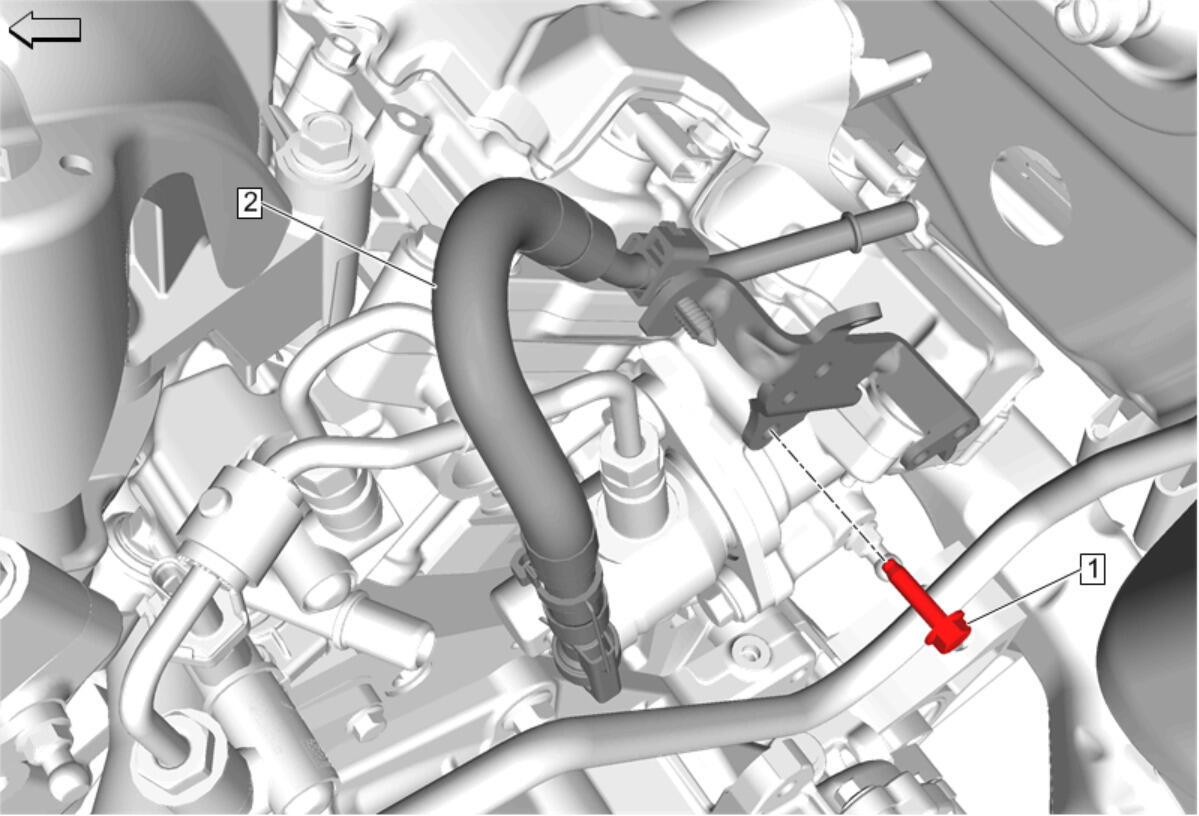

| Callout | Component Name |
|---|---|
|
WARNING:
The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise canceling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning . Preliminary Procedures
|
|
| 1 | Fuel Feed Pipe Bracket Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Fuel Feed Front Pipe Procedure Disconnect the quick connect fitting. Metal Collar Quick Connect Fitting Service |
