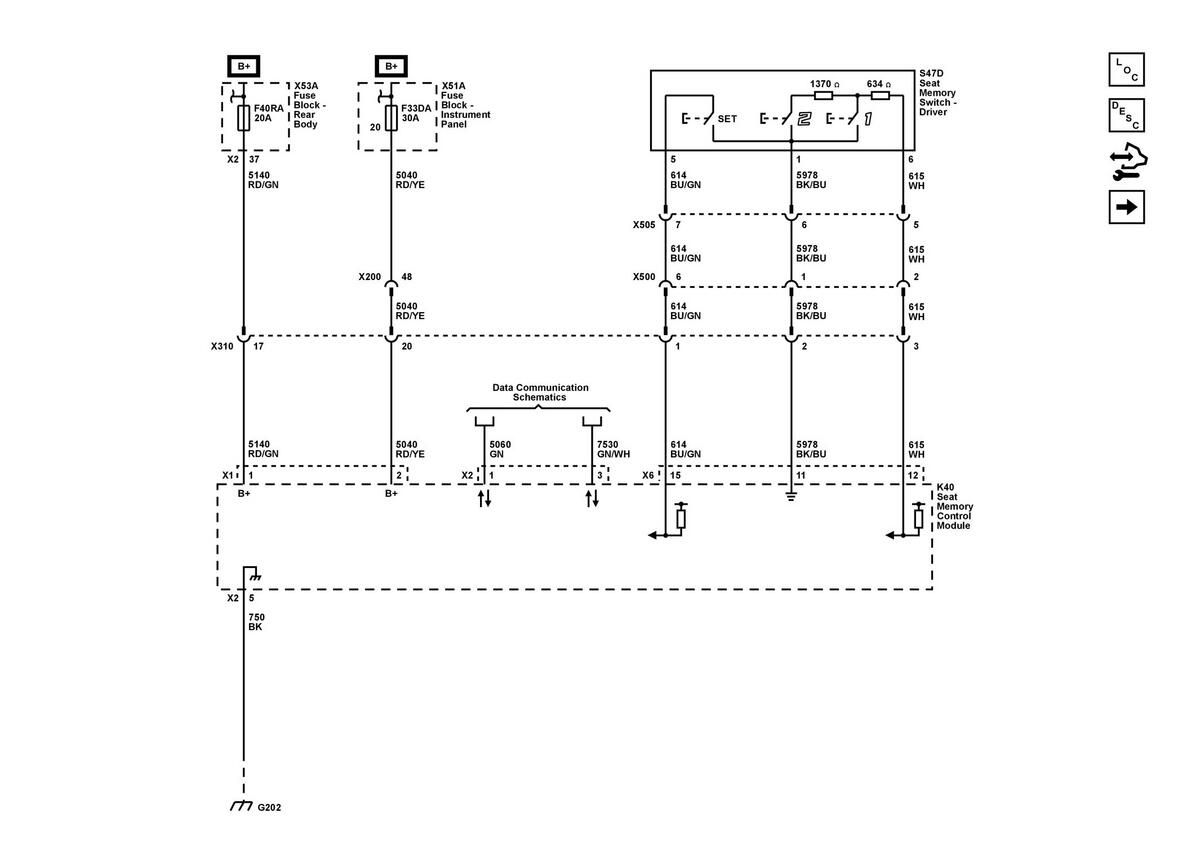

Module Power, Ground, Serial Data, and Memory Controls

GM5971464

Courtesy of GENERAL MOTORS COMPANY
