Folding 3rd Row Seat Module Replacement

Courtesy of GENERAL MOTORS COMPANY

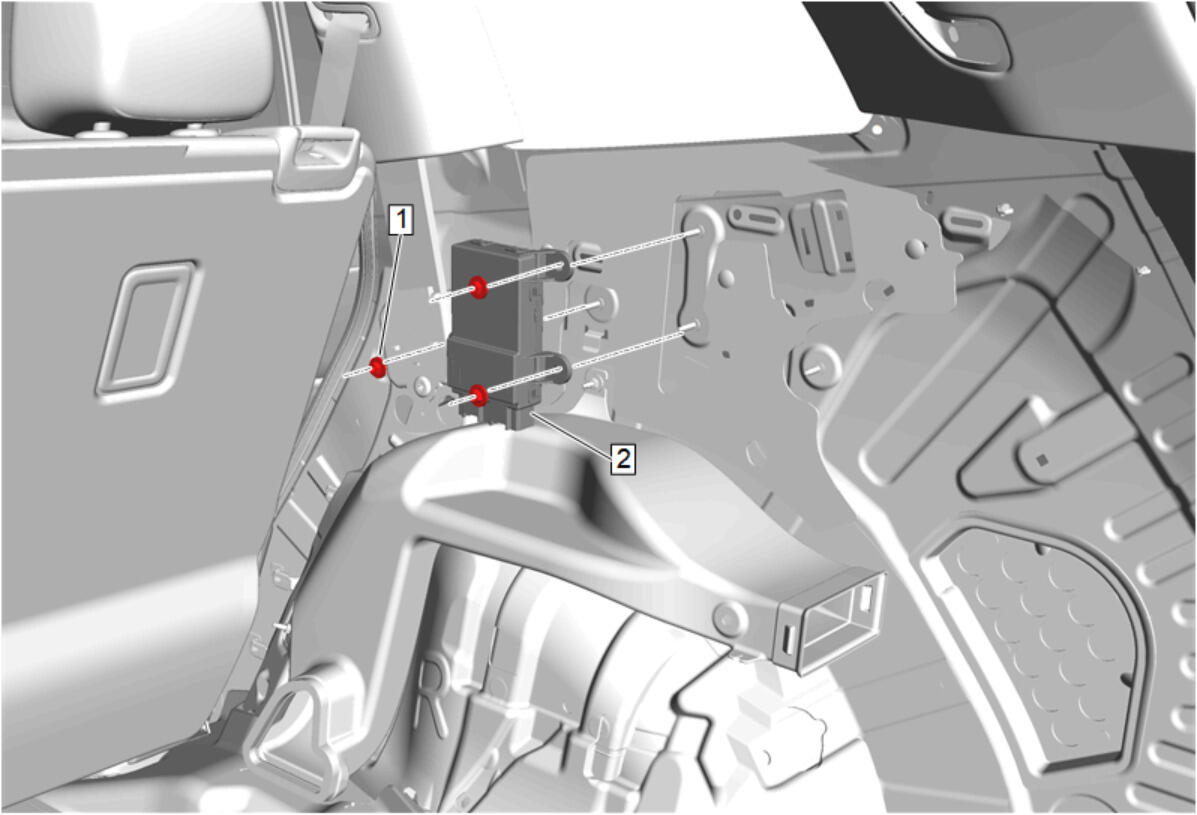

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement - Right Side
1	Folding 3rd Row Seat Module Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Folding 3rd Row Seat Module Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Folding 3rd Row Seat Module Nut [3x]

CAUTION:

Tighten
6 N.m (53 lb in)

Folding 3rd Row Seat Module

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure: Control Module References
