Installation Procedure

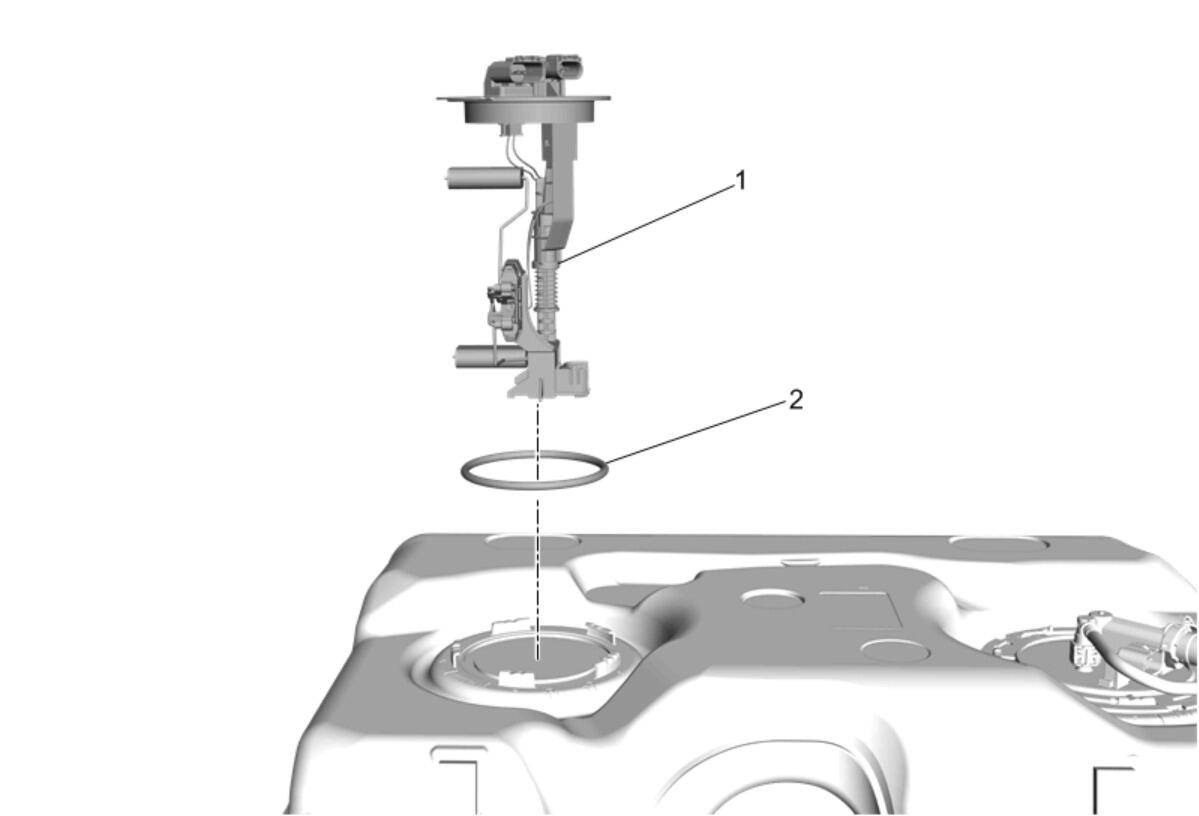

  1. GM5169689Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Seal (2) - Install NEW

  2. Fuel Sender (1) - Install

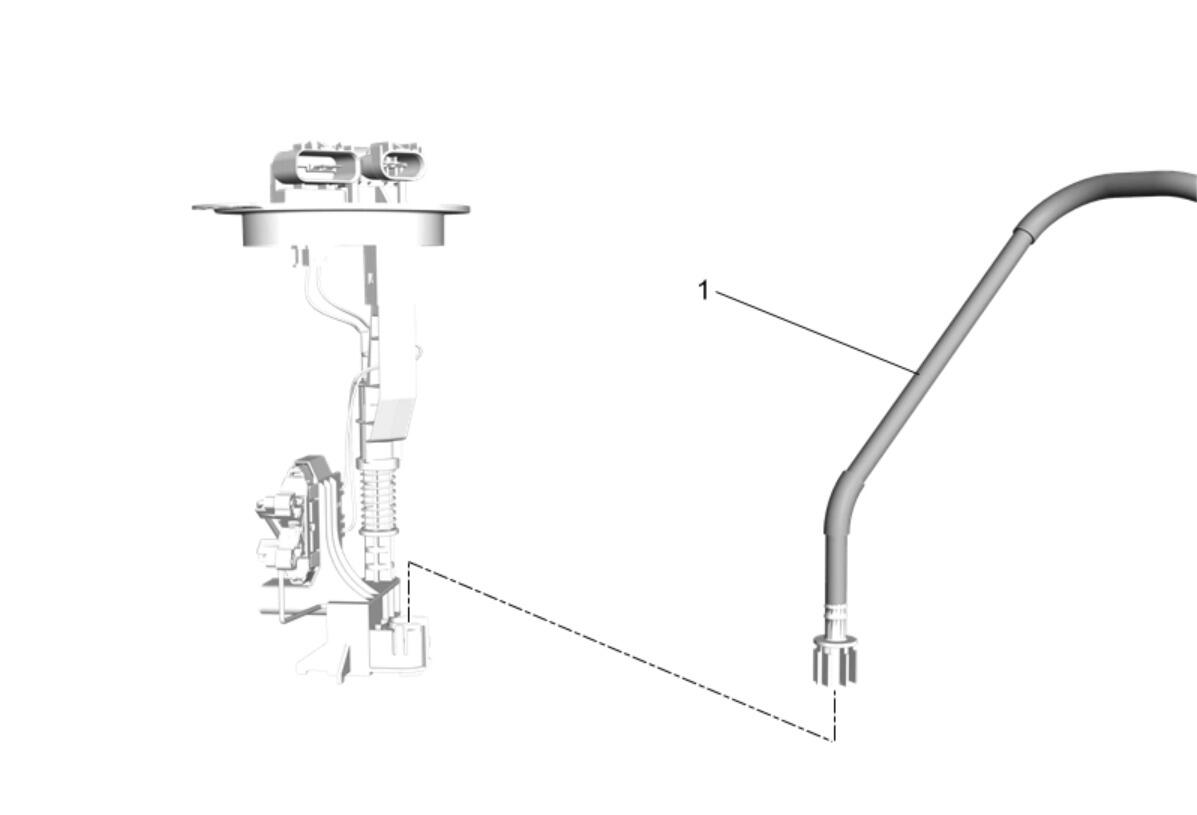

  3. GM5169696Courtesy of GENERAL MOTORS COMPANY

    Transfer Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

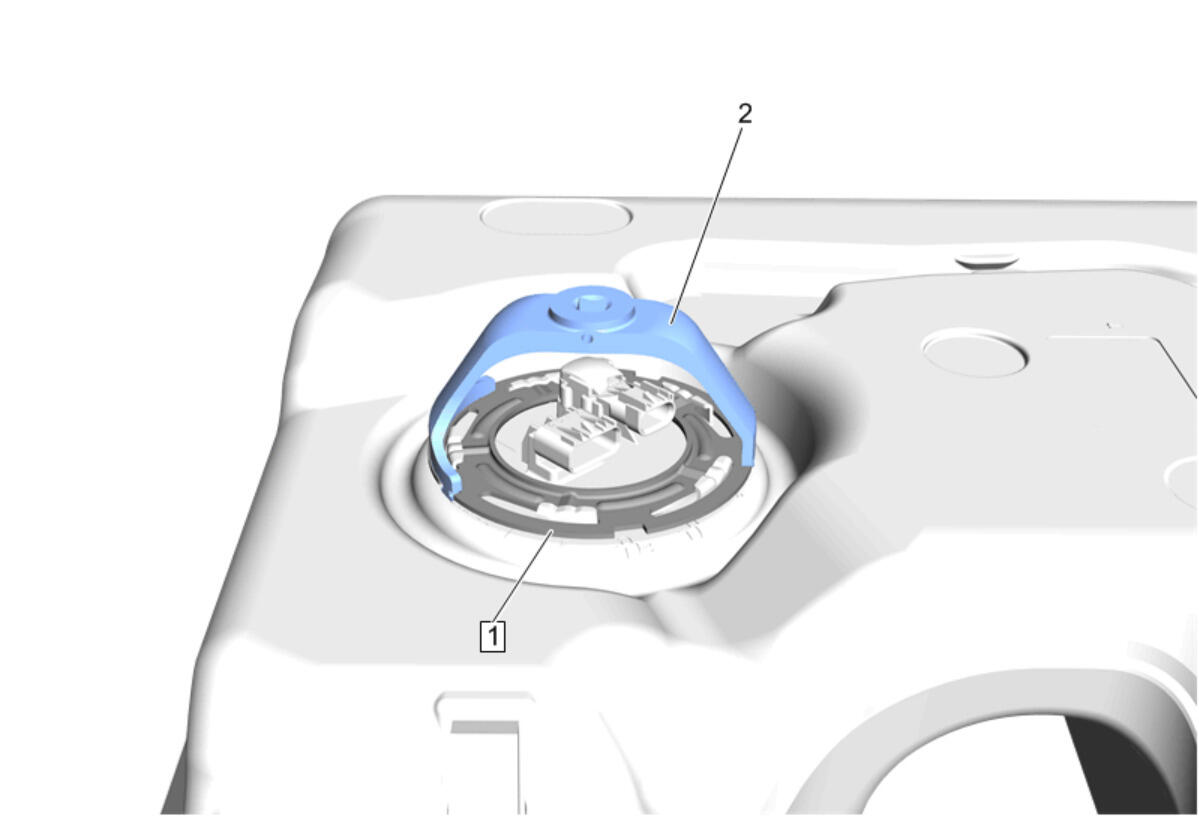

  4. GM5169687Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Retaining Ring (1) - Install - CH-48482  Fuel Sender Lock Ring Wrench (2)

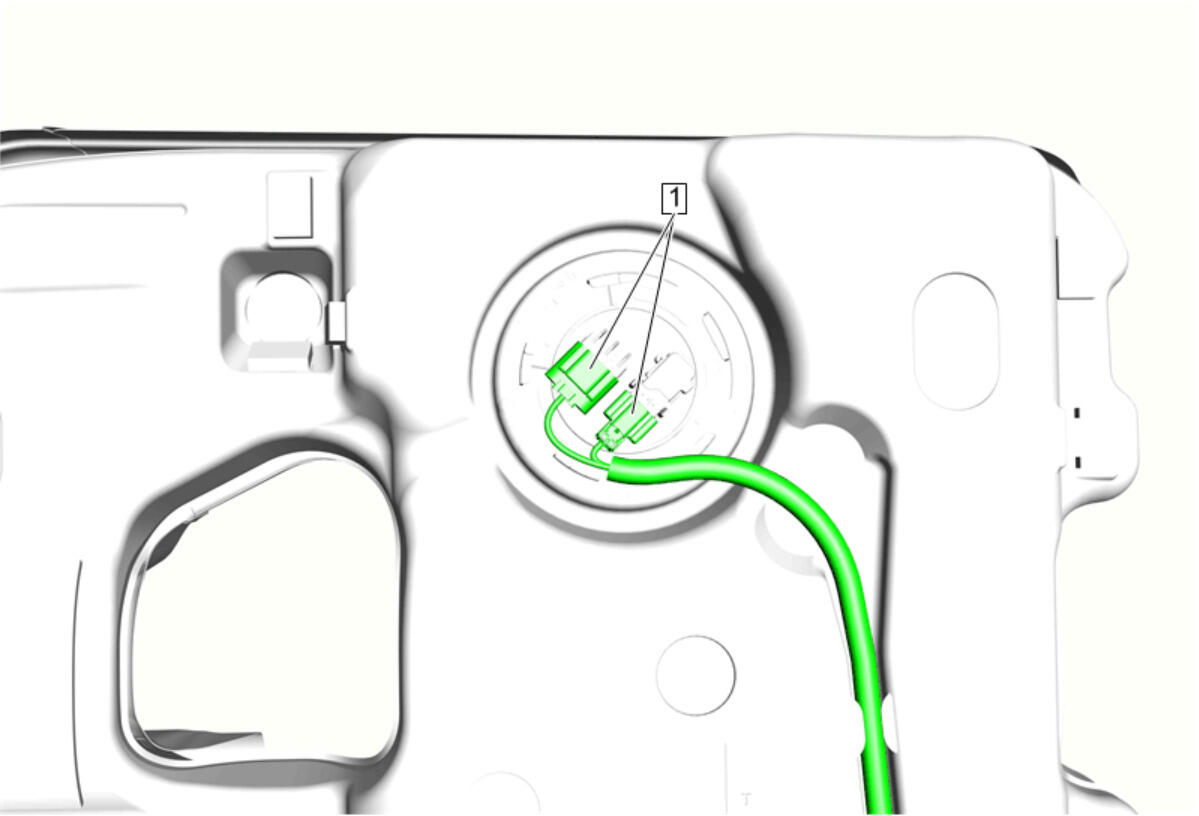

  5. GM5169685Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect [2x]

  6. Fuel Tank - Install - Fuel Tank Replacement
