Home >> Cadillac >> 2023 >> XT5 Luxury, 4WD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Passive and Keyless Start

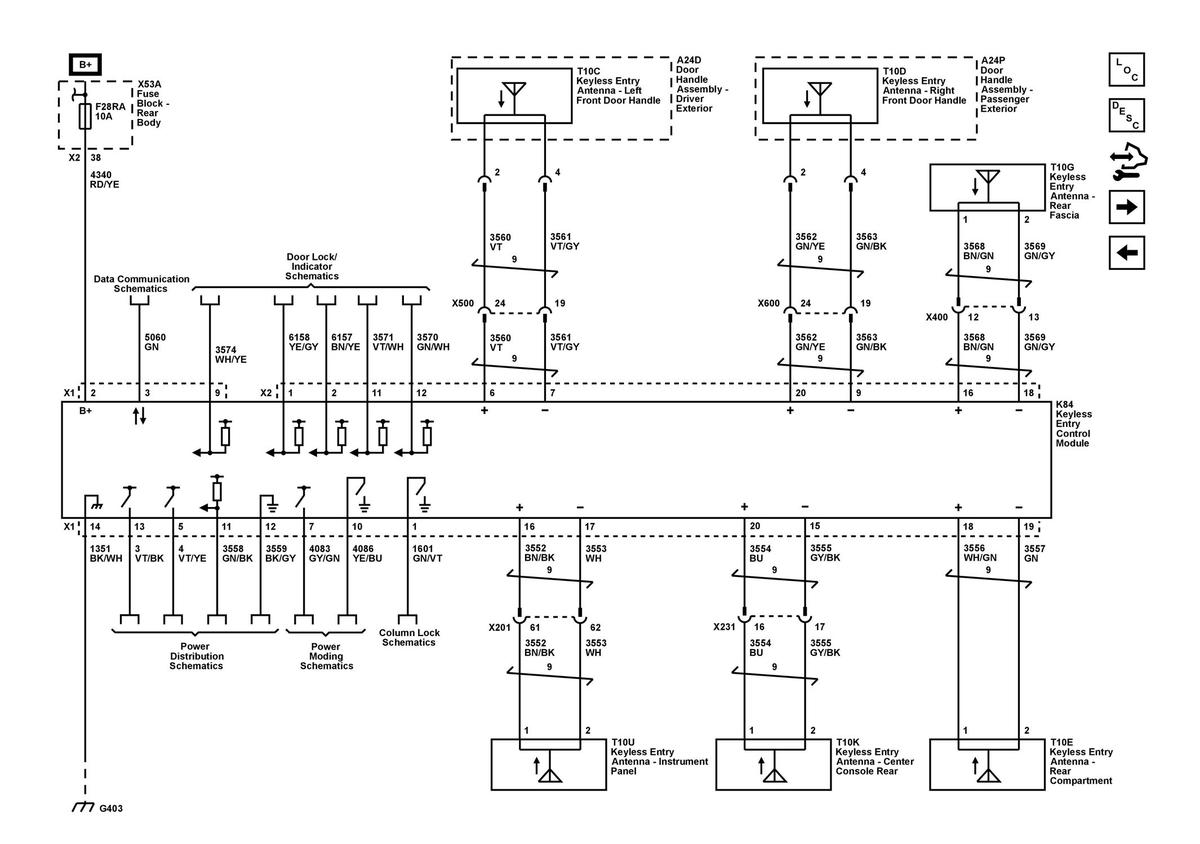

Keyless Entry - Passive and Keyless Start

GM5956829

Courtesy of GENERAL MOTORS COMPANY
