Transmission Fluid Cooler Inlet Pipe Replacement: Notes

Place a drain pan under the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Battery Tray (1) - Remove - Battery Tray Replacement
Front Compartment Air Deflector-Left Side - Remove - Front Compartment Air Deflector Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Cover or plug all open transmission fluid cooling pipe connection points to help avoid any accidental contamination.

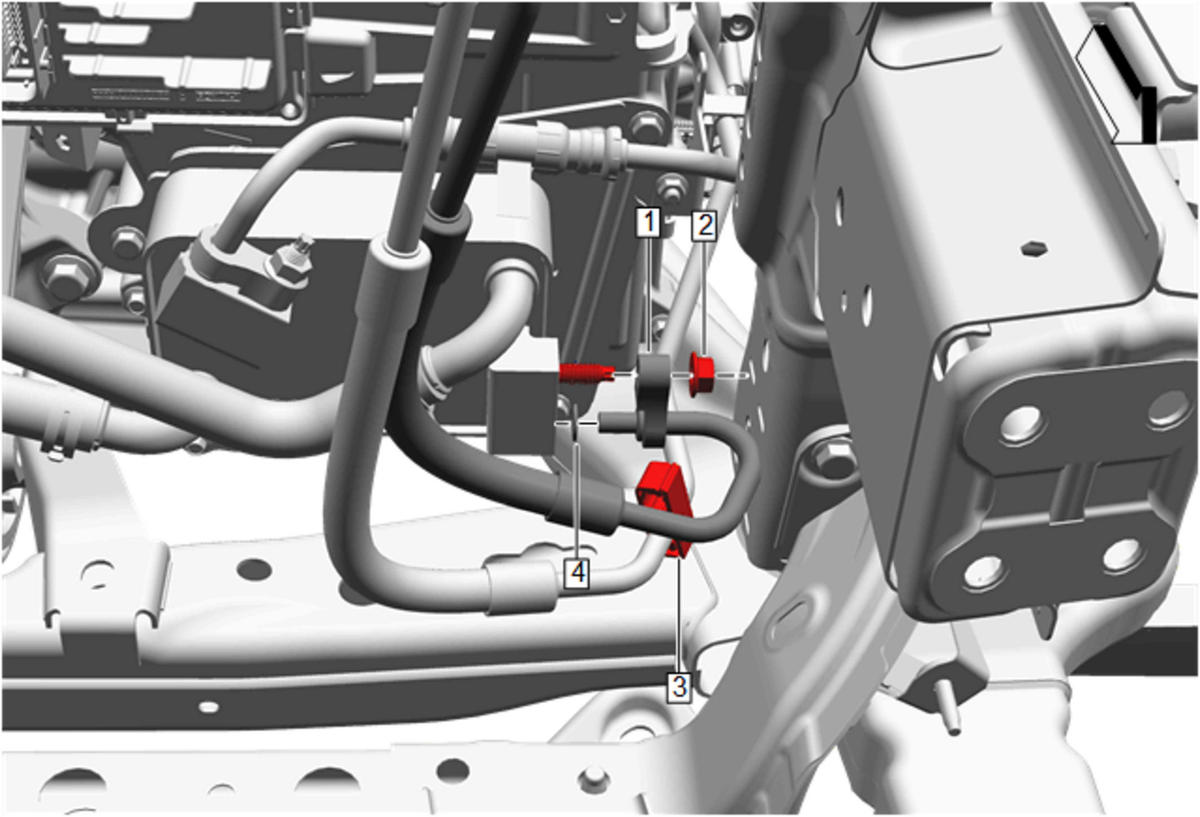

Transmission Fluid Cooler Inlet Pipe Clip (3) - Unclip
Transmission Fluid Cooler Inlet Pipe Nut (2) - Remove
Transmission Fluid Cooler Inlet Pipe (1) - Remove
Transmission Fluid Cooler Inlet Pipe Seal (4) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

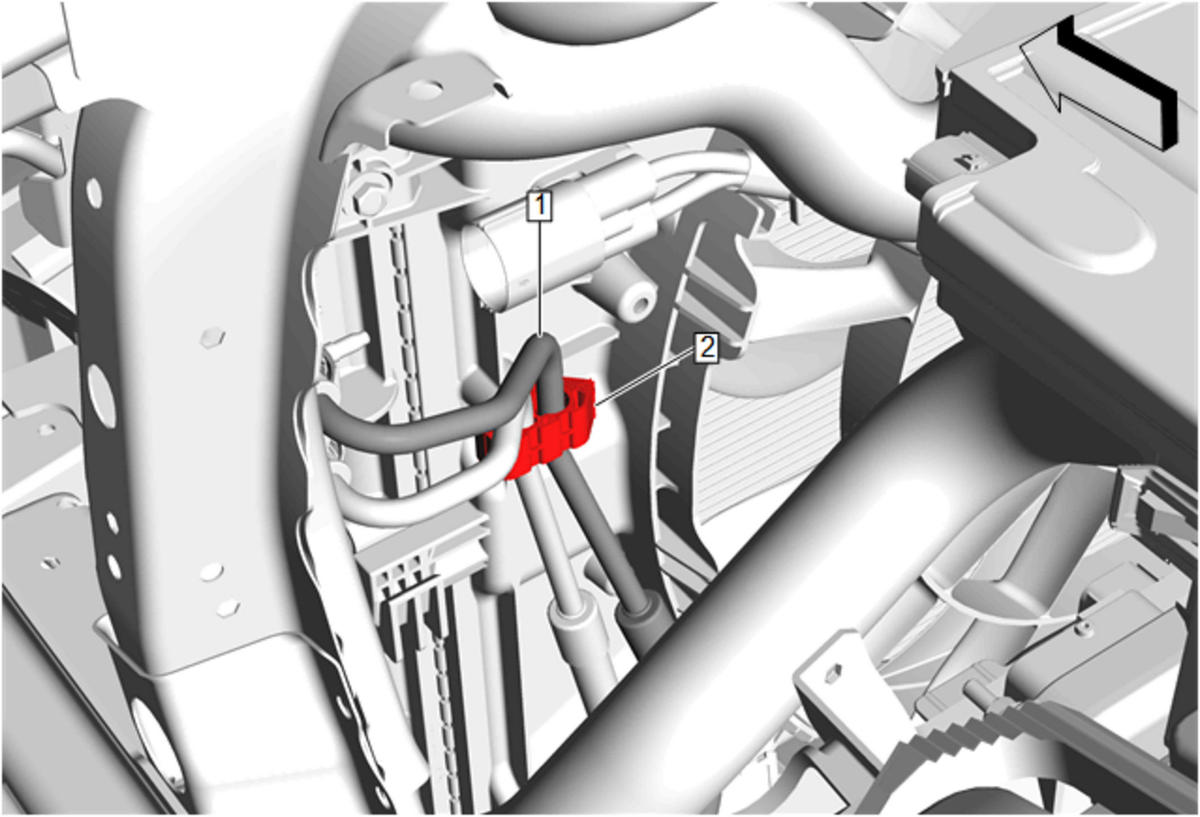

Transmission Fluid Cooler Inlet Pipe Clip (2) - Unclip
Courtesy of GENERAL MOTORS COMPANY

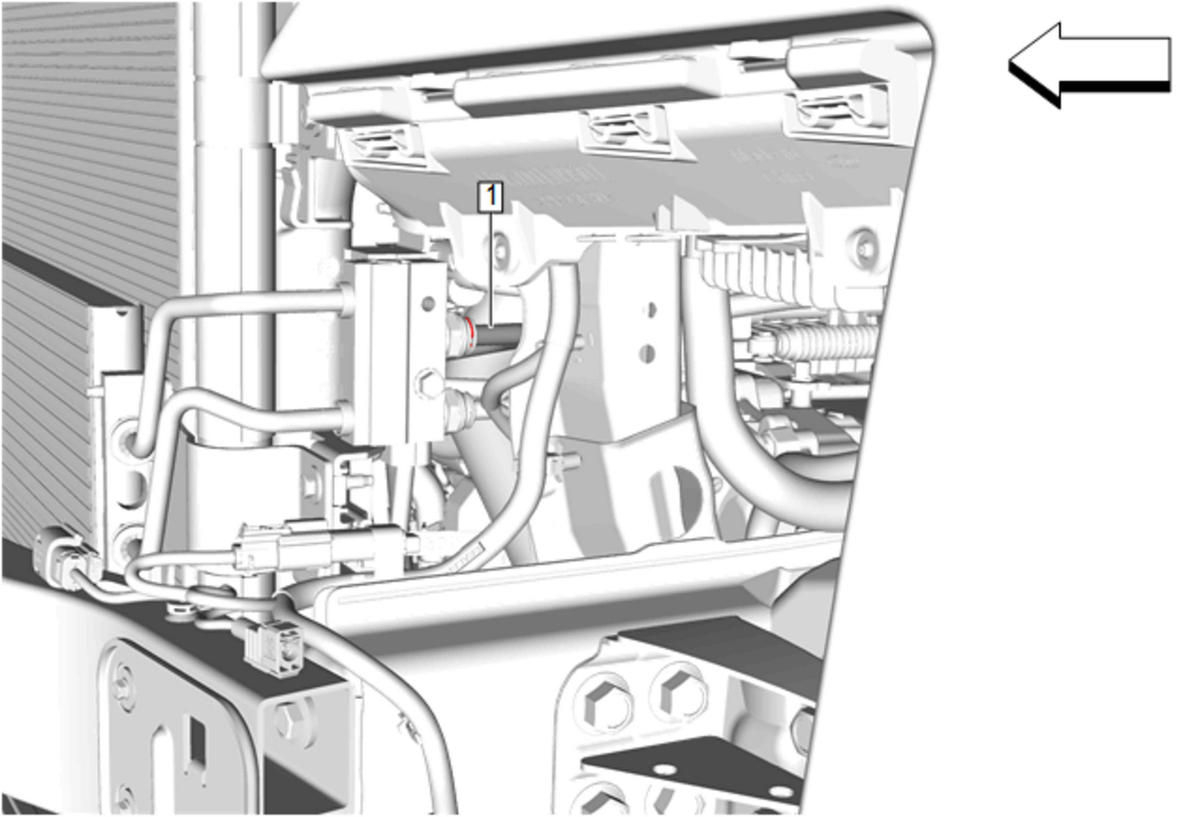

Transmission Fluid Cooler Inlet Pipe (1) - Remove - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
Remove the automatic transmission fluid cooling inlet pipe (1) from the vehicle.
