Removal Procedure

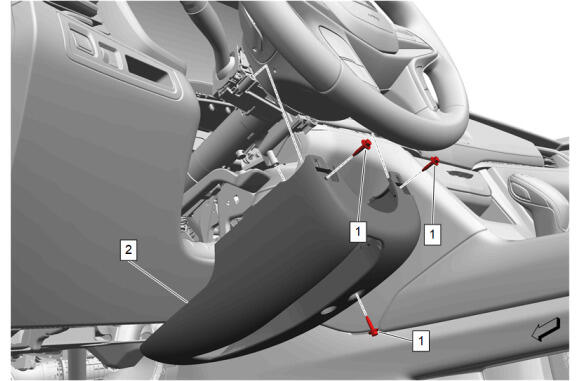

  1. GM5608222Courtesy of GENERAL MOTORS COMPANY

    Steering Column Lower Trim Cover (2) - Remove - Steering Column Lower Trim Cover Replacement (N38) , or Steering Column Lower Trim Cover Replacement (N37)

  2. GM4217301Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side (2) - Remove - Floor Front Air Outlet Duct Replacement - Left Side

  3. Instrument Panel Knee Bolster - Remove - Instrument Panel Knee Bolster Replacement
  4. GM4261099Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors. (1)

  5. Steering Column Tilt Wheel and Telescope Control Module Bolt (2) - Remove [2x]
  6. Steering Column Tilt Wheel and Telescope Control Module (3) - Remove
