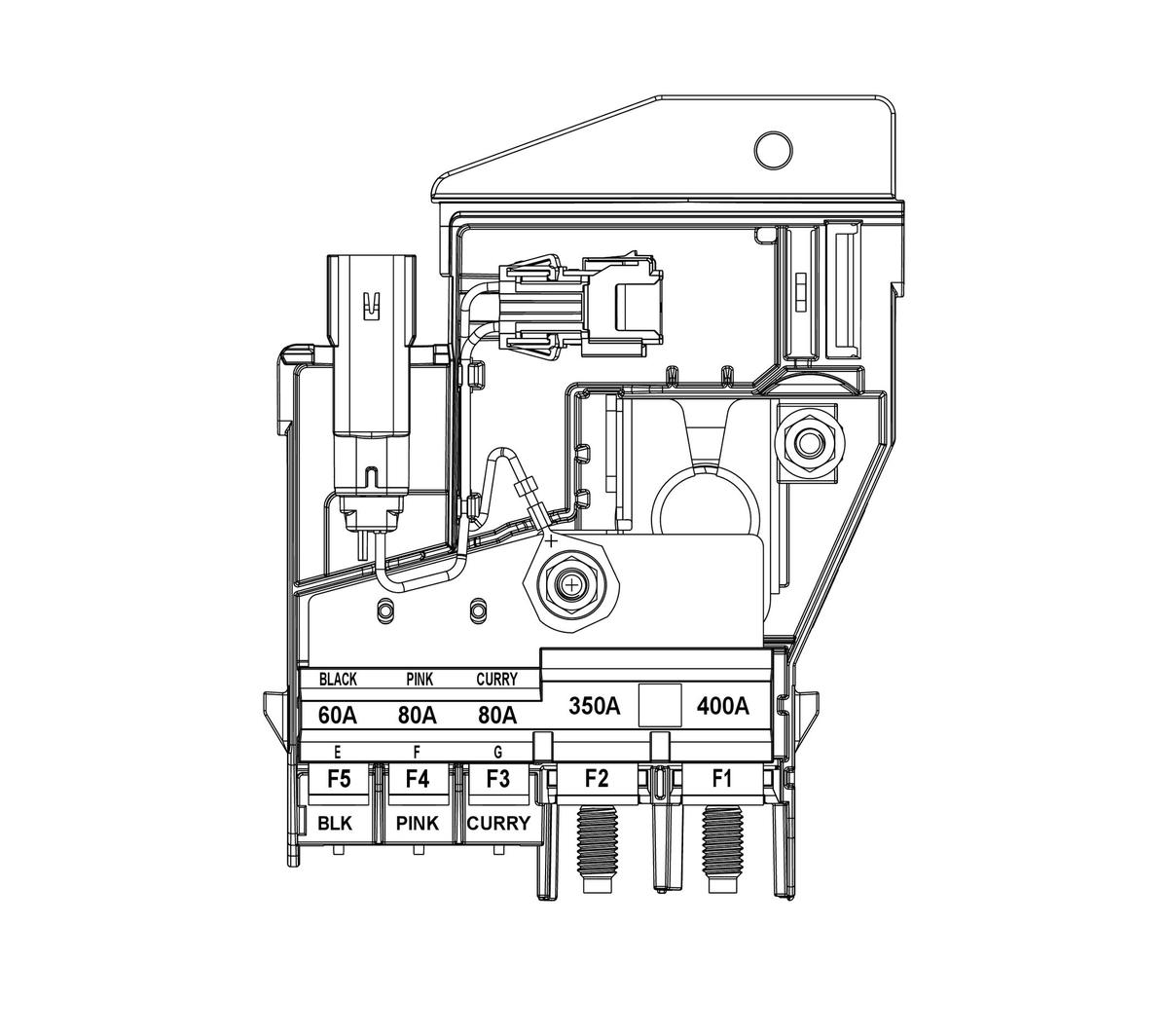

X50D Fuse Block - Battery Top View
Usage Table
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| Fuses | ||||
| 1 | - | F1UC | 400A |
|
| 2 | - | F2UC | 350A |
|
| 3 | - | F3UC | 80A |
|
| 4 | - | F4UC | 80A |
|
| 5 | - | F5UC | 60A |
|
