Removal Procedure

  1. Front Bumper Fascia Center Support - Remove - Front Bumper Fascia Center Support Replacement

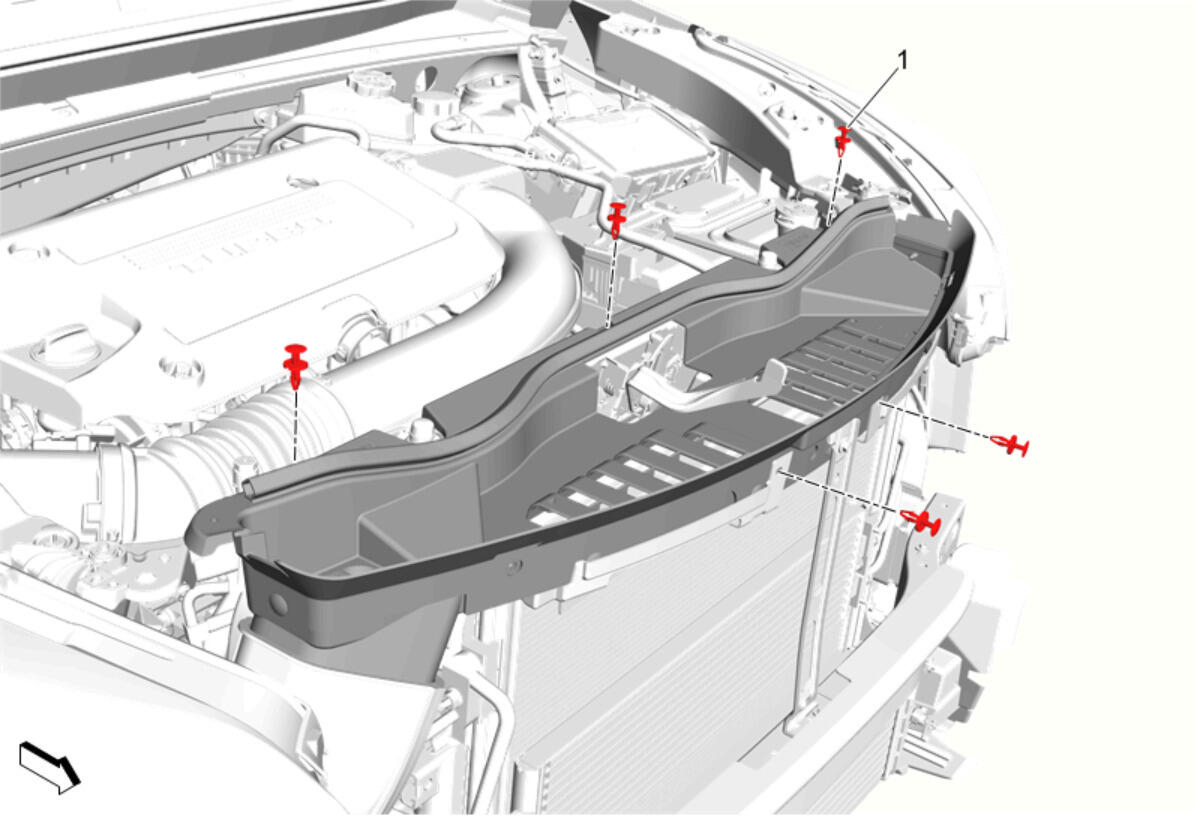

  2. GM5044039Courtesy of GENERAL MOTORS COMPANY

    Intake Air Baffle Retainer (1) - Remove [5x]

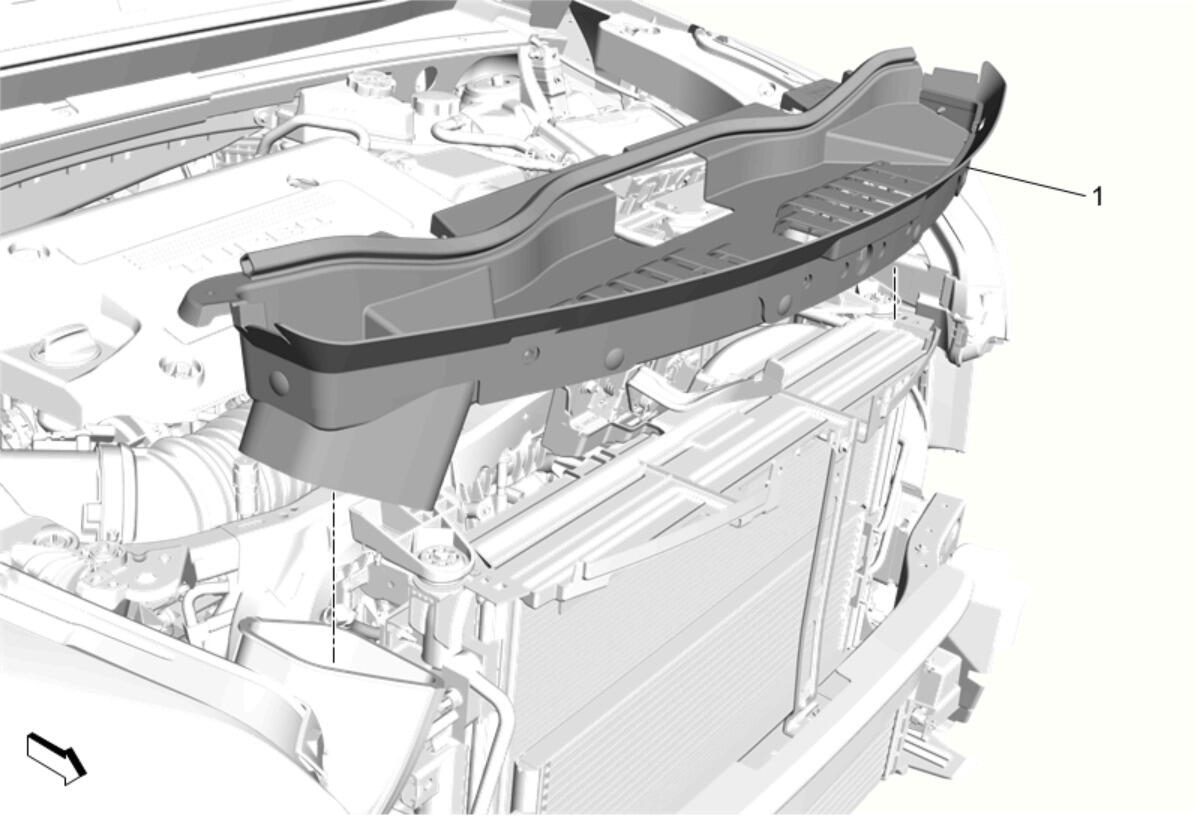

  3. GM5044042Courtesy of GENERAL MOTORS COMPANY

    Intake Air Splash Shield (1) - Remove
