Installation Procedure

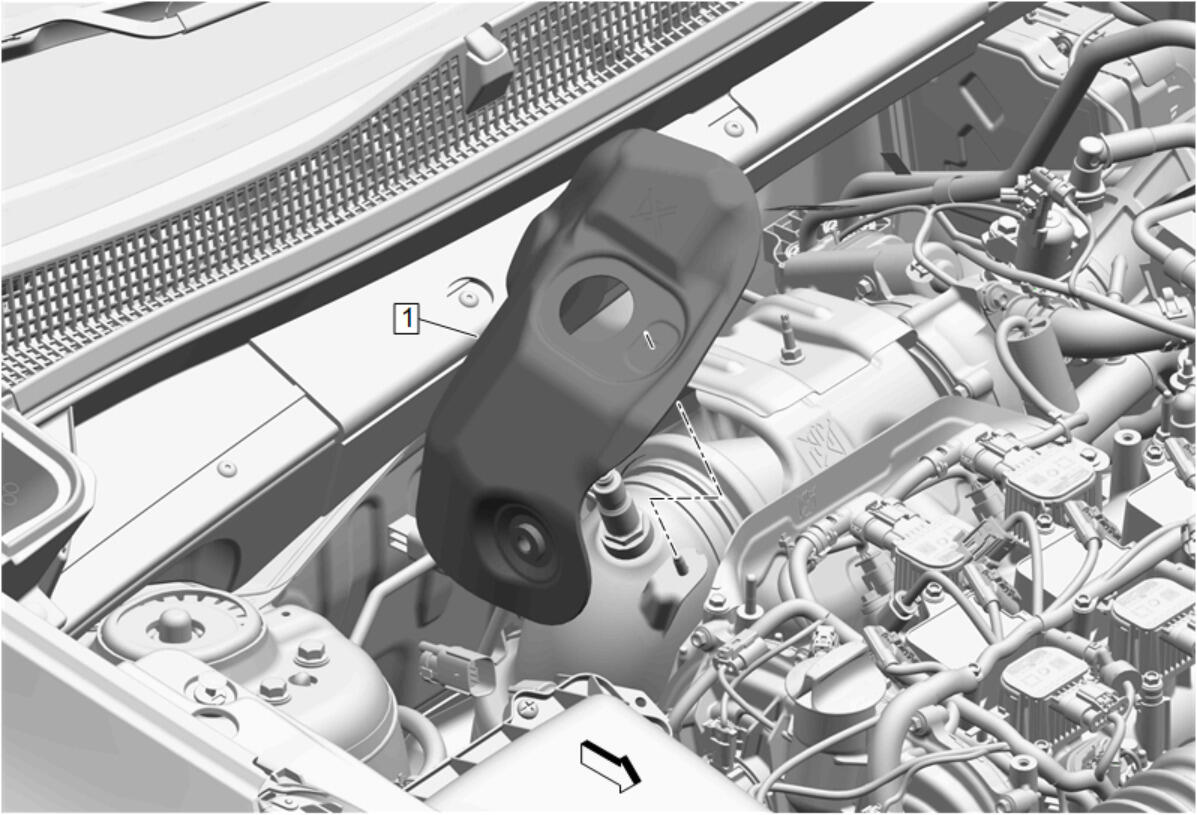

  1. GM5039695Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Heat Shield (1) - Install

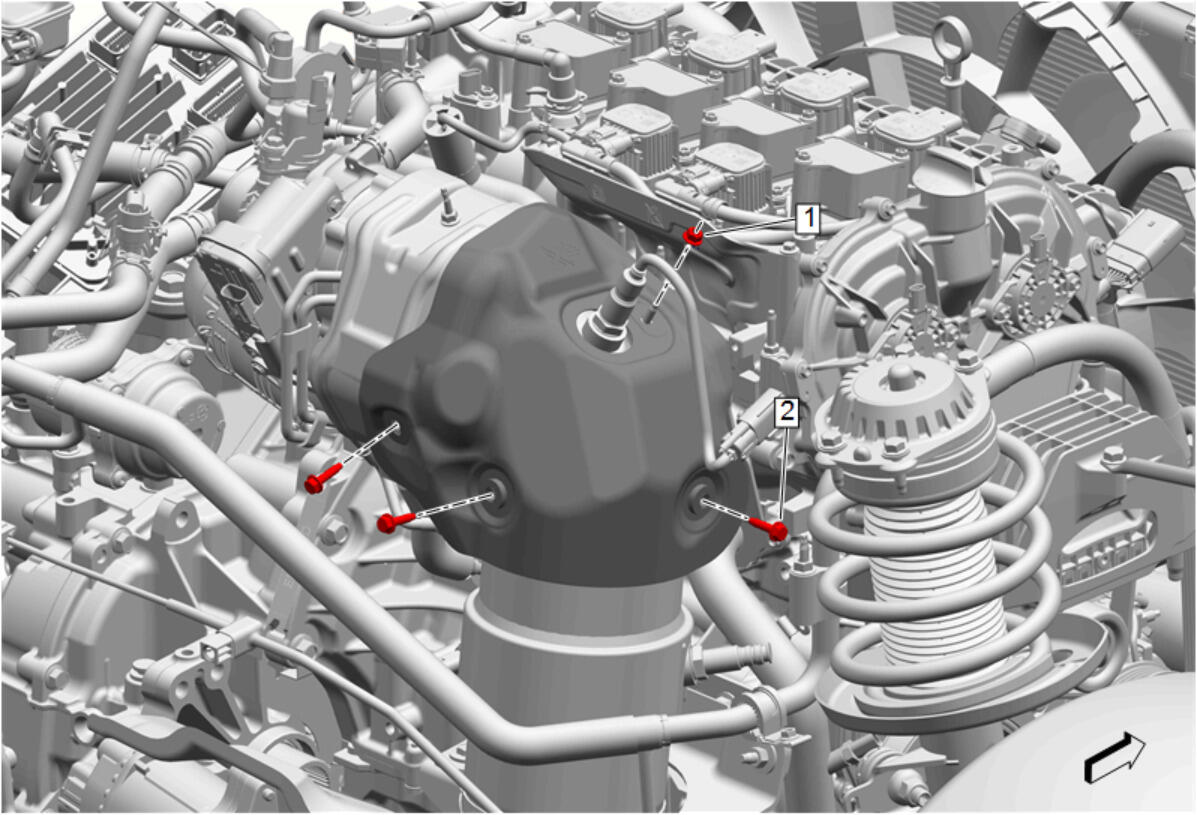

  2. GM5040459Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Catalytic Converter Heat Shield Bolt (2) - Install and tighten [3x] 9 N.m (80 lb in)

  3. Catalytic Converter Heat Shield Nut (1) - Install and tighten to 9 N.m (80 lb in)
  4. GM5035176Courtesy of GENERAL MOTORS COMPANY

    Heated Oxygen Sensor Electrical Connector (1) - Connect - Heated Oxygen Sensor Replacement - Sensor 1

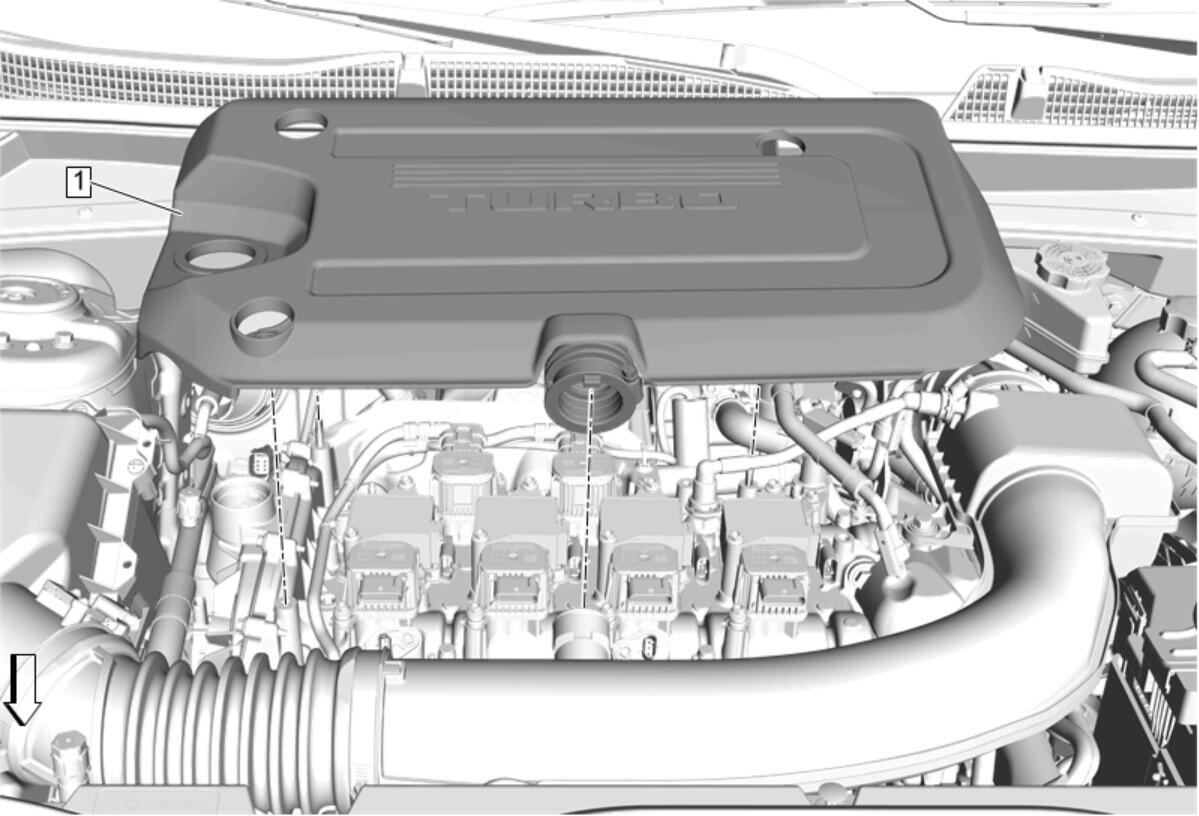

    GM5043509Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Resonator (1) - Install - Air Cleaner Outlet Resonator Replacement
