Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Place the front side door window (1) into the door frame.
Place the front side door window (1) in the full up position and tape in place.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

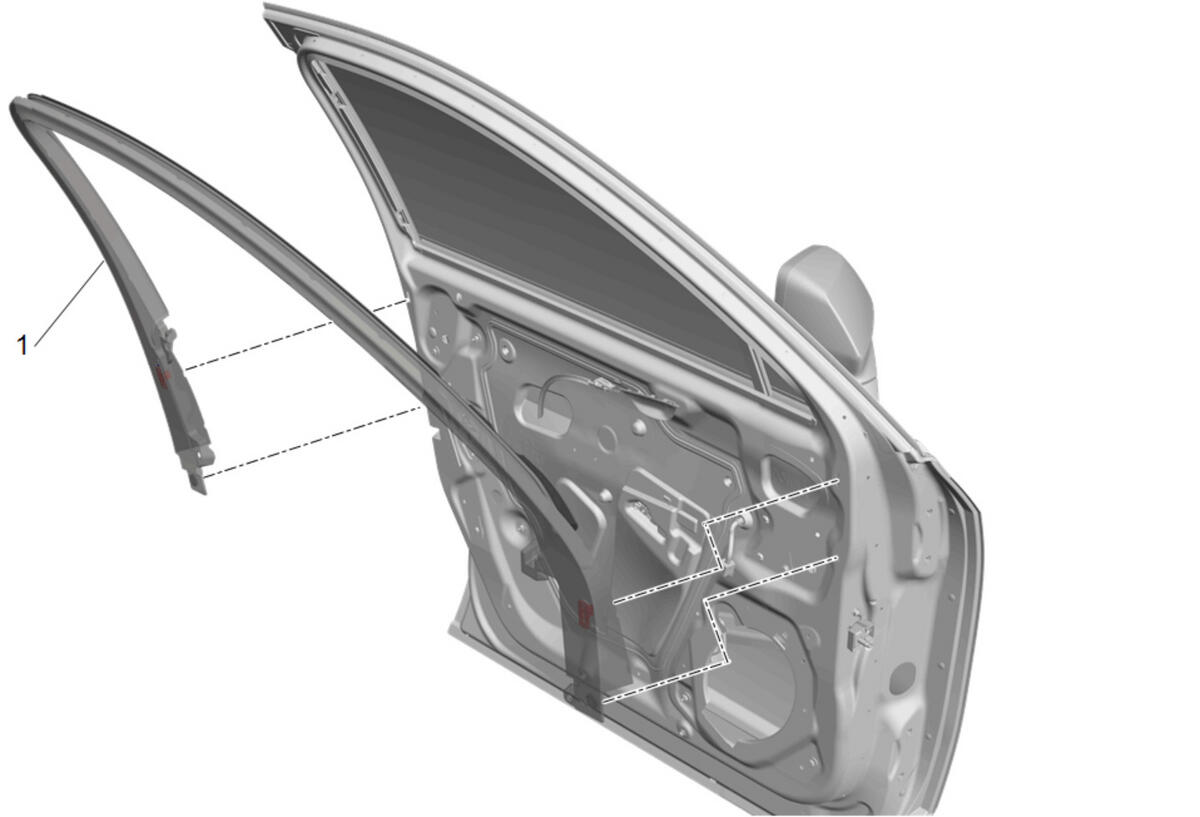

Front Side Door Window Channel Retainer Bolt (1) - Install and tighten [2x] 11 N.m (97 lb in)
Courtesy of GENERAL MOTORS COMPANY

Radio Front Side Door Speaker (2) - Install - Radio Front Side Door Speaker Replacement
Courtesy of GENERAL MOTORS COMPANY

Place the window regulator sash retainer (1) in the full up position.
Remove the tape holding the front side door window in the full up position.
Courtesy of GENERAL MOTORS COMPANY

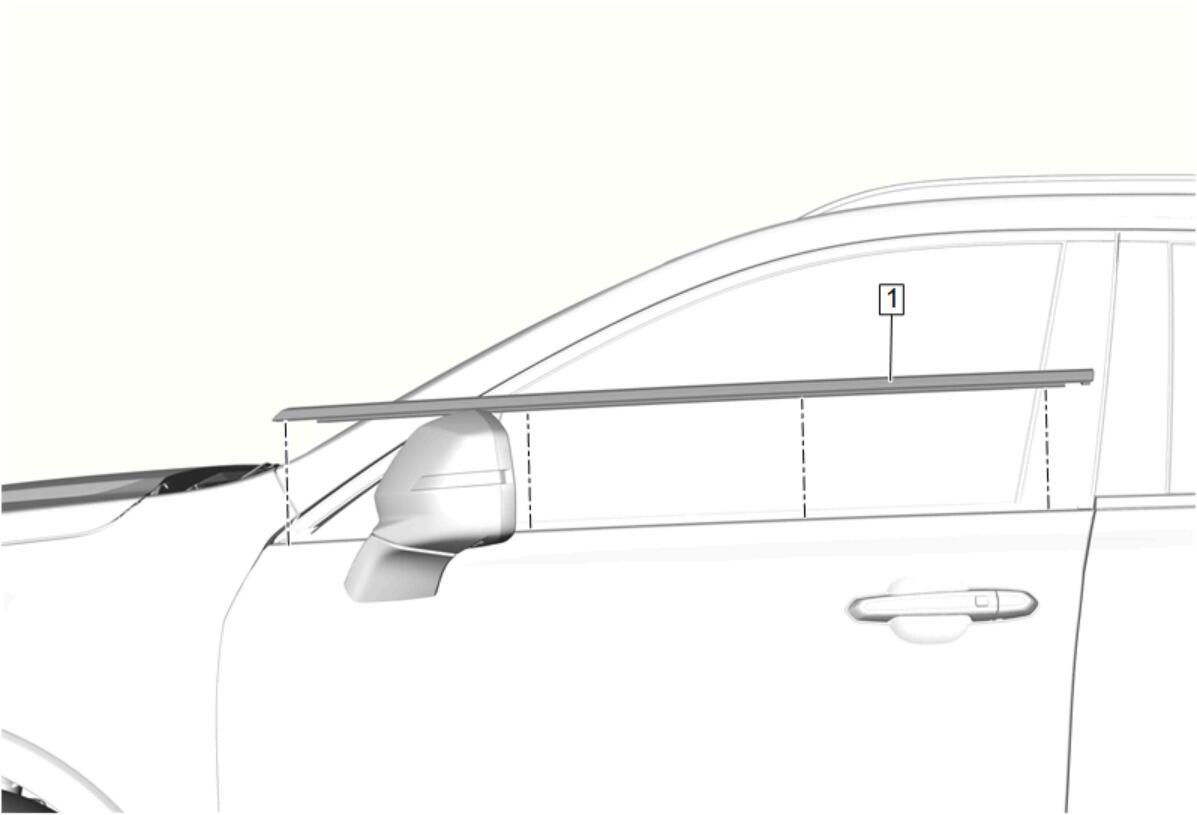

Front Side Door Window Belt Reveal Molding (1) - Install - Front Side Door Window Belt Reveal Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

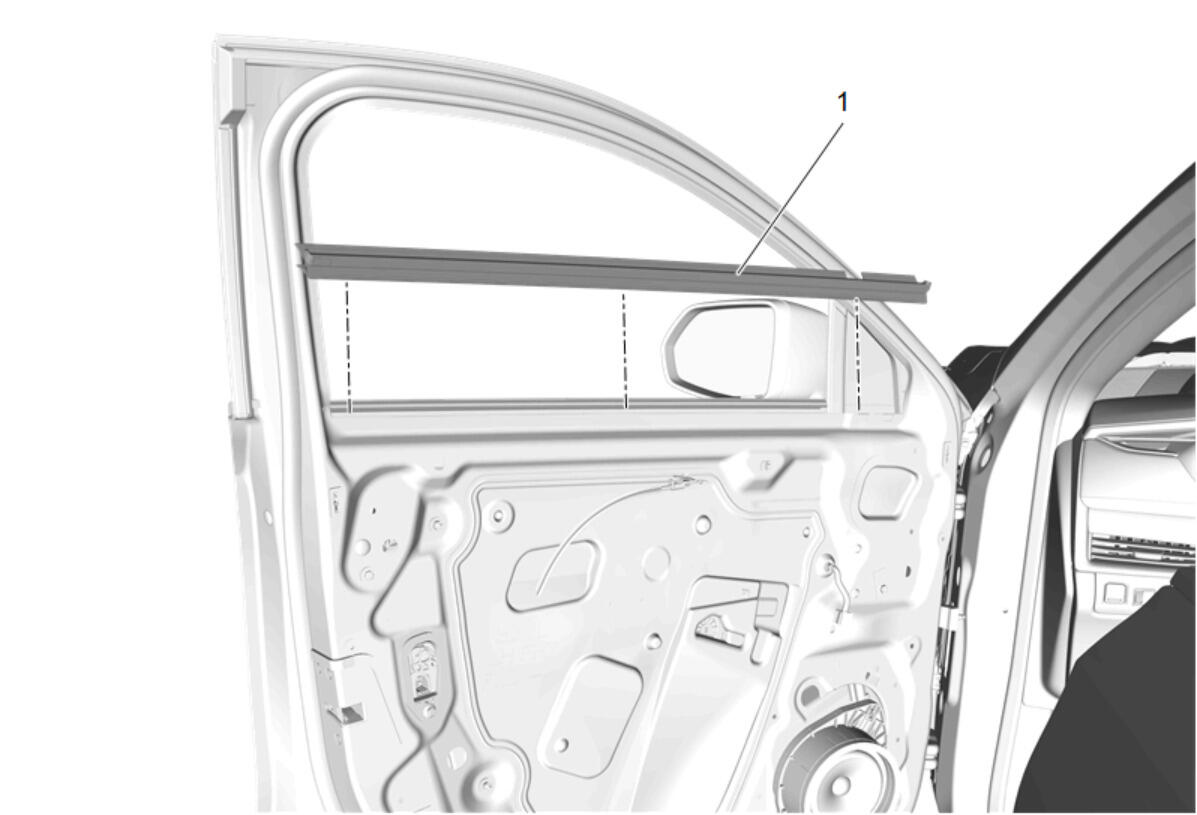

Front Side Door Inner Window Sealing Strip (1) - Install - Front Side Door Window Inner Sealing Strip Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Garnish Molding (1) - Install - Front Side Door Window Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Water Deflector (2) - Install - Front Side Door Water Deflector Replacement
Ensure the window system operates properly.
