Electronic Suspension Control Module Bracket Replacement: Installation

Courtesy of GENERAL MOTORS COMPANY

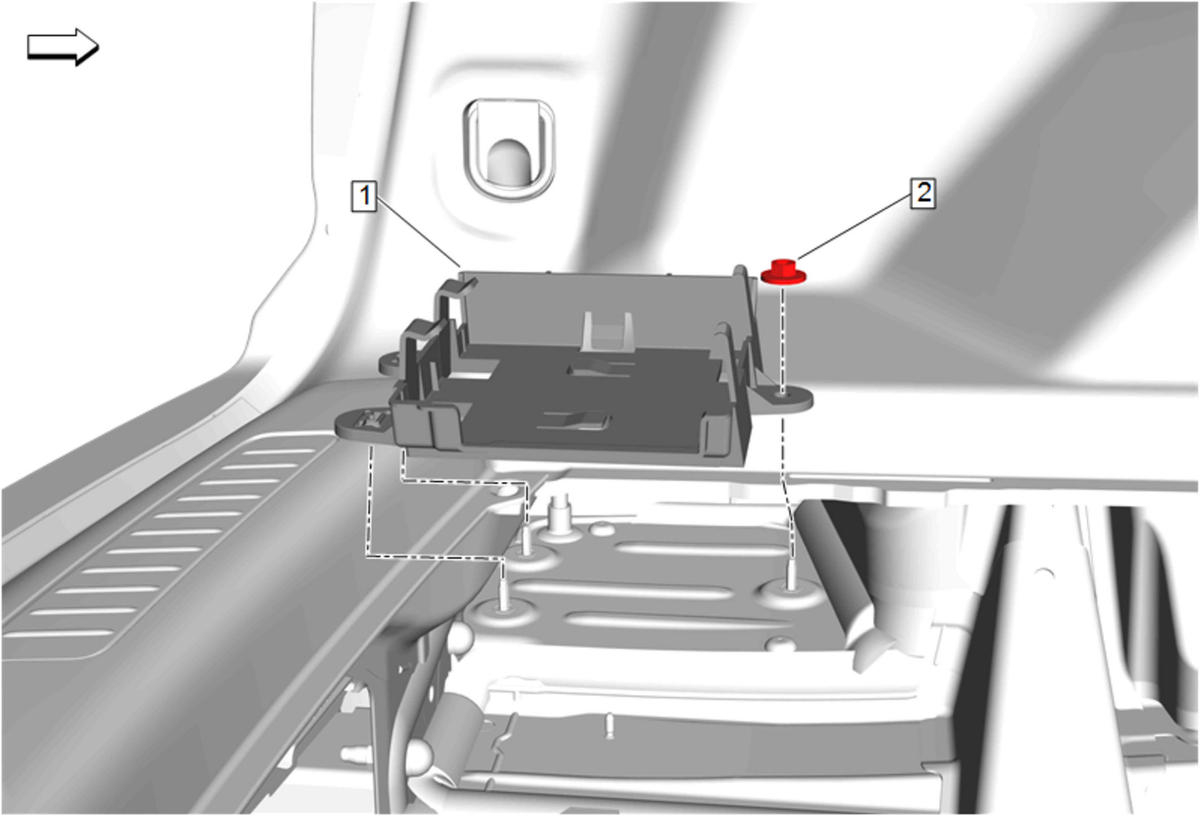

Electronic Suspension Control Module Bracket (1) - Install

CAUTION:

Electronic Suspension Control Module Bracket Nut (2) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Electronic Suspension Control Module (1) - Install - Suspension Control Module Replacement
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Stowage Trim Compartment (2) - Install - Rear Compartment Floor Stowage Trim Compartment Replacement
