Keyless Entry Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

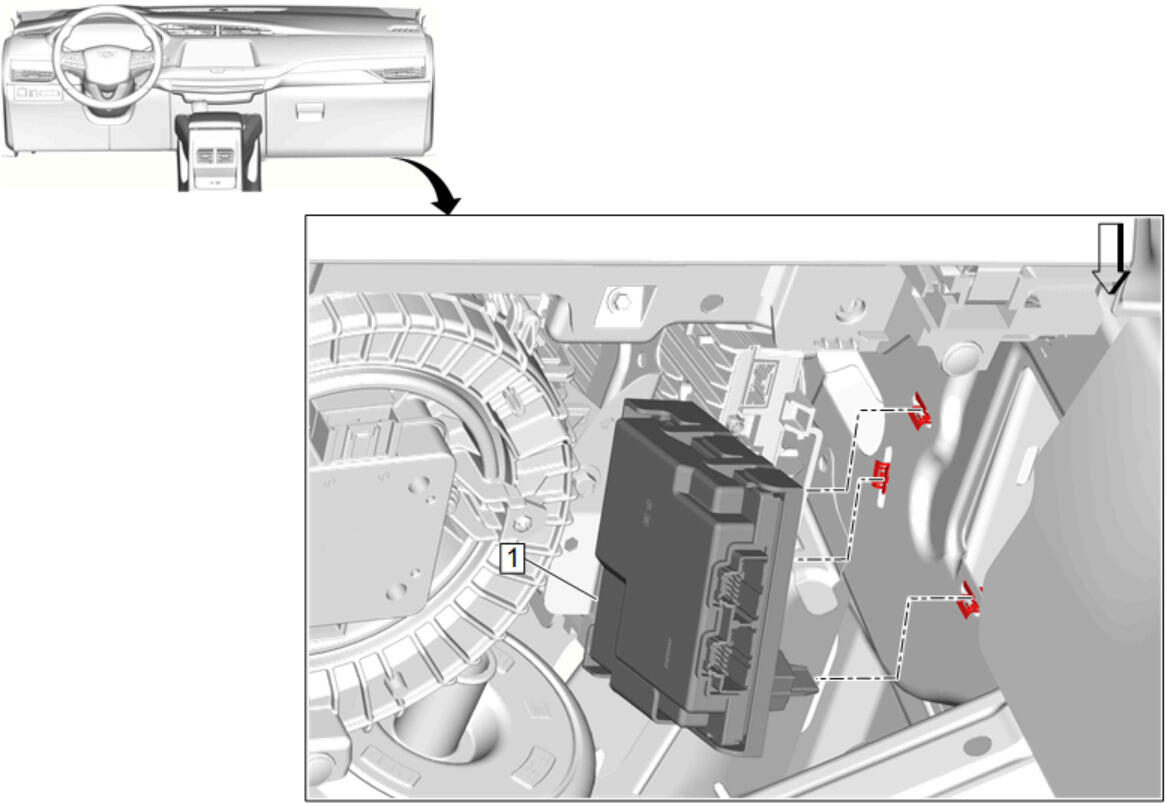

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
1	Keyless Entry Control Module Bracket Procedure Disconnect the electrical connectors. Using a flat-bladed plastic trim tool, release the retaining clips. Transfer components as necessary.

Callout

Component Name

Keyless Entry Control Module Bracket

Procedure
