Fastener Specifications
NOTE:
Callouts items in the following chart represent components shown in graphic above.
Accelerator Pedal
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Accelerator Pedal Lever Bolt [2x] | - | - | 6 N.m (53 lb in) | Accelerator Pedal Replacement |
NOTE:
Callouts items in the following chart represent components shown in graphic above.

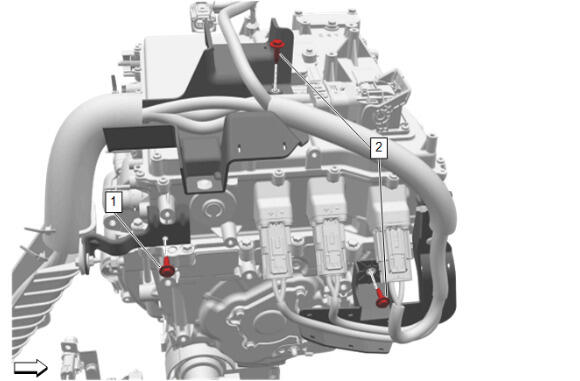

Drive Motor Power Distribution Control Module - Brackets
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Wiring Harness Bracket Bolt | - | - | 9 N.m (80 lb in) | Drive Motor Power Distribution Control Module Replacement |
| 2 | Engine Wiring Harness Conduit Bolt [2x] | - | - | 9 N.m (80 lb in) | Drive Motor Power Distribution Control Module Replacement |
NOTE:
Callouts items in the following chart represent components shown in graphic above.

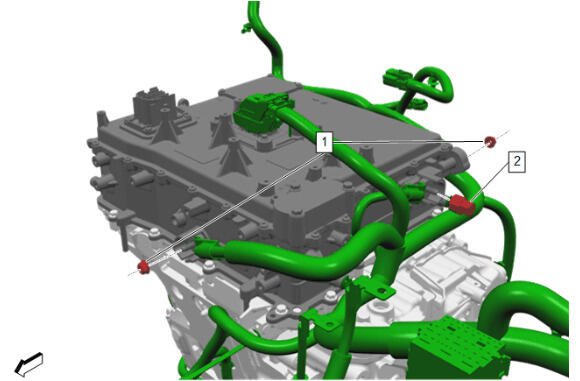

Drive Motor Power Distribution Control Module - Wiring Harness Terminals
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Engine Wiring Harness Ground Nut [2x] | - | - | 22 N.m (16 lb ft) | Drive Motor Power Distribution Control Module Replacement |
| 2 | Engine Wiring Harness Battery Lead Nut | - | - | 22 N.m (16 lb ft) | Drive Motor Power Distribution Control Module Replacement |
NOTE:
Callouts items in the following chart represent components shown in graphic above.

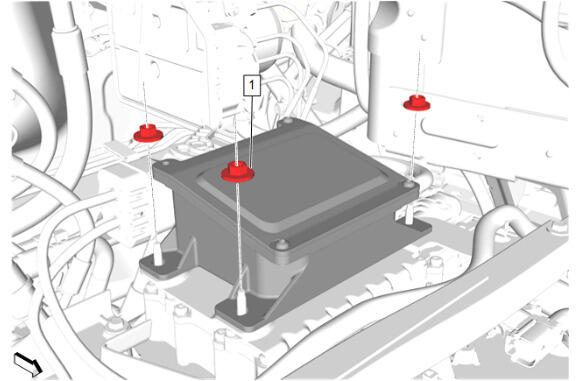

Hybrid/Electric Vehicle Battery Cut-Off Actuator
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Power Distribution Control Module Pyro Switch Nut [3x] | - | - | 9 N.m (80 lb in) | Hybrid/Electric Vehicle Battery Cut-Off Actuator Replacement |
