Installation Procedure

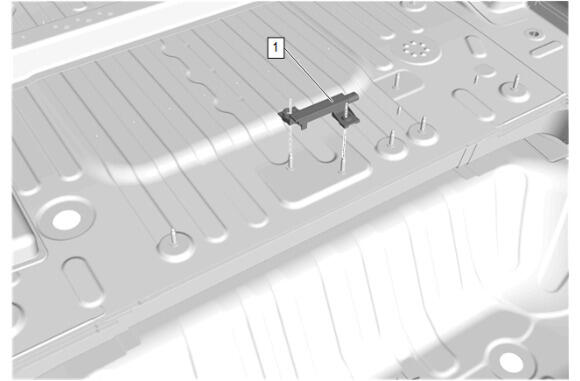

  1. GM5950985Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Rear Compartment Antenna (1) - Install

  2. Connect the electrical connector.

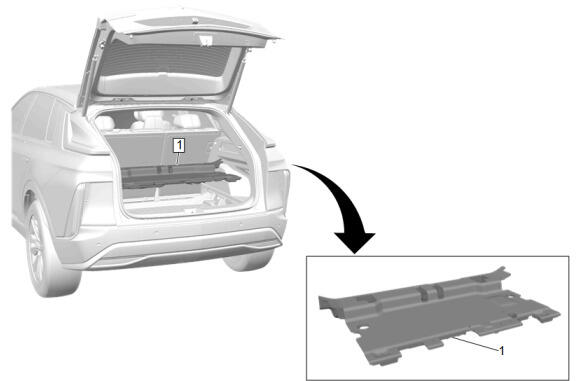

  3. GM5957615Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Panel Front Trim (1) - Install

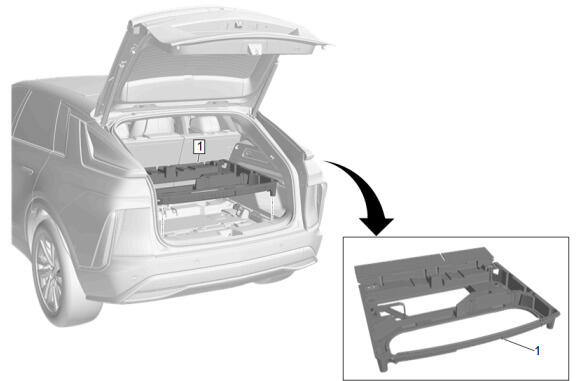

  4. GM5956097Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Stowage Compartment Tray (1) - Install

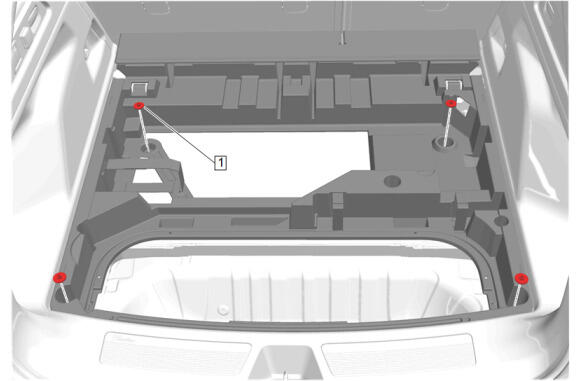

  5. GM5966583Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Rear Compartment Floor Stowage Compartment Retainer (1) - Install and tighten [4x] - Fastener Specifications

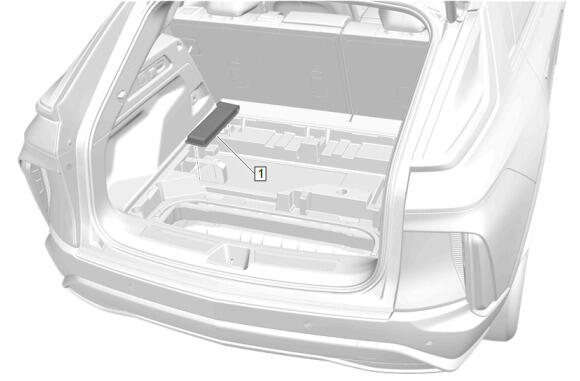

  6. GM5966581Courtesy of GENERAL MOTORS COMPANY

    Tow Eye (1) - Install

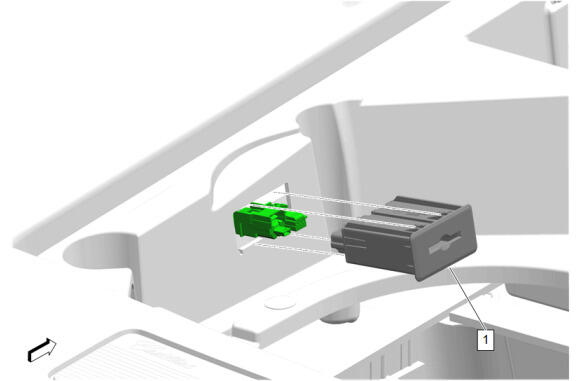

  7. GM6154833Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Card Reader Receptacle - Connect

  8. Card Reader Receptacle (2) - Install
  9. Ensure that the retaining tabs are fully secured.

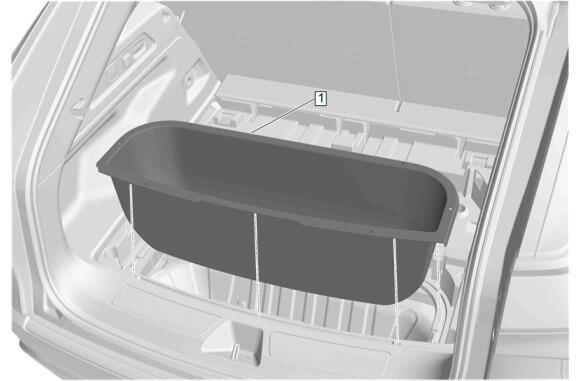

  10. GM5956098Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Stowage Trim Compartment (1) - Install

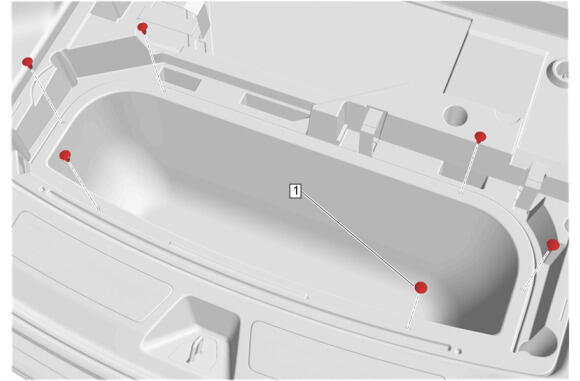

  11. GM5956095Courtesy of GENERAL MOTORS COMPANY

    Load Floor Stowage Compartment Cover Retainer (1) - Install [6x]

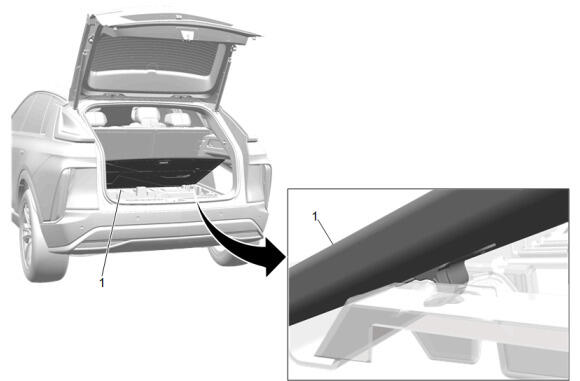

  12. GM5956096Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The load floor stowage compartment cover (1) is retained by two integral hooks attaching it to the rear compartment floor stowage compartment tray.

    Load Floor Stowage Compartment Cover (1) - Install

  13. GM5951832Courtesy of GENERAL MOTORS COMPANY

    Luggage Shade (1) - Install
