Installation Procedure

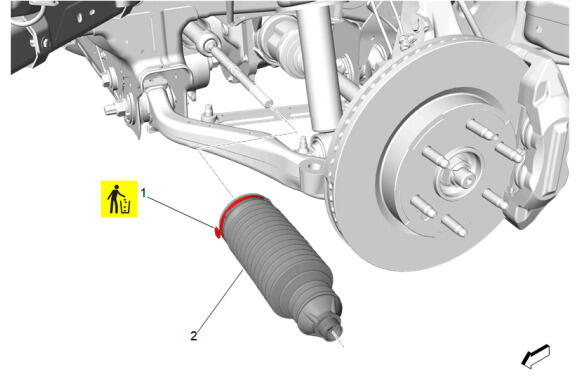

Position a NEW steering gear boot inner clamp (1) on the steering gear boot (2).
- Steering Gear Boot (2) - Install

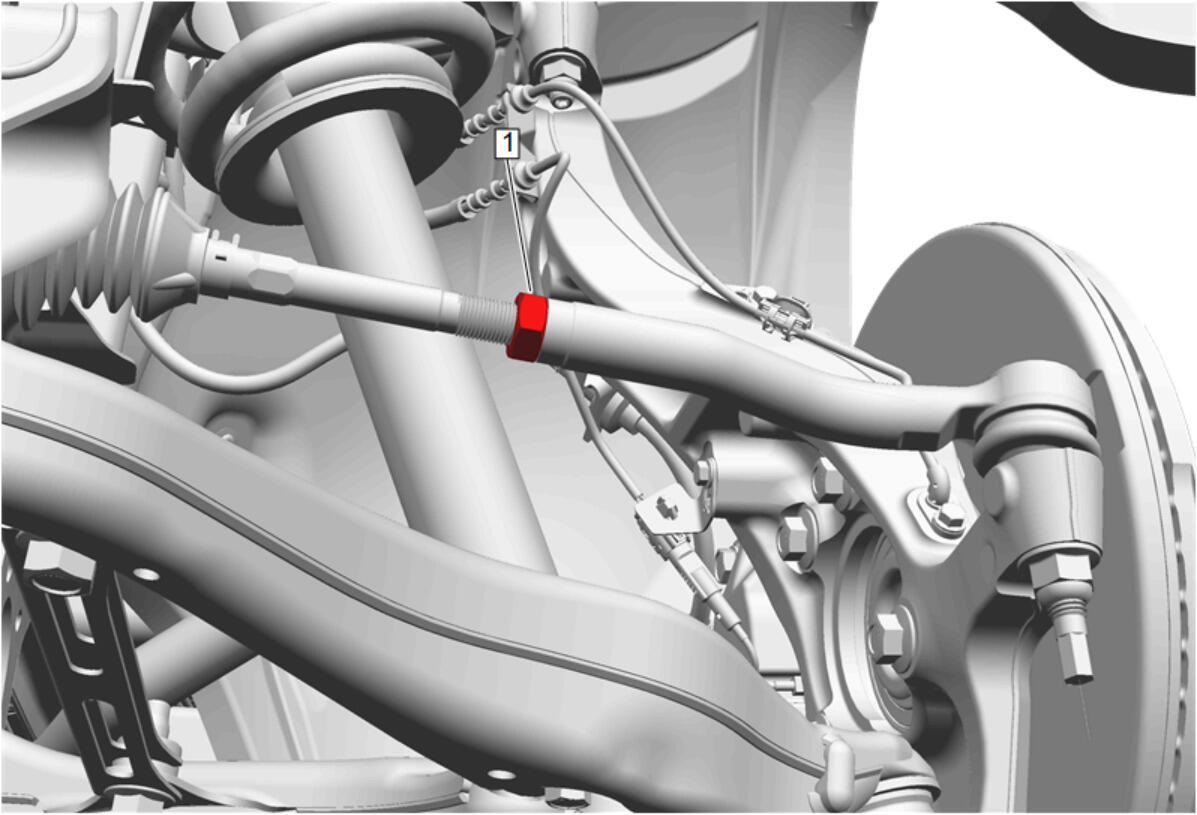

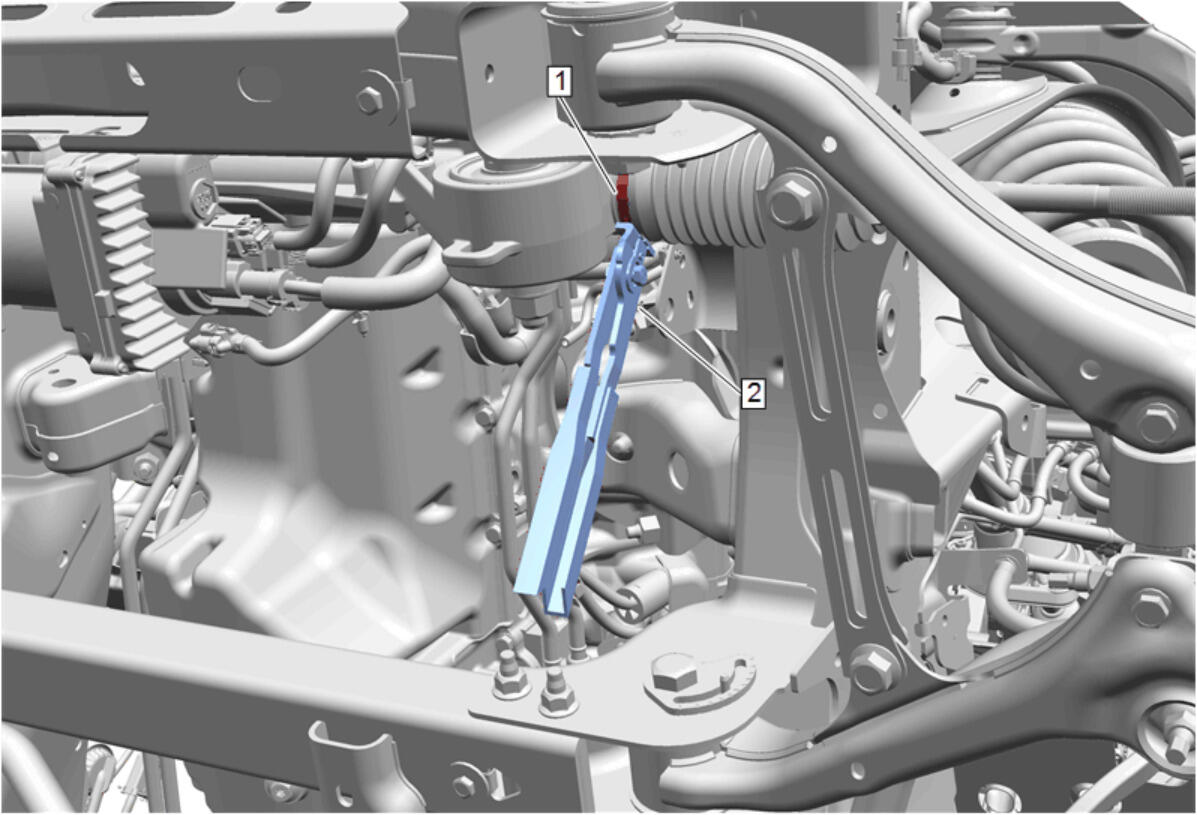

Steering Gear Boot Clamp (1) - Tighten- use CH-22610 Keystone Clamp Pliers (2)
Steering Gear Boot Outer Clamp (1) - Install

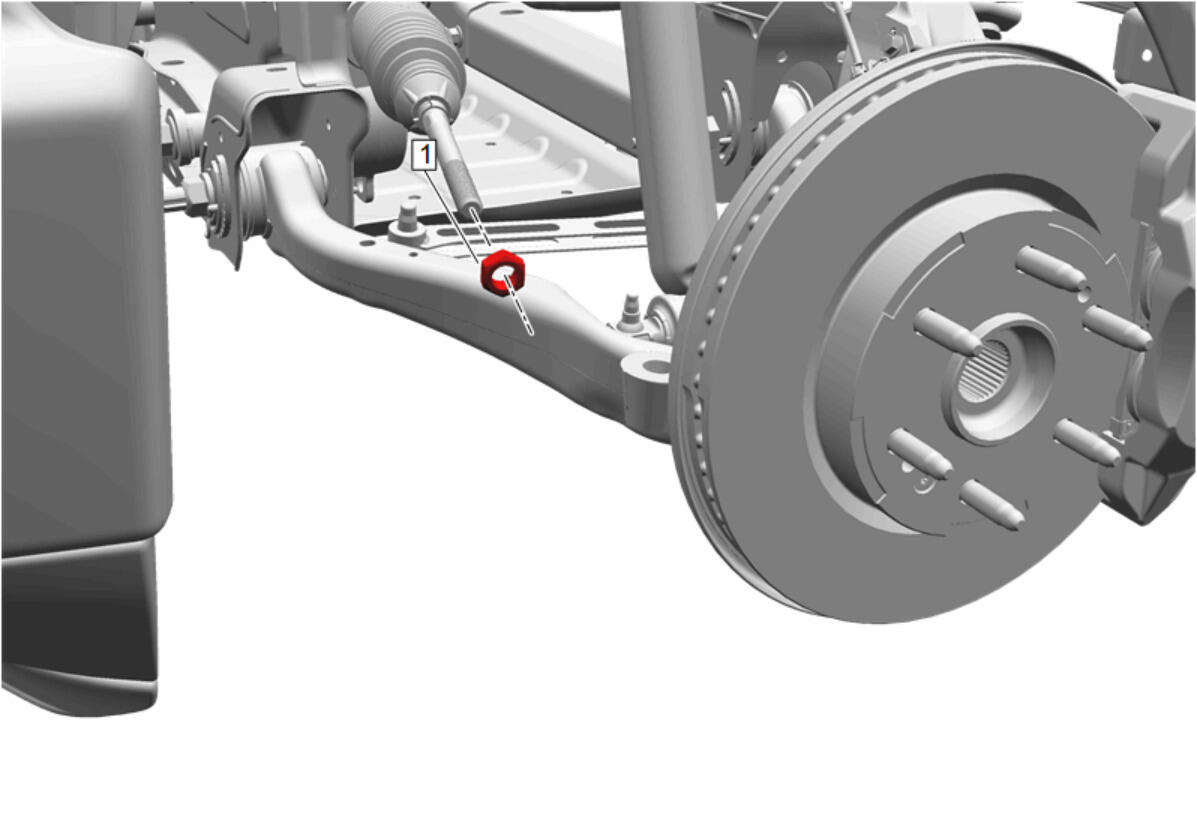

Install the steering linkage inner tie rod nut (1) until aligned with the previously placed matched mark on the steering linkage inner tie rod.
- CAUTION:
Ensure the Outer Tie Rod Boot is not twisted or deformed during assembly. If the boot is twisted or deformed, damage to the boot will occur.
If reusing the steering linkage outer tie rod (1), add a small amount of grease on the lip of the rubber boot seal to prevent twisting or deforming of the boot. Do NOT apply grease to the ball joint stud. Adhesives, Fluids, Lubricants, and Sealers

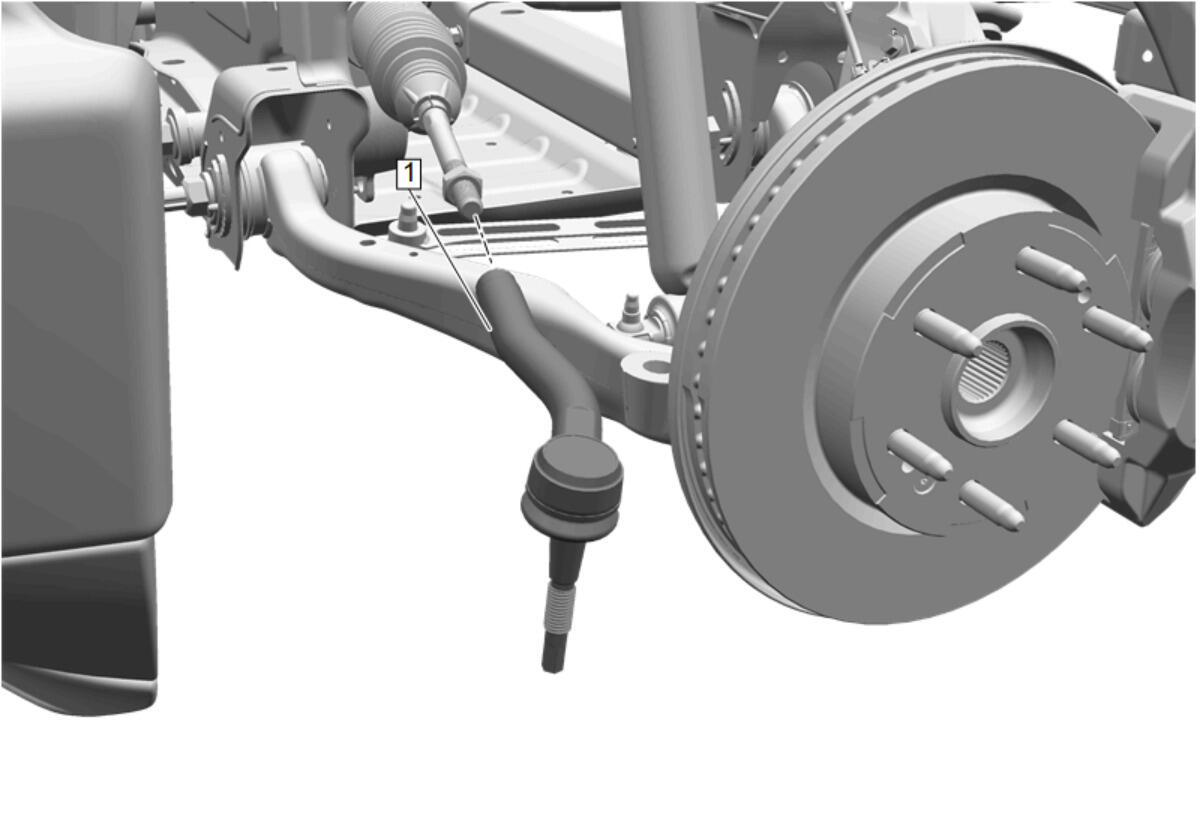

- Steering Linkage Outer Tie Rod (1) - Install
- CAUTION:

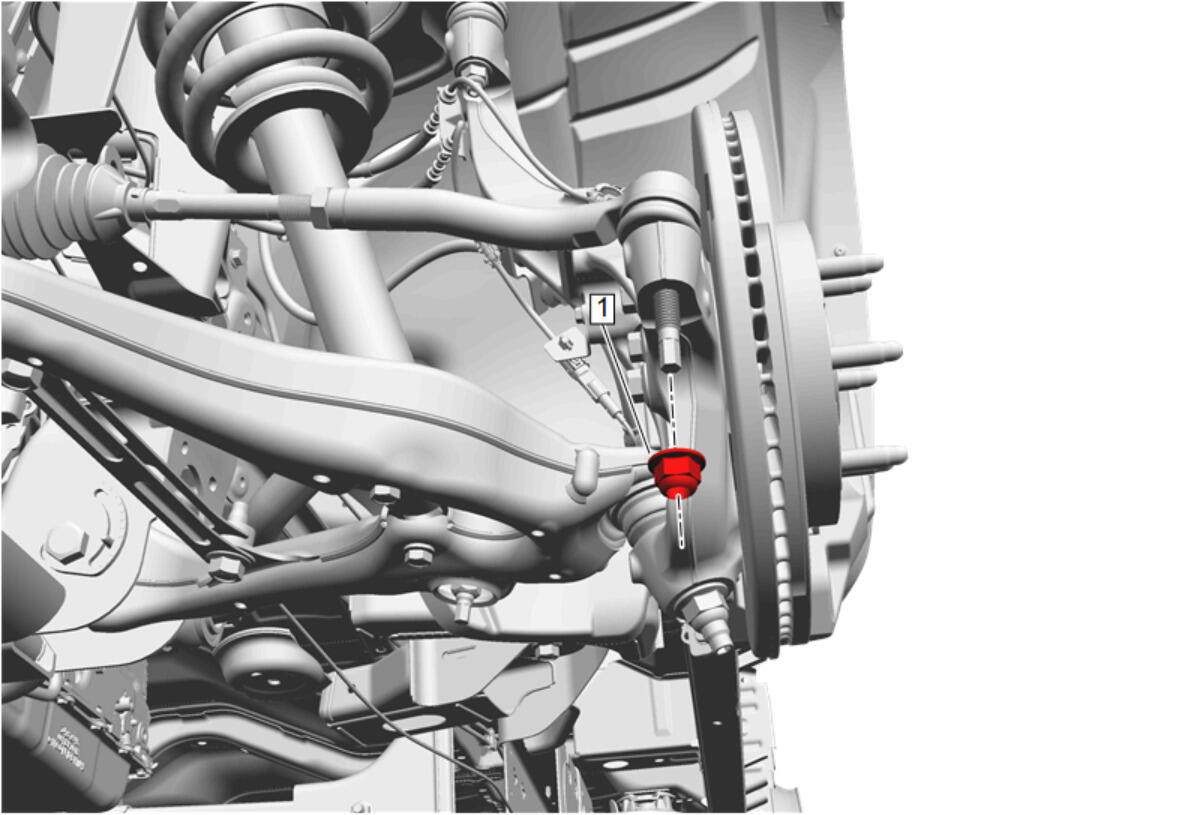

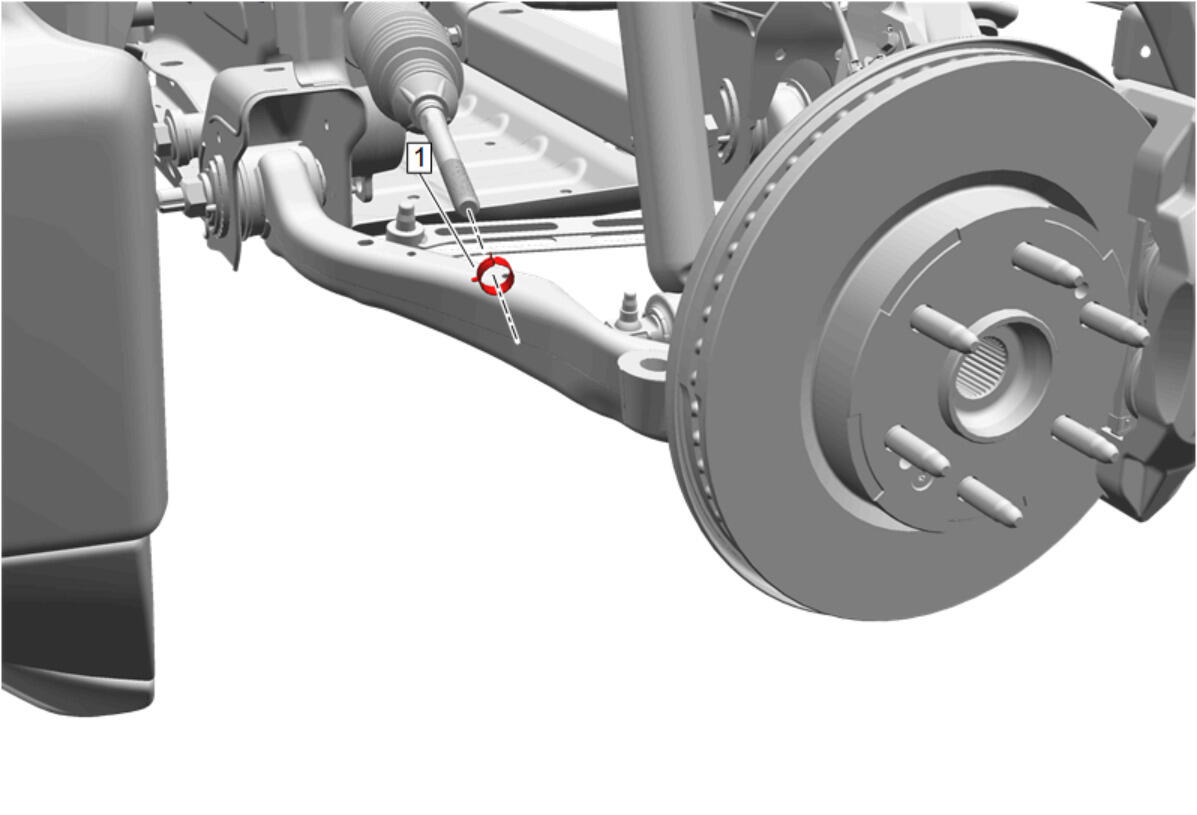

Steering Linkage Outer Tie Rod Nut (1) - Install and tighten - Fastener Specifications
Tighten the steering linkage inner tie rod nut (1) during the front toe adjustment procedure.
Underbody Skid Shield (2) - Install
- Underbody Skid Shield Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Lower the vehicle.
- Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
