Installation Procedure

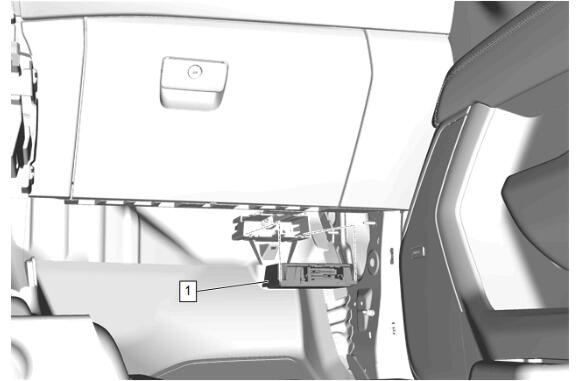

  1. GM5581621Courtesy of GENERAL MOTORS COMPANY

    Multifunction Power Supply Converter (1) - Install

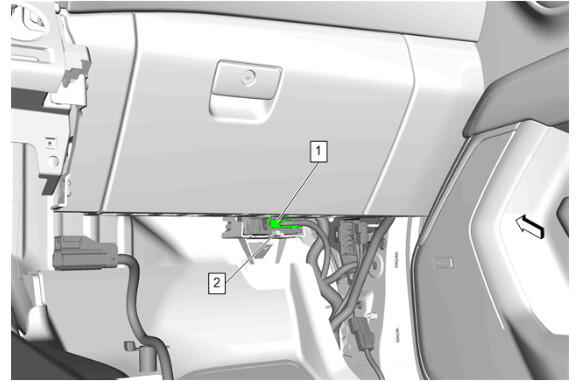

  2. GM5581603Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  3. Retaining Tab (2) - Engage
  4. GM5518378Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Instrument Panel Lower Trim Panel Insulator (1) - Install

  5. GM5518377Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Instrument Panel Lower Insulator Retainer (1) - Install [3x]

  6. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
