Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Generator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

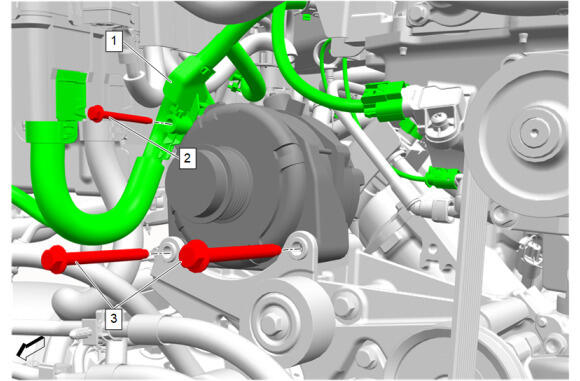

Generator Bolt (3) - Install and tighten [2x] - Fastener Specifications
Engine Wiring Harness (1) - Reposition
Engine Wiring Harness Bracket Bolt (2) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

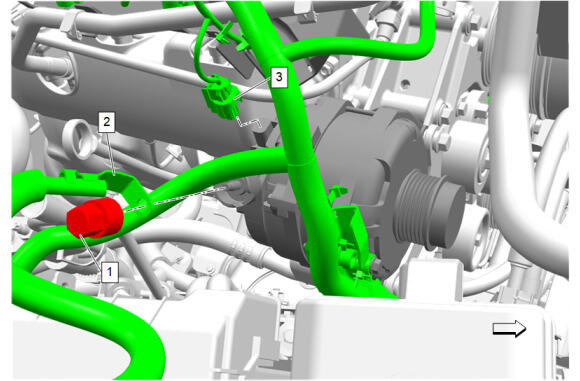

Starter Solenoid Cable (2) - Install
Battery Positive Cable Nut (1) - Install and tighten - Fastener Specifications
Electrical Connector (3) - Connect
Courtesy of GENERAL MOTORS COMPANY

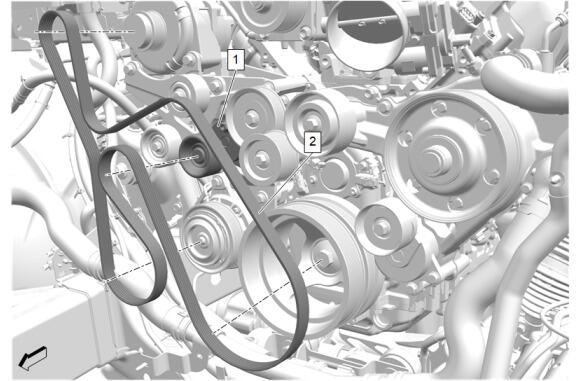

NOTE:
Some components not shown for graphic clarity.

Using a suitable tool, rotate the drive belt tensioner (1) counterclockwise to release accessory drive primary belt (2) tension.
Install accessory drive primary belt (2) around all the pulleys.
Slowly release the drive belt tensioner (1).
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
