Installation Procedure
Generator Bolt (1) - Loosely install
Generator (1) - Install
- CAUTION:
Refer to Fastener Caution
Generator Bolt (2) - Install and tighten - Fastener Specifications
- Generator Bolt (1) - Install and tighten - Fastener Specifications
Generator Battery Jumper Cable (2) - Install
- Battery Positive Cable Nut (1) - Install and tighten - Fastener Specifications
Electrical Connector (1) - Connect
Engine Wiring Harness Bracket (4) - Install
- Engine Wiring Harness Bracket Bolt (3) - Install and tighten - Fastener Specifications
- Engine Wiring Harness Retainer (2) - Install [2x]
- Radiator Inlet Hose Clip (1) - Clip
Drive Belt Idler Pulley (1) - Install and tighten - Fastener Specifications
Install the accessory drive primary belt (2) to the vehicle.
- Install the accessory drive primary belt (2) around all pulleys.
- Rotate the accessory drive primary belt tensioner (1) clockwise.
Air Conditioning Compressor and Condenser Hose (1) - Install
- Air Conditioning Compressor and Condenser Hose Clip (2) - Clip [4x]
- Attach harness retainers as necessary.
Transmission Fluid Cooler Pipe Clip (1) @Engine Coolant Fan Rear Shroud - Install [2x]
Engine Front Cover (2) - Install
- Engine Front Cover Bolt (1) - Install - Fastener Specifications
Charge Air Cooler Coolant Reservoir (2) - Install
- Charge Air Cooler Coolant Reservoir Bolt (1) - Install and tighten - Fastener Specifications
Air Cleaner Lower Housing (1) - Install
Air Cleaner Nut (1) - Install and tighten - Fastener Specifications
Accessory Wiring Junction Block (2) - Install
- Engine Wiring Harness Fuse Block Bracket Bolt (1) - Install and tighten - Fastener Specifications
Electrical Connector (1) @Air Cleaner Lower Housing - Install
- Install all retainers to the air cleaner lower housing.
Air Cleaner Upper Housing (2) - Install
- Air Cleaner Housing Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Connect the mass airflow sensor electrical connector.
Intake Air Duct (2) - Install
- Intake Air Duct Retainer (1) - Install

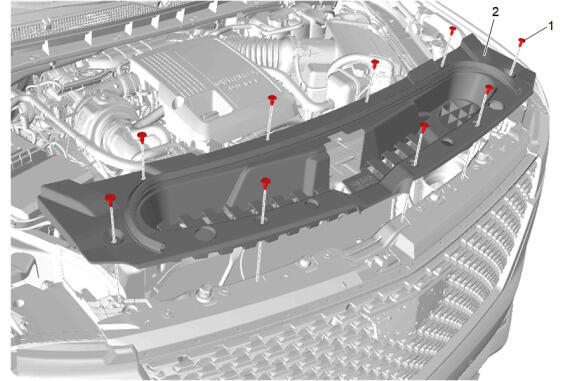

Intake Air Splash Shield (2) - Install
- Intake Air Baffle Retainer (1) - Install [9x]
Air Cleaner Outlet Front Duct (2) - Install
- Air Cleaner Outlet Duct Clamp (1) - Tighten [2x] - Fastener Specifications
Remove the oil fill cap.
- Engage the intake manifold cover (2) into position.
- Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications
- Install the oil fill cap.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Ensure the proper routing of the accessory drive primary belt.
