Installation Procedure

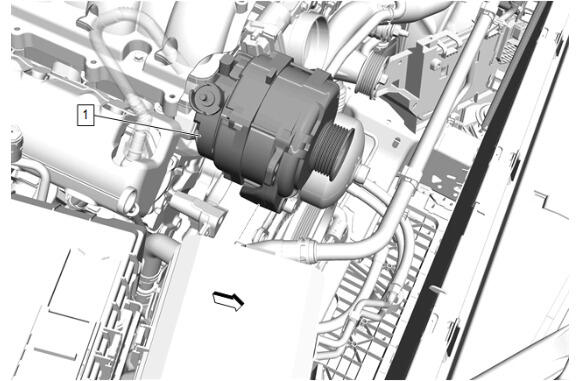

Generator (1) - Install
- CAUTION:NOTE:

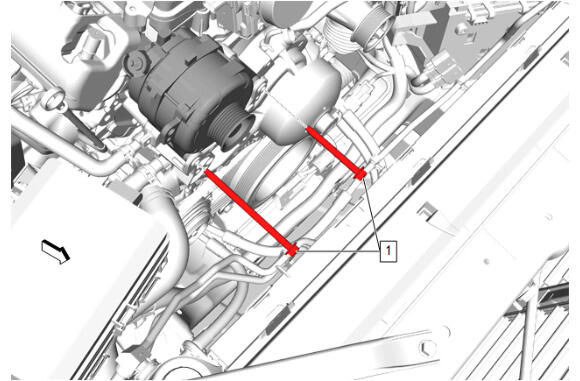

The long generator bolt must be installed from the opening in the fan shroud.
Generator Bolt (1) - Install and tighten [2x] - Fastener Specifications

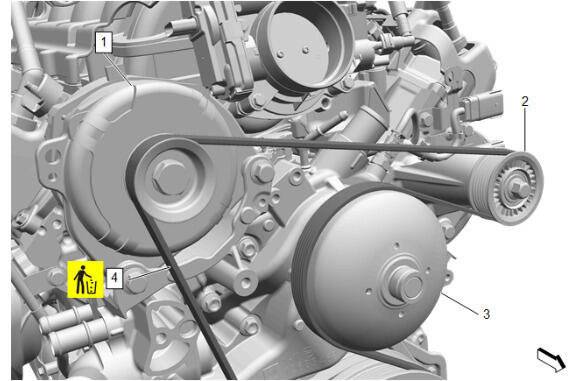

Position the accessory drive primary belt (4) on the belt idler pulley (2), fan and water pump pulley (3) and generator (1).

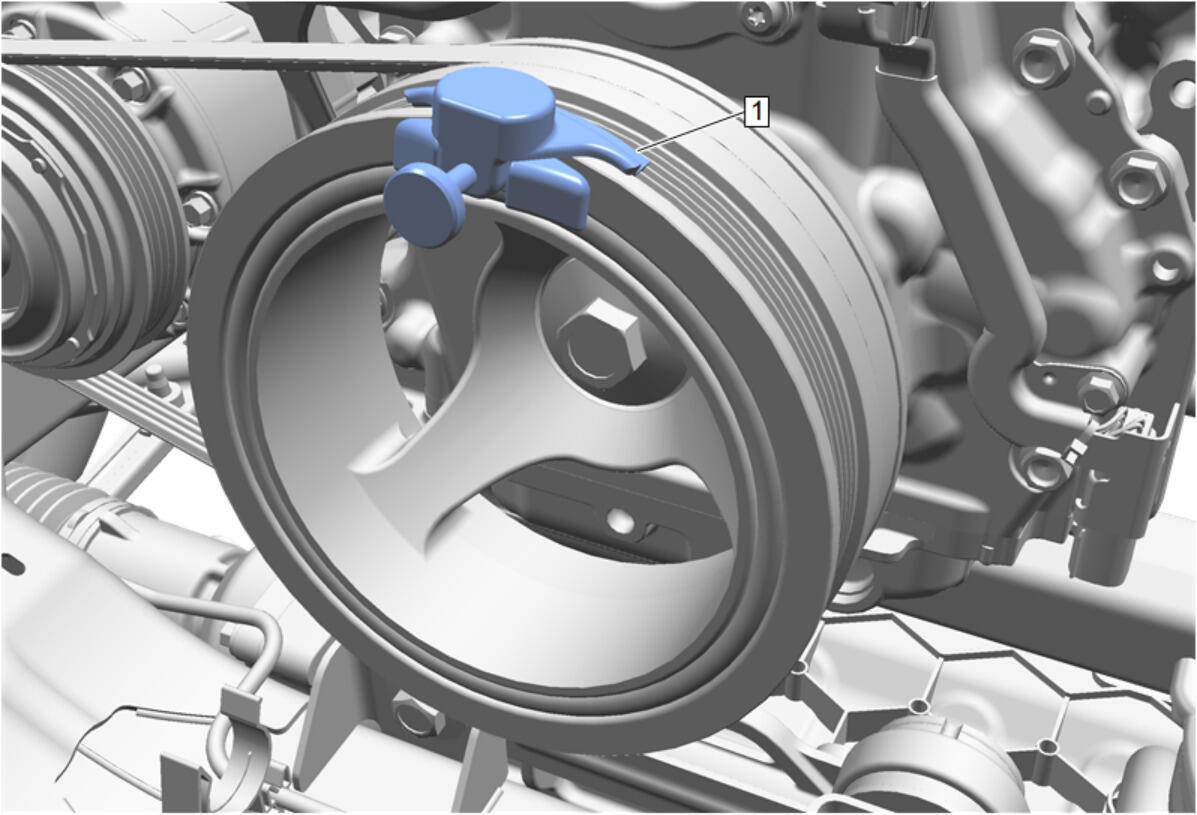

Install EN-51767-2 Universal Stretchy Belt Installer (1) onto the crankshaft balancer.

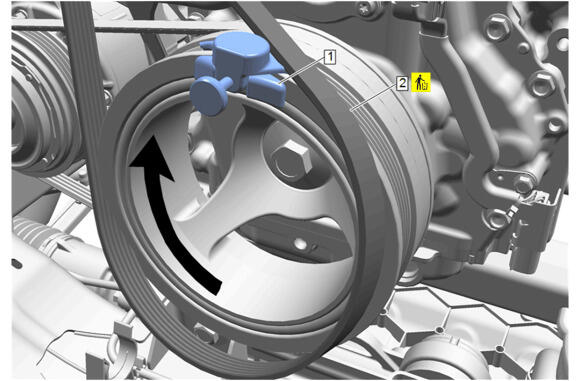

Position the accessory drive primary belt (2) on the crankshaft balancer.
- Slowly rotate the crankshaft balancer in a clockwise direction until the accessory drive primary belt (2) fully seats on the crankshaft balancer.
- Remove EN-51767-2 Universal Stretchy Belt Installer (1) from the crankshaft balancer.

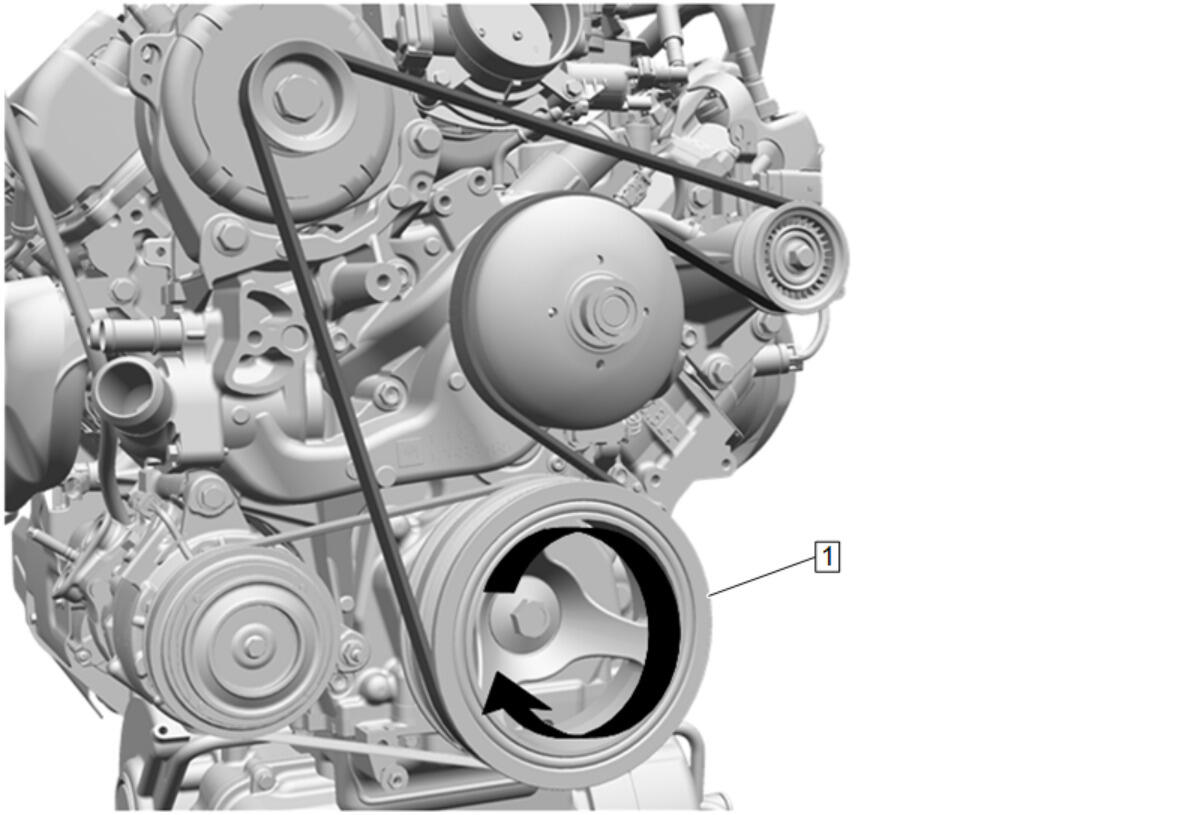

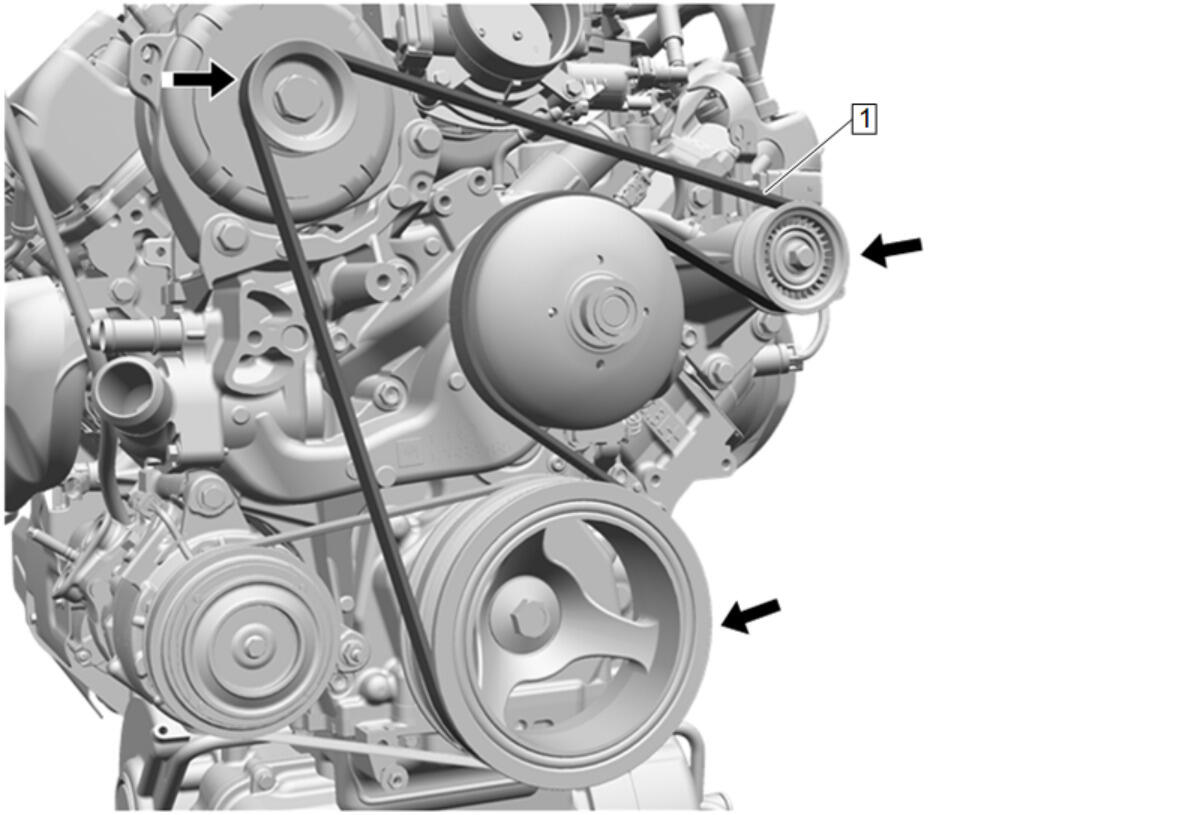

Inspect the accessory drive primary belt (1) for proper installation and alignment.
Rotate the crankshaft balancer (1) and additional 360 degrees to ensure proper accessory drive primary belt installation.

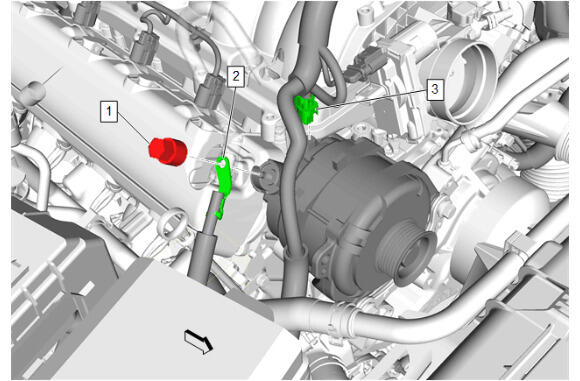

Starter Solenoid Cable (2) - Install
- Battery Positive Cable Nut (1) - Install and tighten - Fastener Specifications
- Electrical Connector (3) - Connect

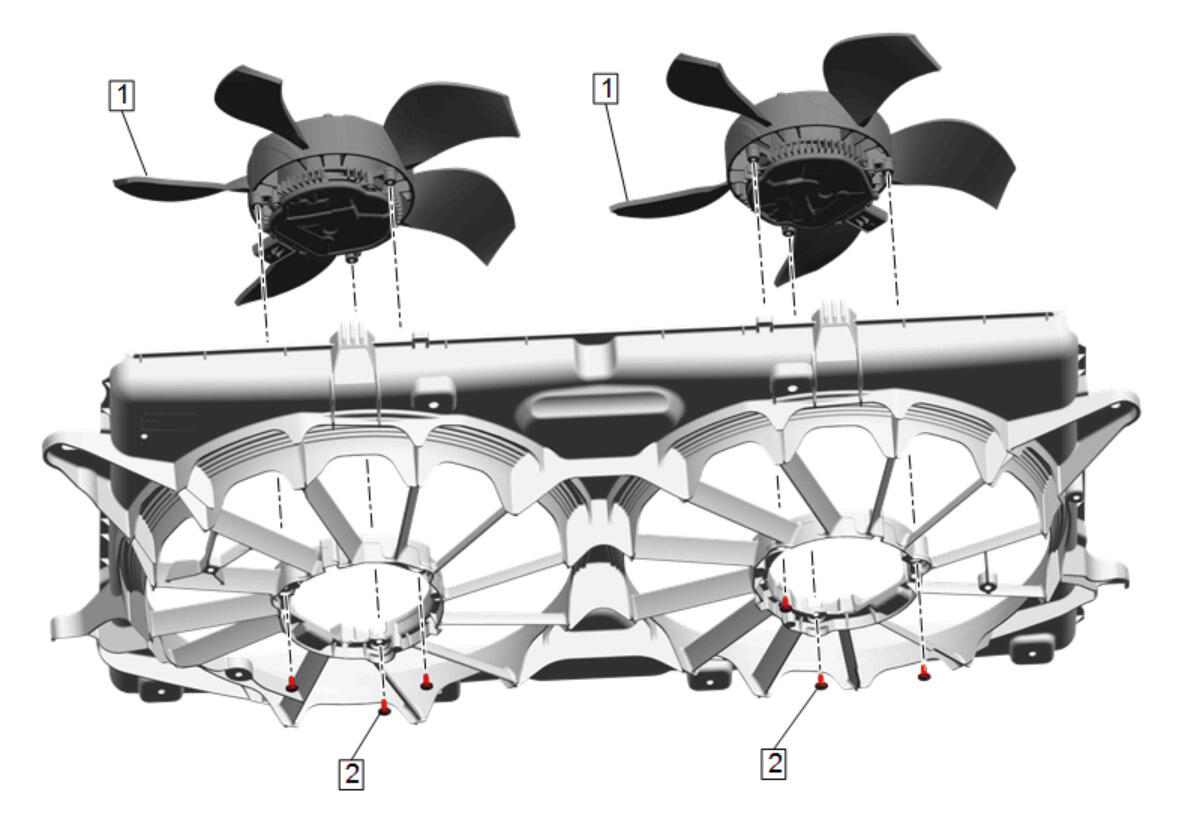

Position the right side fan blade/motor assembly into the fan shroud mounting location.
- Fan Blade Bolt-Right Side (2) - Install and tighten [3x] - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.
Connect the right side fan motor assembly electrical connector (1).

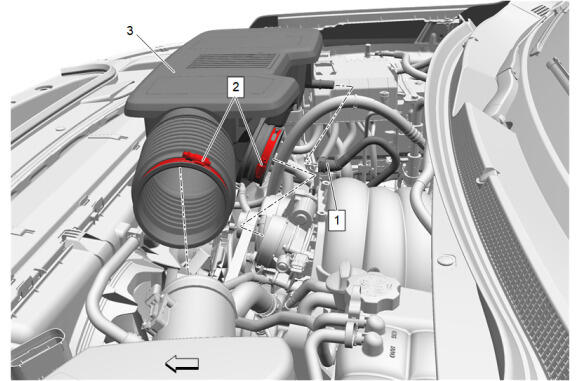

Air Cleaner Outlet Duct (3) - Install
- Air Cleaner Outlet Duct Clamp (2) - Tighten [2x]

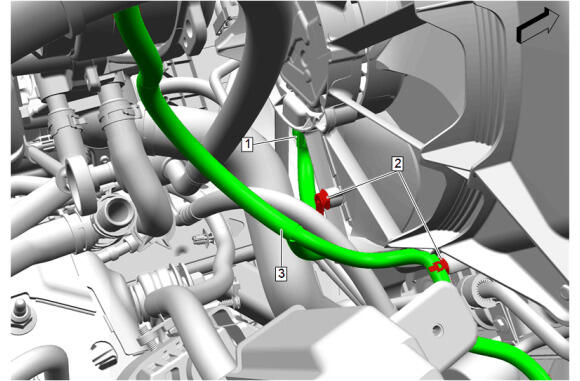

- Positive Crankcase Ventilation Fresh Air Tube (1) - Connect - Plastic Collar Quick Connect Fitting Service

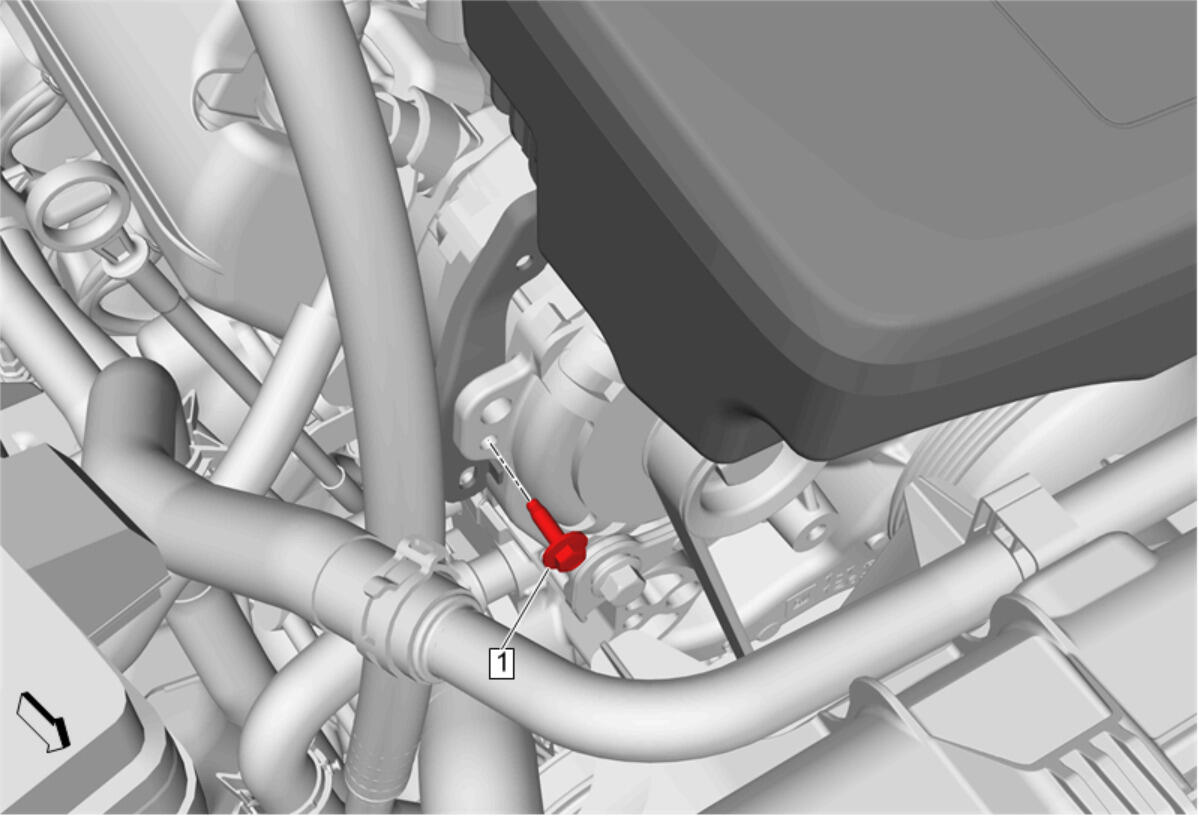

Air Cleaner Outlet Duct Bracket Bolt (1) - Install and tighten - Fastener Specifications
- Install the engine wiring harness to the air cleaner outlet duct bracket.
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
