Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

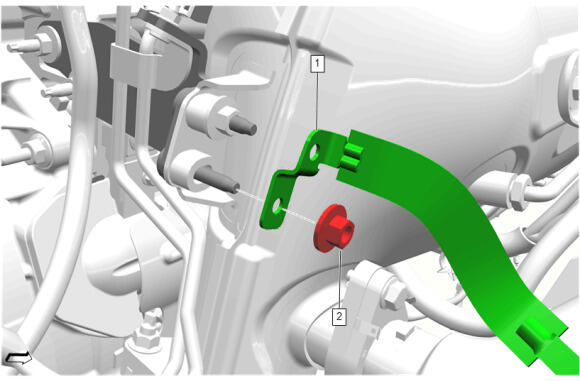

Battery Negative Cable Extension Cable Strap (1) @Catalytic Converter Brace Bracket - Install

CAUTION:

Catalytic Converter Brace Bracket Nut (2) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

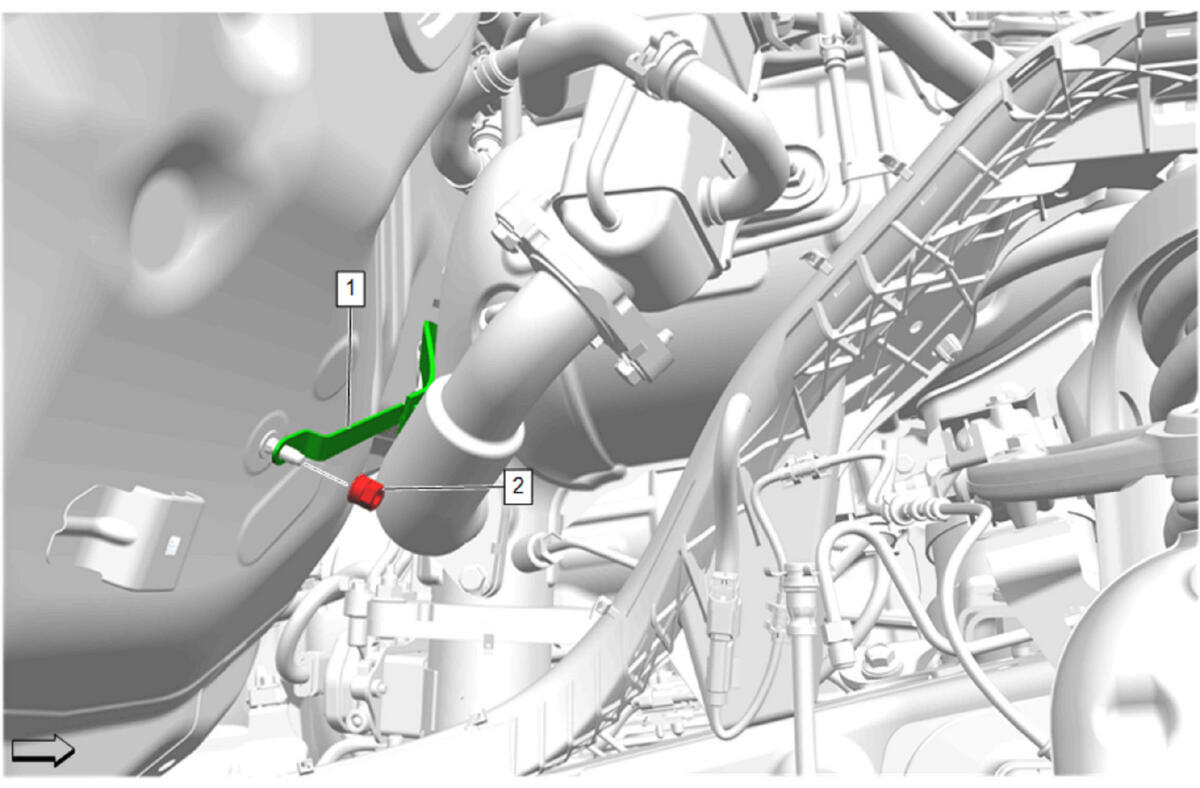

Battery Negative Cable Extension Cable Strap (1) - Install
Battery Negative Cable Ground Nut (2) - Install and tighten - Fastener Specifications
Front Wheelhouse Liner-Right Side (3) - Install - Front Wheelhouse Liner Replacement
