Installation Procedure

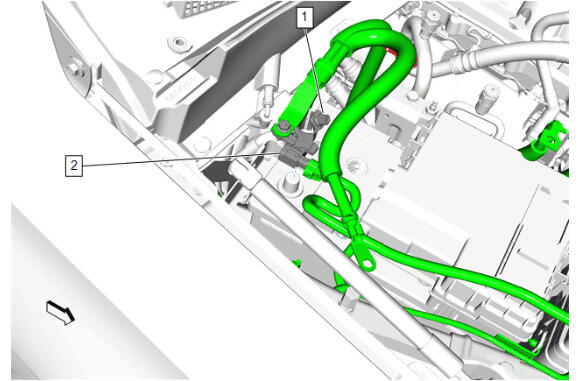

  1. GM5568759Courtesy of GENERAL MOTORS COMPANY

    Battery Monitor Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Negative Post Clamp Nut (1) - Install and tighten - Fastener Specifications
