Installation Procedure

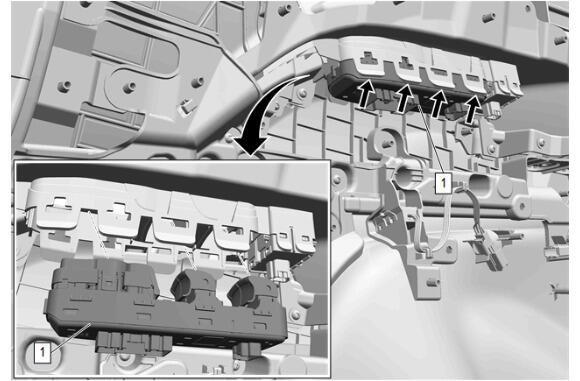

  1. GM5614508Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Control Switch (1) - Install

  2. Connect the electrical connectors.
  3. Install the front side door trim. Front Side Door Trim Removal and Installation
