Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

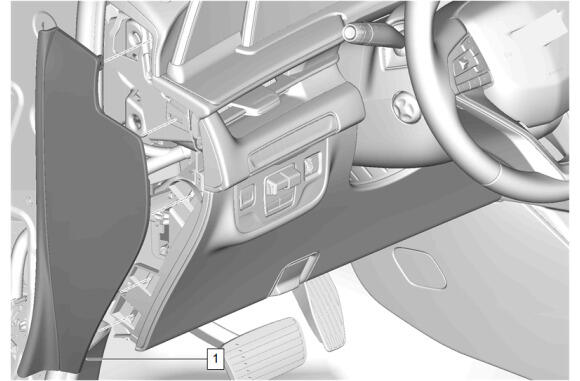

Pull away a segment of the front side door weather-strip to clear the edge of the instrument panel fuse block access hole cover (1).
Using a flat-bladed plastic trim tool, release the retaining clips.
Instrument Panel Fuse Block Access Hole Cover(1) - Remove
Courtesy of GENERAL MOTORS COMPANY

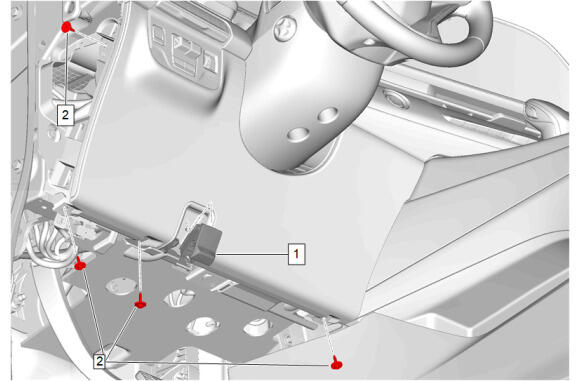

Hood Primary Latch Release Cable Handle(1) - Release
Instrument Panel Knee Bolster Bolt(2) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

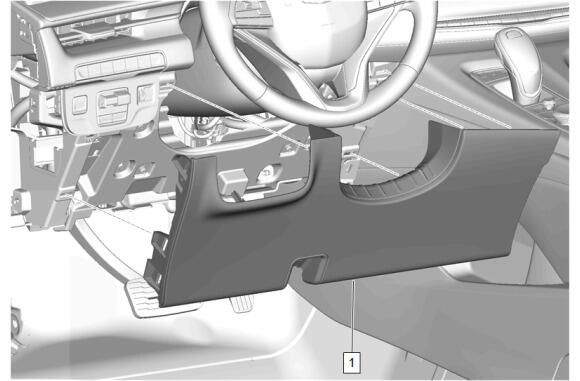

Instrument Panel Knee Bolster(1) - Remove
Courtesy of GENERAL MOTORS COMPANY

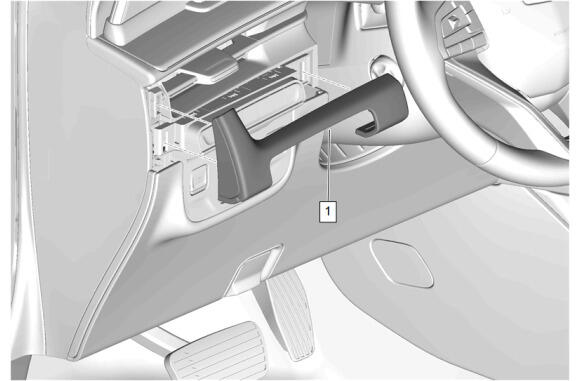

Using a flat-bladed plastic trim tool, release the retaining clips.
Instrument Panel Trim Pad(1) - Remove
Courtesy of GENERAL MOTORS COMPANY

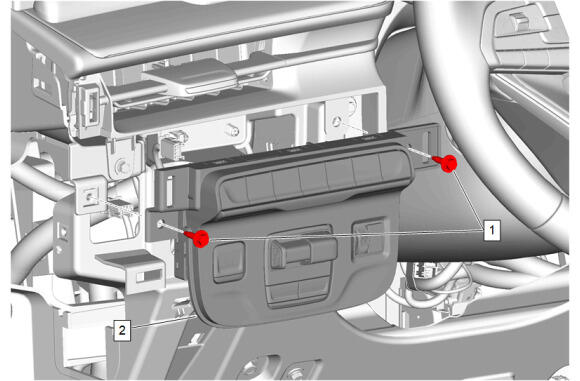

Instrument Panel Switch Trim Plate Bolt(1) - Remove [2x]
Disconnect the electrical connectors.
Instrument Panel Switch Trim Plate(2) - Remove
Courtesy of GENERAL MOTORS COMPANY

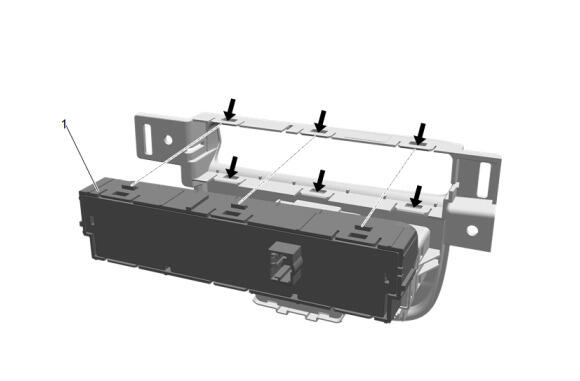

Release the retaining tabs.
Ride Control Switch(1) - Remove
