Installation Procedure
Vehicle Dynamic Sensor (1) - Install
- Vehicle Dynamic Sensor Nut (2) - Install and tighten [2x] - Fastener Specifications
- Connect the electrical connector. (3)

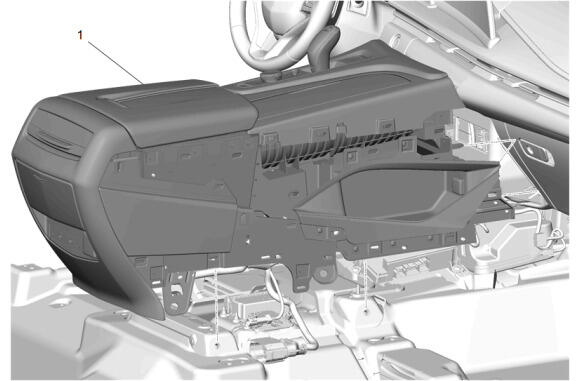

With the aid of an assistant, install the front floor console (1) into the vehicle.
- Connect and position the wiring harness.
- Front Floor Console (1) - Install

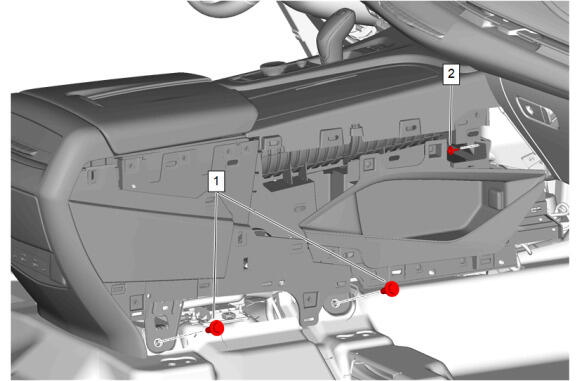

Front Floor Console Retainer Bolt (2) - Install and tighten - Fastener Specifications

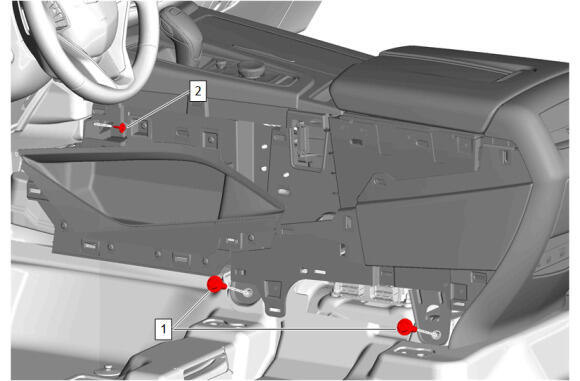

- Front Floor Console Bolt (1) - Install and tighten [2x] - Fastener Specifications

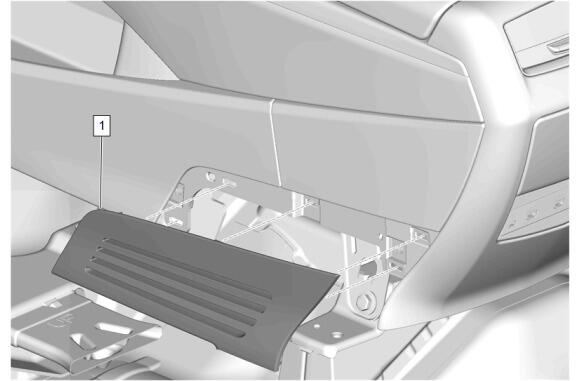

Front Floor Console Extension Panel (1) - Install
Front Floor Console Applique (1) - Install
Front Floor Console Retainer Bolt (2) - Install and tighten - Fastener Specifications
- Front Floor Console Bolt (1) - Install and tighten [2x] - Fastener Specifications

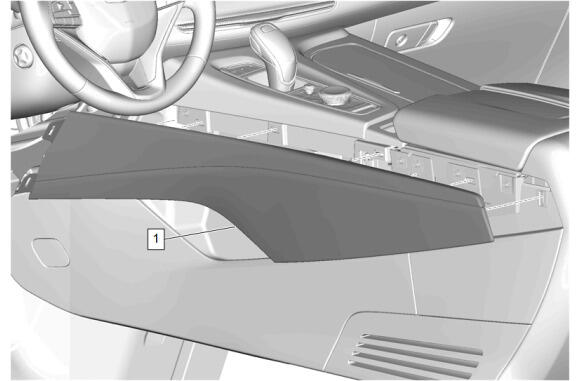

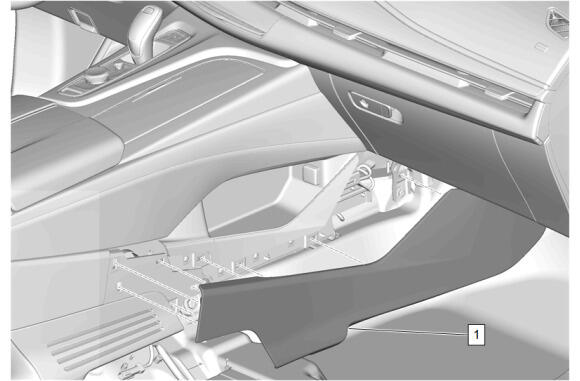

Front Floor Console Side Trim Panel (1) - Install [2x]

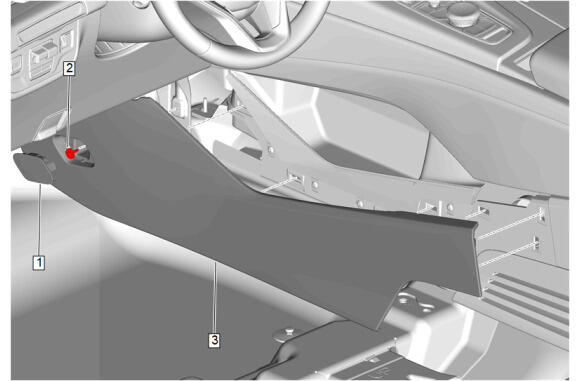

Front Floor Console Extension Panel (3) - Install
- Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
- Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install

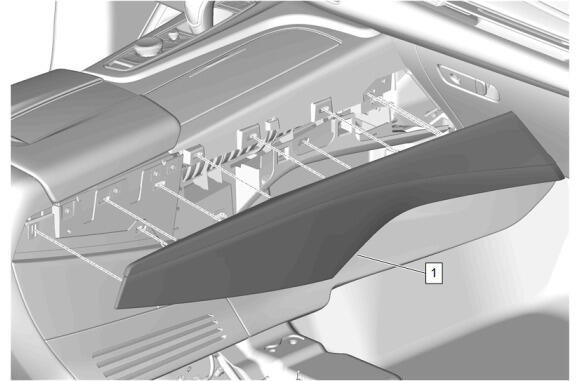

Front Floor Console Applique (1) - Install
Instrument Panel Knee Bolster (1) - Install
Instrument Panel Knee Bolster Bolt (2) - Install and tighten [4x] - Fastener Specifications
- Hood Primary Latch Release Cable Handle (1) - Install
Instrument Panel Fuse Block Access Hole Cover (1) - Install
- Replace the front side door weather-strip to cover the edge of the instrument panel fuse block access hole cover (1).
- NOTE:
Left side shown, right side similar.
Front Seat- Left Side and Right Side (2) - Install [2x] - Front Seat Removal and Installation
- Perform the Vehicle Dynamic Sensor Offset Calibration. Vehicle Dynamic Sensor Offset Calibration
Refer to Fastener Caution .
