Fastener Specifications

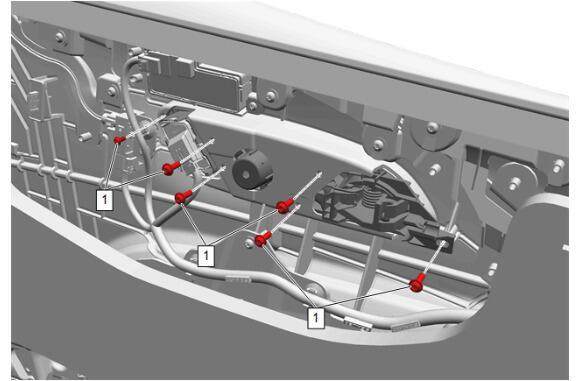

GM5618308Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Inside Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Inside Handle Bolt [6x] - - 2.5 N.m (22 lb in) Front Side Door Inside Handle Replacement

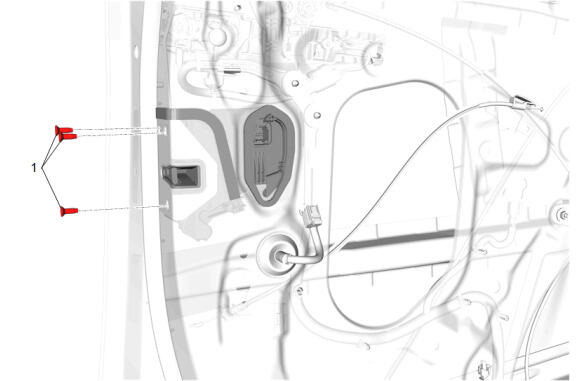

GM5608690Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Bolt [3x] - - 9 N.m (80 lb in) Front Side Door Latch Replacement (- NWM)Front Side Door Latch Replacement (NWM)

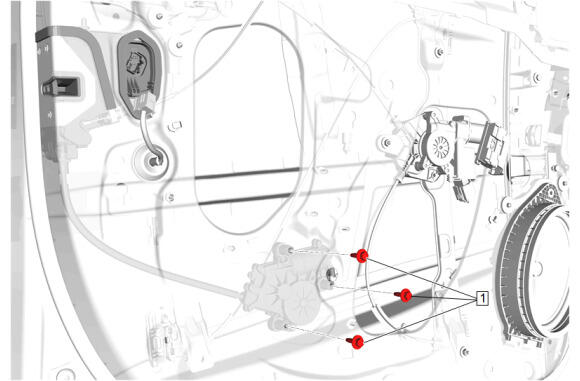

GM5628338Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Latch Actuator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Actuator Bolt [3x] - - 11 N.m (97 lb in) Front Side Door Latch Replacement (- NWM)Front Side Door Latch Replacement (NWM)
GM5504186Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Front Side Door Latch Striker Replacement

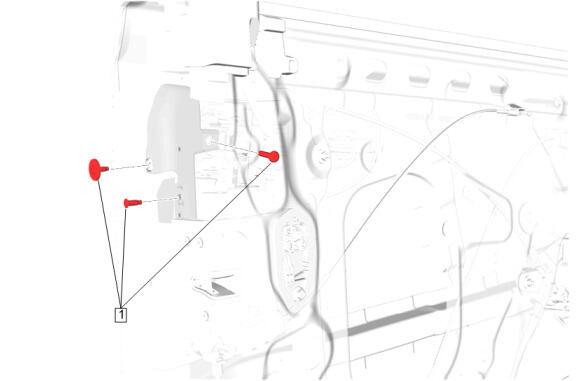

GM5668889Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Lock Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Lock Cover Bolt [3x] - - 2.2 N.m (19 lb in) Front Side Door Lock Cover Replacement
GM5608381Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Outside Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Bracket Bolt - - 4.7 N.m (42 lb in) Front Side Door Outside Handle Bracket Replacement (- NWM)Front Side Door Outside Handle Bracket Replacement (NWM)

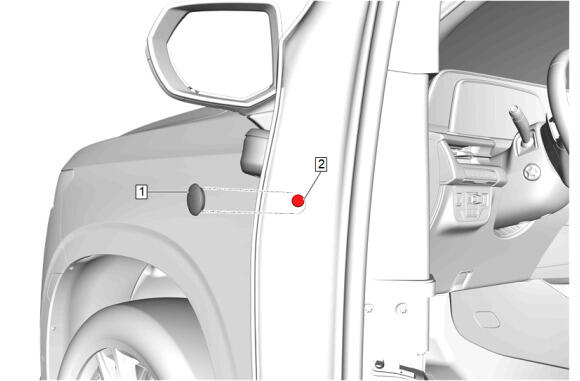

GM5608331Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Front Side Door Outside Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Bracket Rear Bolt - - 4.7 N.m (42 lb in) Front Side Door Outside Handle Bracket Replacement (- NWM)Front Side Door Outside Handle Bracket Replacement (NWM)

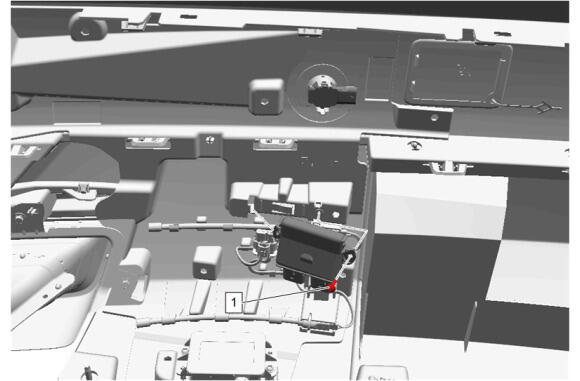

GM5695101Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Closure Hands Free Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Closure Hands Free Module Bolt - - 2.5 N.m (22 lb in) Rear Closure Hands Free Module Replacement

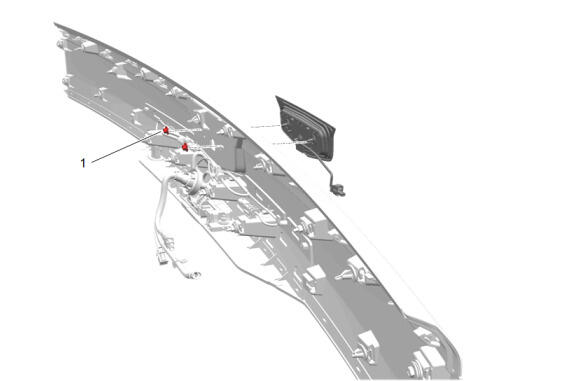

GM5992496Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Closure Outside Handle Pushbutton

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Closure Center Applique Nut [2x] - - 4.7 N.m (42 lb in) Rear Closure Outside Handle Pushbutton Replacement

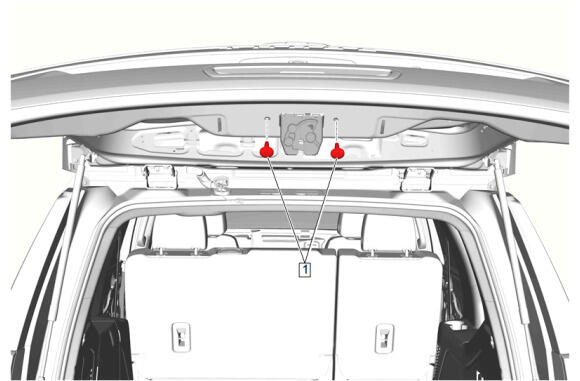

GM5522794Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Compartment Lid Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Bolt [2x] - - 22 N.m (16 lb ft) Liftgate Latch Replacement

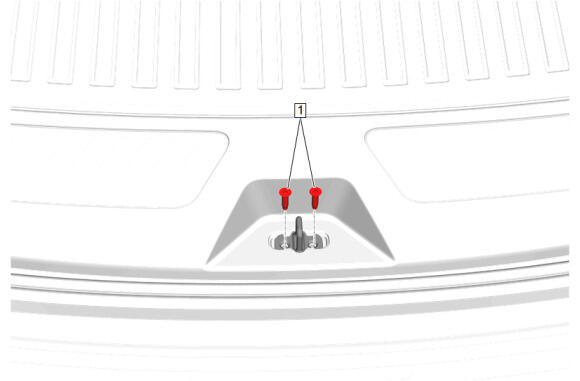

GM5521065Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Compartment Lid Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Liftgate Latch Striker Replacement

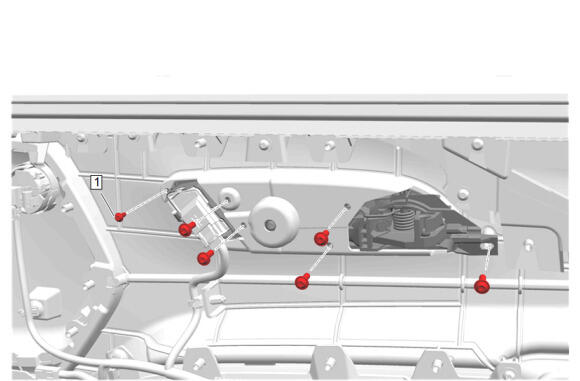

GM5909056Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Side Door Inside Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Inside Handle Bolt [6x] - - 2.5 N.m (22 lb in) Rear Side Door Inside Handle Replacement

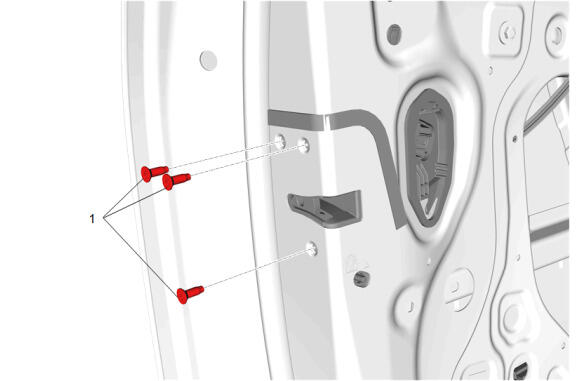

GM5628438Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Bolt [3x] - - 9 N.m (80 lb in) Rear Side Door Latch Replacement
GM5628338Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Side Door Latch Actuator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Actuator Bolt [3x] - - 11 N.m (97 lb in) Rear Side Door Latch Replacement

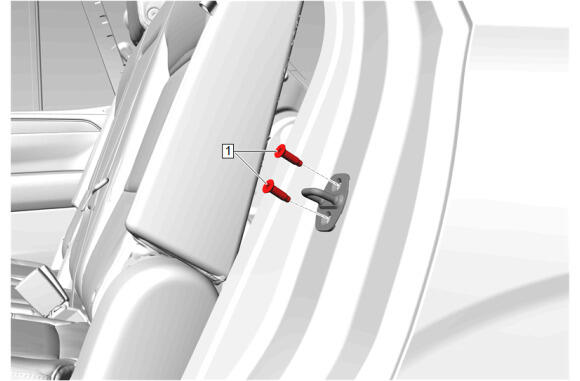

GM5521971Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Side Door Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Rear Side Door Latch Striker Replacement
GM5521952Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Side Door Outside Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Bracket Bolt - - 4.7 N.m (42 lb in) Rear Side Door Outside Handle Bracket Replacement

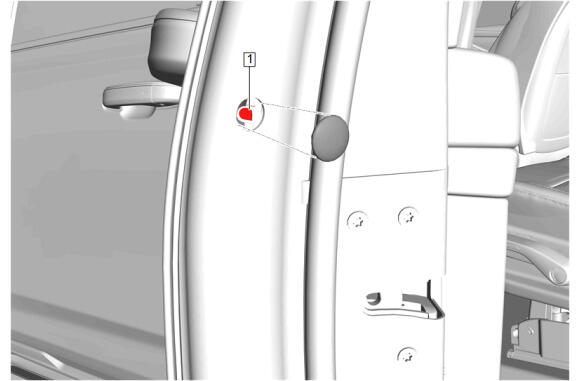

GM5630569Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Rear Side Door Outside Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Bracket Rear Bolt - - 4.7 N.m (42 lb in) Rear Side Door Outside Handle Bracket Replacement
