Installation Procedure

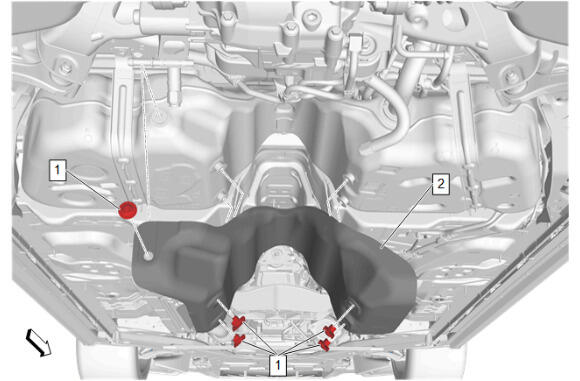

  1. GM5835370Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Shield (2) - Install

  2. Fuel Tank Shield Retainer (1) - Install [5x]

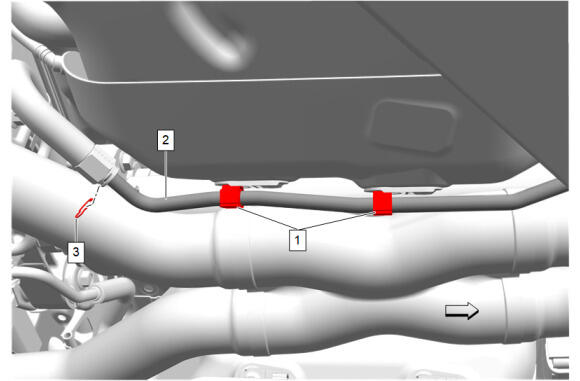

  3. GM5865268Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Pipe Clip@Fuel Tank Shield Retainer- Left Side and Right Side (1) - Install [4x]

  4. Propeller Shaft - Install - Propeller Shaft Replacement (without LT4) , or Propeller Shaft Replacement (with LT4, MJK) , or Propeller Shaft Replacement (with LT4, MHX) , or Propeller Shaft Replacement (AWD)
