Installation Procedure

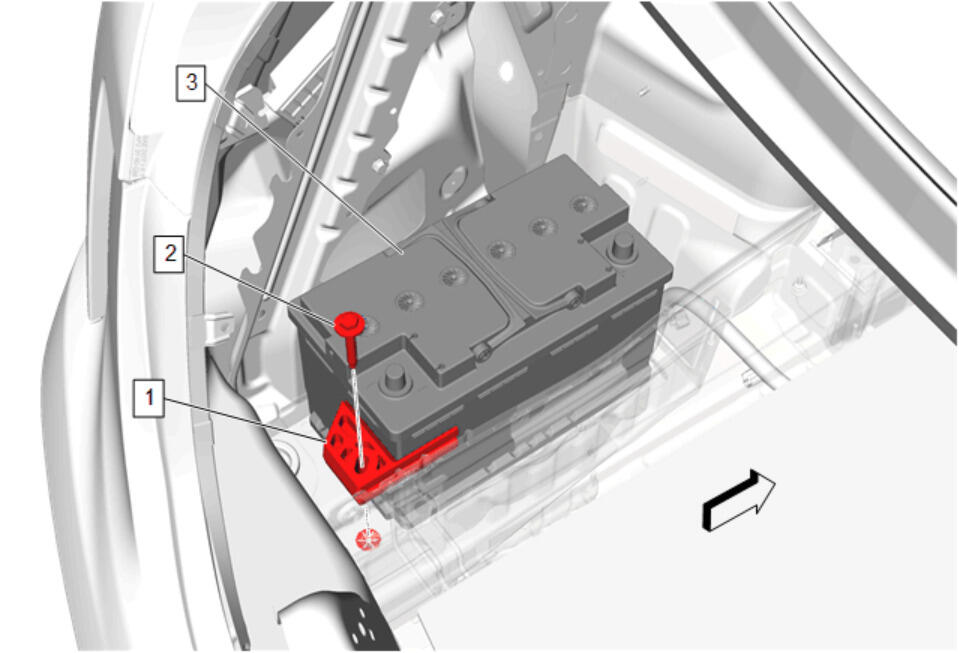

  1. GM5316673Courtesy of GENERAL MOTORS COMPANY

    Battery (3) - Install

  2. Battery Hold Down Retainer (1) - Install
    3. CAUTION:

    Refer to Fastener Caution

  3. Battery Hold Down Retainer Bolt (2) - Install and tighten 22 N.m (16 lb ft)

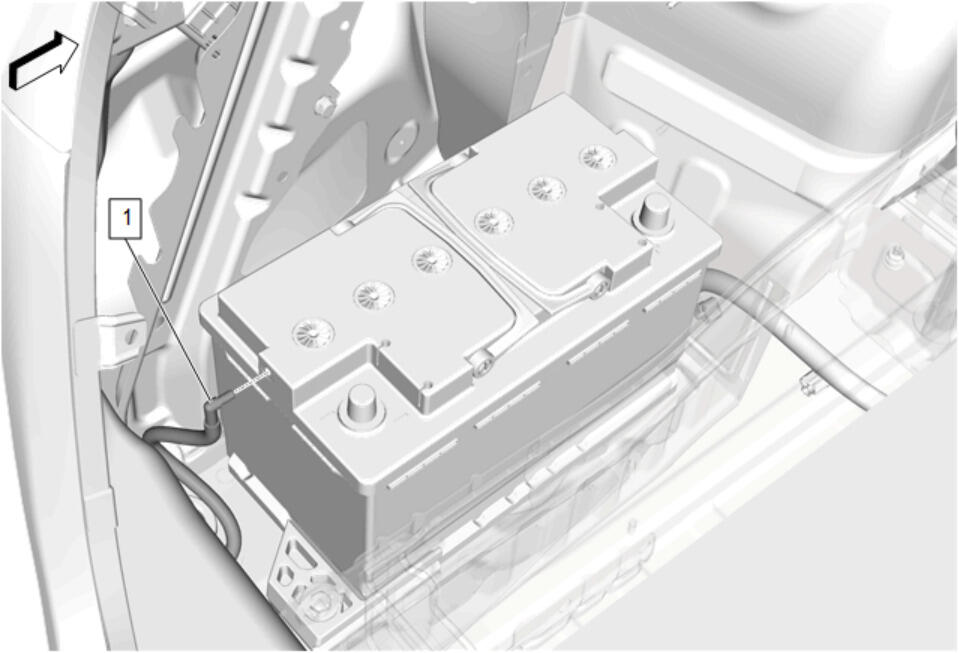

  4. GM5316696Courtesy of GENERAL MOTORS COMPANY

    Battery Vent Hose (1) - Install

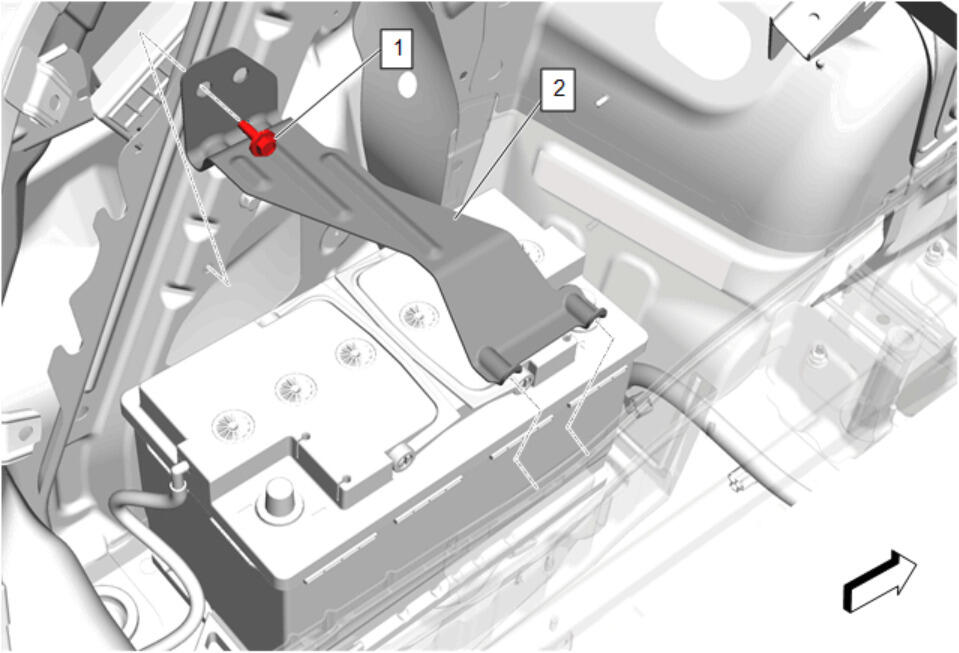

  5. GM5316622Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (2) - Install

  6. Battery Hold Down Strap Bolt (1) - Install and tighten 9 N.m (80 lb in)
  7. GM5310916Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Fuse Block (2) - Install - Battery Distribution Fuse Block Replacement

  8. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
